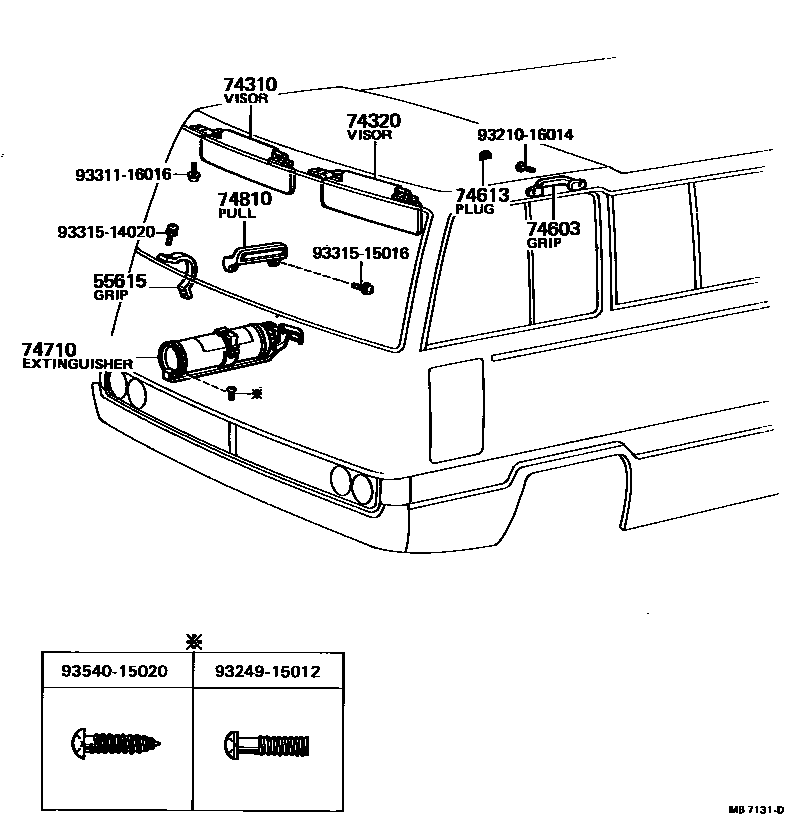

Toyota COASTER — ARMREST & VISOR

55615GRIP, ASSIST

main55615-90740iBB10,RB1#197708-198204

74310VISOR ASSY, RH

main74340-90740iBB10,RB1#..RHD..GEN197708-198204

main74340-90742iBB10,RB11,13..ARL197708-198204

74320VISOR ASSY, LH

main74340-90741iBB10,RB1#..LHD197708-198204

main74340-90743iBB10,RB11,13..ARL197708-198204

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-20010-05iBB10,RB1#197708-198204

BEIGE,BEIGE

sub74603-20010¥1,480

sub74610-20030¥1,650

sub74617-14010¥120

74613PLUG, ASSIST GRIP

main74617-12020-05iBB10,RB1#197708-198204

BEIGE,BEIGE

sub74617-12020¥240

sub74617-12010¥510

74710EXTINGUISHER ASSY

main74710-90508iBB10,RB1#197708-197911

main74710-90742iBB10,RB1#..LHD197911-198204

main74710-90744iBB10,RB1#..RHD197911-198204

74810PULL ASSY, DOOR, INSIDE

main69151-95A00iBB10,RB1#¥640197708-198204

sub69151-95600¥950

9321016014

main93210-16014¥120

9324915012

main93249-15012¥150

9331116016

main93311-16016¥120

9331514020

main93315-14020

9331515016

main93315-15016¥130

9354015020

main93540-15020¥100

13 parts on this diagram · 1 diagram in section
