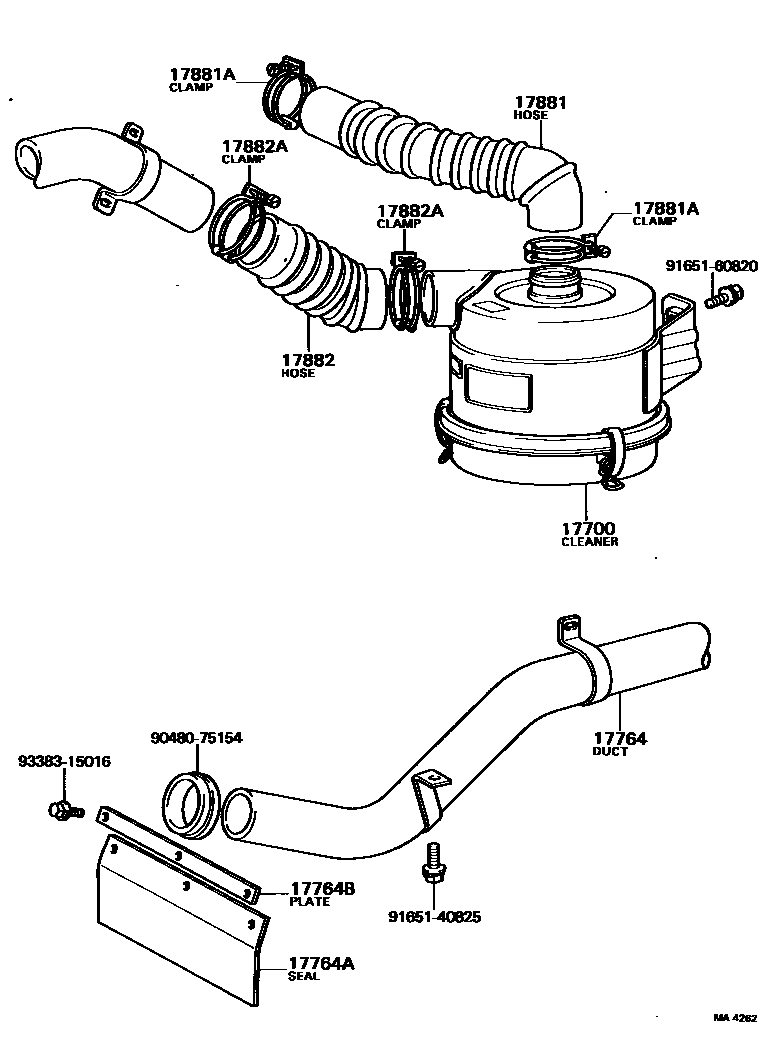

Toyota COASTER — AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0006 1

17700CLEANER ASSY, AIR

main17700-35070i22R..RB13¥31,300198008-198204

main17700-38070i20R..RB11¥31,300197708-197909

sub17700-38071

main17700-38071i20R..RB11197909-198008

main17700-38080i20R,22R..RB11,13197708-198204

OIL BATH

sub17700-38081

main17700-44281i5R..RB10197708-197911

main17700-44291i5R..RB10¥60,800197708-197911

OIL BATH

sub17700-56151¥70,200

main17700-56141i2B..BB10¥30,500197708-197910

sub17700-56142¥30,500

main17700-56142i2B..BB10¥30,500197910-198204

main17700-56151i2B..BB10¥70,200197708-198204

OIL BATH

sub17700-56152

17764DUCT, AIR CLEANER

main58609-90500i20R,22R,5R..RB1#197708-198204

17764ASEAL, AIR CLEANER DUCT

main58395-90740i2B..BB10197708-198204

17764BPLATE, AIR CLEANER SEALD

main58396-90740i20R,5R..RB1#197708-197807

17881HOSE, AIR CLEANER, NO.1

main17881-38020i20R,22R..RB11,13¥9,200197708-198204

main17881-44020i5R..RB10197708-197911

main17881-56021i2B..BB10¥7,600197708-198204

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10670i2B..BB10¥370197708-198204

ID=67

main96111-10690i5R..RB10¥160197708-197911

ID=69

main96111-10750i5R..RB10¥190197708-198204

ID=75

17882HOSE, AIR CLEANER, NO.2

main17882-38040i20R..RB11¥4,690197708-198204

main17883-44010i5R..RB10197708-197911

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750i2B..BB10¥190197708-198204

ID=75

9048075154

main90480-75154

9165140825

main91651-40825¥200

9165160820

main91651-60820¥130

9338315016

main93383-15016¥90

12 parts on this diagram · 5 diagrams in section
