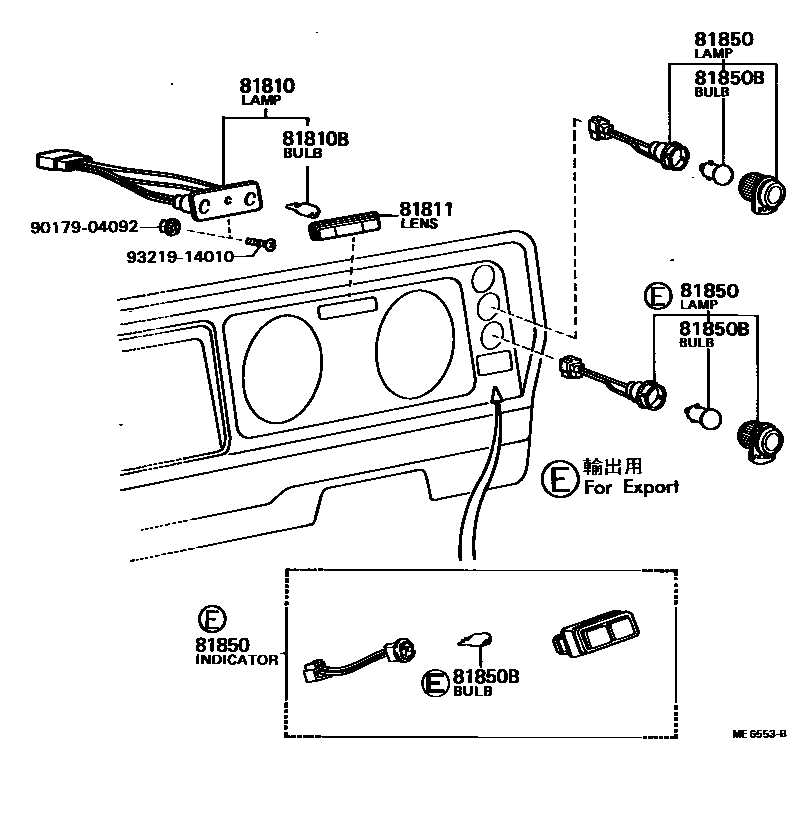

Toyota COASTER — INDICATOR

81810LAMP ASSY, TURN SIGNAL INDICATOR

main81810-10022iRB11,13;BB10,RB10..DLX,STD197708-198204

12V

main81810-36010iBB10..GEN197708-197905

24V

81810BBULB, TURN SIGNAL INDICATOR LAMP

main99132-12034×2iRB11,13;BB10,RB10..DLX,STD197708-198204

12V 3.4W

main99134-12030×2iBB10..GEN197708-197905

24V 3W

81811LENS, TURN SIGNAL INDICATOR LAMP

main55615-10010iBB10,RB1#197708-198204

81850LAMP ASSY, INDICATOR

main81850-36020iRB11,13..ARL;BB10..STD..ARL197708-198204

12V

main81850-36030iBB10..BC..ARL197905-198204

24V

main81850-36040iRB1#;BB10..DLX,STD197911-198204

12V,CTR DOOR INDICATOR

main81850-36050iBB10..21S,22S,25S,26S197911-198204

24V,CTR DOOR INDICATOR

main81850-36060iBB10..DLX,STD197911-198204

12V,SEDIMENT WARNING

main81850-36070iBB10..GEN,IRQ197911-198204

24V,SEDIMENT WARNING

81850BBULB, INDICATOR LAMP

main90981-16010×2iBB10..BC..ARL197905-198204

24V 3W,24V 3W

main99132-12034iRB1#;BB10..DLX,STD197911-198204

12V 3.4W,12V 3.4W DOOR & CEDIMENT

main99134-12030iBB10..GEN,IRQ197911-198204

24V 3W,24V 3W,CTR DOOR INDICATOR

9017904092

main90179-04092

9321914010

main93219-14010

7 parts on this diagram · 1 diagram in section
