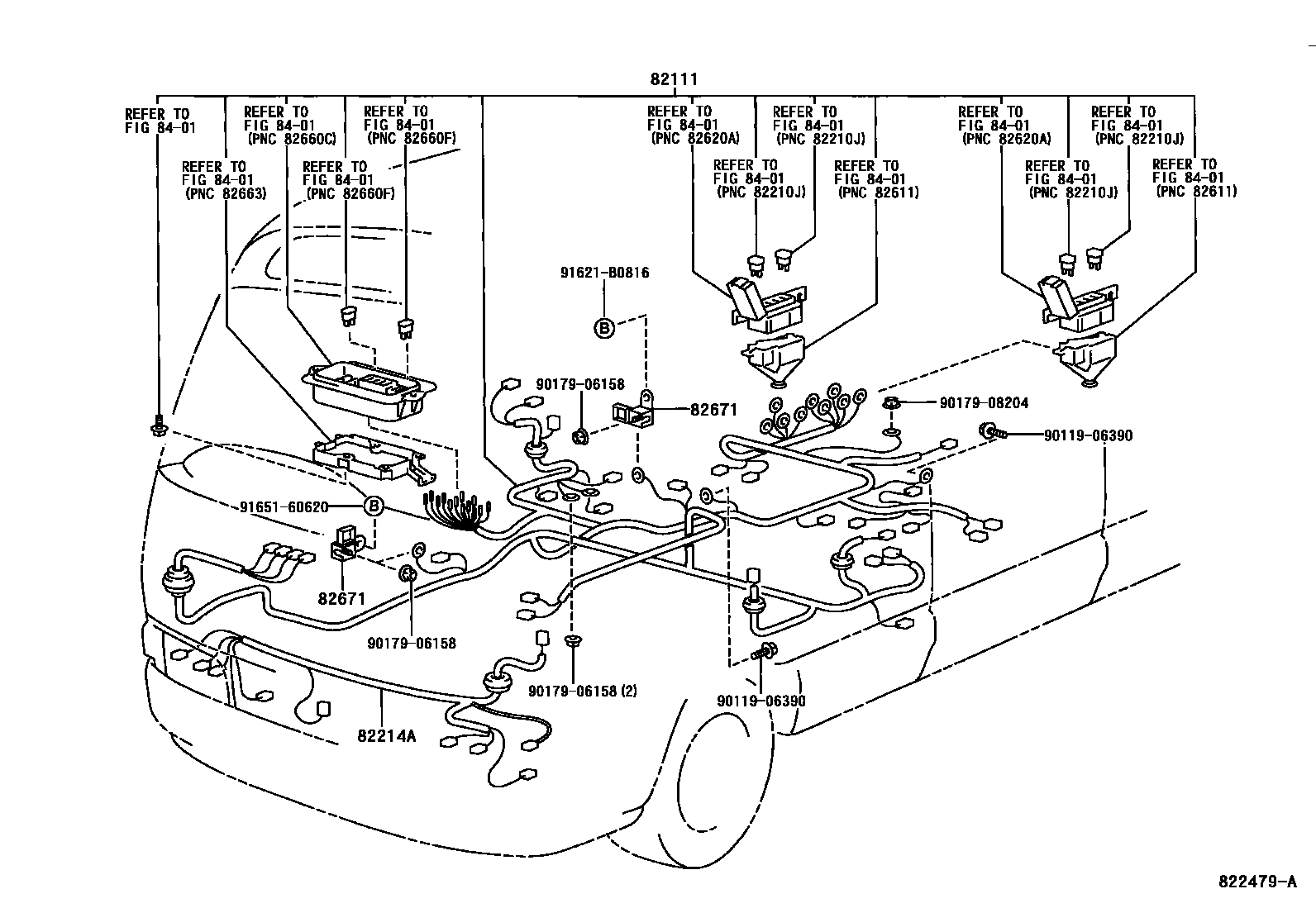

82111WIRE, ENGINE ROOM MAIN

main82111-0S010iTRB53..STD201108-201208

sub82111-0S011

main82111-0S011iTRB53..STD201209

main82111-0S020iTRB53..EX,LX201108-201208

sub82111-0S021

main82111-0S021iTRB53..EX,LX201209

main82111-0S030iXZB53..STD201108-201208

sub82111-0S031

main82111-0S031iXZB53..STD201209

main82111-0S040iXZB53..EX,LX201108-201208

sub82111-0S041

main82111-0S041iXZB53..EX,LX201209

main82111-36B50iBB54200411-200701

main82111-36B80iRZB54200305-200310

main82111-36B90iRZB54200305-200310

W(FOLDING DOOR AUTO)

main82111-36C00iRZB53200305-200310

main82111-36E80iXZB53..STD200701-201108

main82111-36E90iXZB53..EX,LX200701-201108

main82111-36F00iTRB53..STD200701-201108

main82111-36F10iTRB53..EX,LX200701-201108

main82111-3B020iBB54200310-200312

main82111-3B021iBB54200312-200411

main82111-3B030iBB53200310-200411

main82111-3B031iBB53200411-200701

main82115-36140iBB54200012-200109

main82115-36141iBB54200109-200310

main82115-36150iBB54200012-200109

W(FOLDING DOOR AUTO)

main82115-36151iBB54200109-200310

W(FOLDING DOOR AUTO)

main82115-36160iBB53200012-200109

main82115-36161iBB53200109-200310

main82115-36170iRZB54200012-200305

main82115-36171iRZB54200310-200312

main82115-36172iRZB54200312-200701

main82115-36180iRZB54200012-200305

W(FOLDING DOOR AUTO)

main82115-36190iRZB53200012-200305

main82115-36191iRZB53200310-200701

82214AWIRE, LAMP

main82214-0S010iTRB53,XZB53200808-201108

main82214-0S011iTRB53,XZB53201108-201208

sub82214-0S012

main82214-0S012iTRB53,XZB53201209

main82214-36170iRZB5#200012-200310

main82214-36171iRZB5#200310-200701

main82214-36180iBB54200012-200310

main82214-36190iBB53200012-200310

main82214-36210iBB5#200310-200701

main82214-36240iTRB53,XZB53200701-200808

82671BLOCK, JUNCTION

main82671-28010iRZB5#¥670200012-200411

main82671-36010iBB5#¥490200411-200701

8401

9011906390

main90119-06390¥70

9017906158

main90179-06158¥70

9017908204

main90179-08204¥140

91621B0816

main91621-B0816¥90

9165160620

main91651-60620¥80

9 parts on this diagram · 27 diagrams in section
