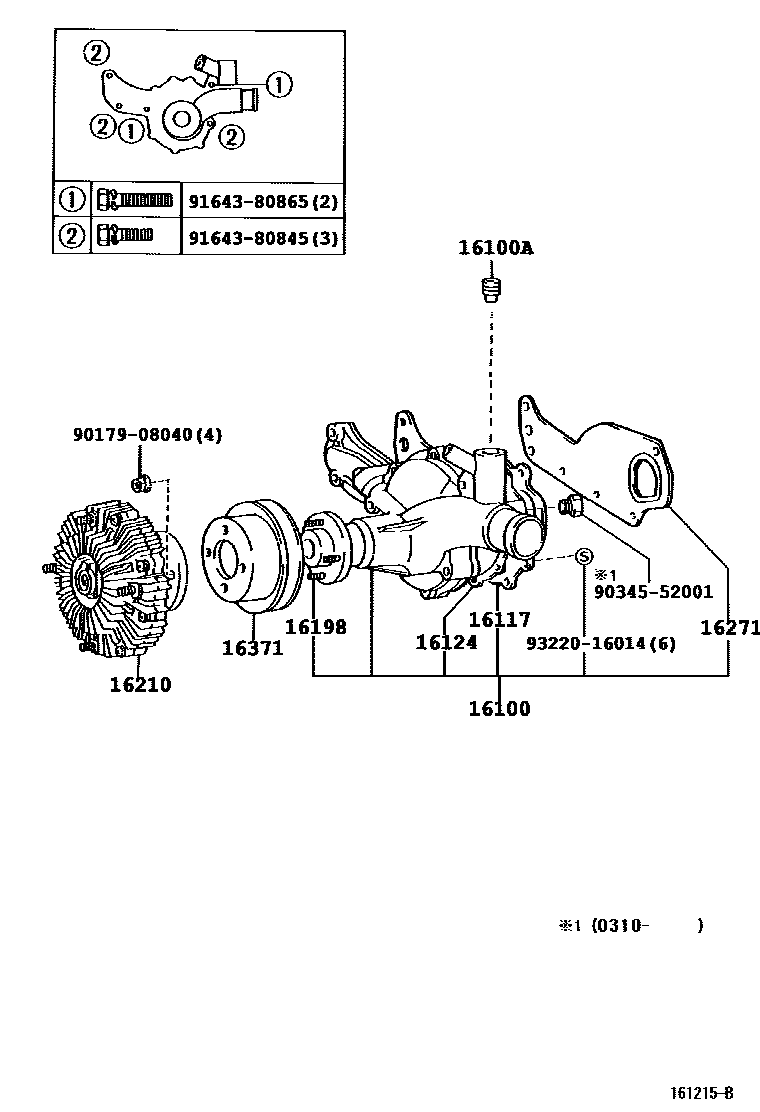

Toyota COASTER (CHINA) — WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-59187i15BF..BB5#¥11,600200012-200310

main16100-59187i15BFT..BB5#¥11,600200310-200701

main16100-78110iN04C..XZB53¥18,300200701-200903

sub16100-78111¥18,300

main16100-78111iN04C..XZB53¥18,300200903-200907

sub16100-78112¥18,300

main16100-78112iN04C..XZB53¥18,300200907-201011

sub16100-78170¥14,400

main16100-78170iN04C..XZB53¥14,400201011

sub16100-E0B60¥17,500

main16100-79255i3RZFE..RZB5#¥15,700200012-200310

sub16100-79445¥10,700

main16100-79445i3RZFE..RZB5#¥10,700200310-200701

main16100-79445i2TRFE..TRB53¥10,700200701

16100APLUG, WATER PUMP

main90345-54005i15BF..BB5#¥270200012-200310

16117PLATE, WATER PUMP

main16117-58010i15BFT..BB5#¥1,010200310-200701

main16117-58010i15BF..BB5#¥1,010200012-200310

16124GASKET, WATER PUMP COVER

main16124-58010i15BFT..BB5#¥650200310-200701

main16124-58010i15BF..BB5#¥650200012-200310

main16124-75030i2TRFE..TRB53¥550200701-201301

main16124-75030i3RZFE..RZB5#¥550200012-200310

main16124-75030i3RZFE..RZB5#¥550200310-200701

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i15BFT..BB5#¥230200310-200701

main16198-41170i15BF..BB5#¥230200012-200310

main92122-60818i3RZFE..RZB5#¥160200012-200310

main92122-80818i3RZFE..RZB5#¥90200310-200701

main92122-80818i2TRFE..TRB53¥90200701-201301

16210COUPLING ASSY, FLUID

main16210-58041i15BFT..BB5#¥31,700200310-200701

main16210-58041i15BF..BB5#¥31,700200012-200310

main16210-75060i3RZFE..RZB5#¥37,800200012-200310

main16210-75060i3RZFE..RZB5#¥37,800200310-200701

main16210-75120i2TRFE..TRB53200701

main16250-78190iN04C..XZB53¥64,800200701-201106

subS1625-01850¥38,000

mainS162501850iN04C..XZB53201106

16271GASKET, WATER PUMP

main16271-58010i15BF..BB5#¥990200012-200310

main16271-58010i15BFT..BB5#¥990200310-200701

16371PULLEY, FAN

main16308-78030iN04C..XZB53¥10,900200701-201106

subS1610-51140¥7,000

main16371-58040i15BF..BB5#¥4,000200012-200310

sub16371-58041¥3,330

main16371-58041i15BFT..BB5#¥3,330200310-200701

main16371-75030i3RZFE..RZB5#¥5,700200310-200701

main16371-75030i3RZFE..RZB5#¥5,700200012-200310

main16371-75040i2TRFE..TRB53¥3,460200701

mainS161051140iN04C..XZB53201106

sub16107-E0040¥7,000

9017908040

main90179-08040¥100

9034552001

main90345-52001¥230

9164380845

main91643-80845¥110

9164380865

main91643-80865¥110

9322016014

main93220-16014¥80

13 parts on this diagram · 4 diagrams in section
