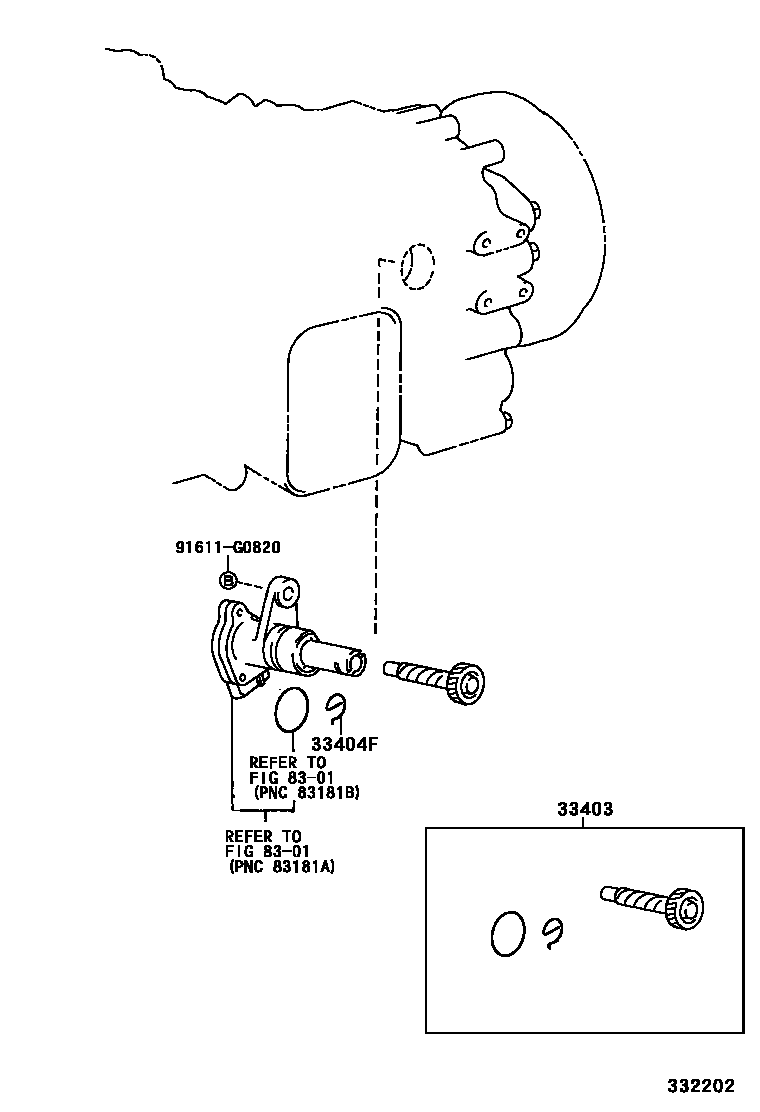

Toyota COASTER (CHINA) — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39435iXZB53¥1,420200701

N=21,MARK 21:6

main33482-39445iBB5#¥1,420200012-200310

N=22,MARK 22:6

main33482-39445iBB5#¥1,420200310-200701

N=22,MARK 22:6

main33482-39465iRZB5#,TRB53¥1,420200310

N=24,MARK 24:6

main33482-39465iRZB5#¥1,420200012-200310

N=24,MARK 24:6

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBB5#,RZB5#¥90200012-200310

main90468-12005iBB5#,RZB5#,TRB53,XZB53¥90200310

8301

91611G0820

main91611-G0820¥160

4 parts on this diagram · 1 diagram in section
