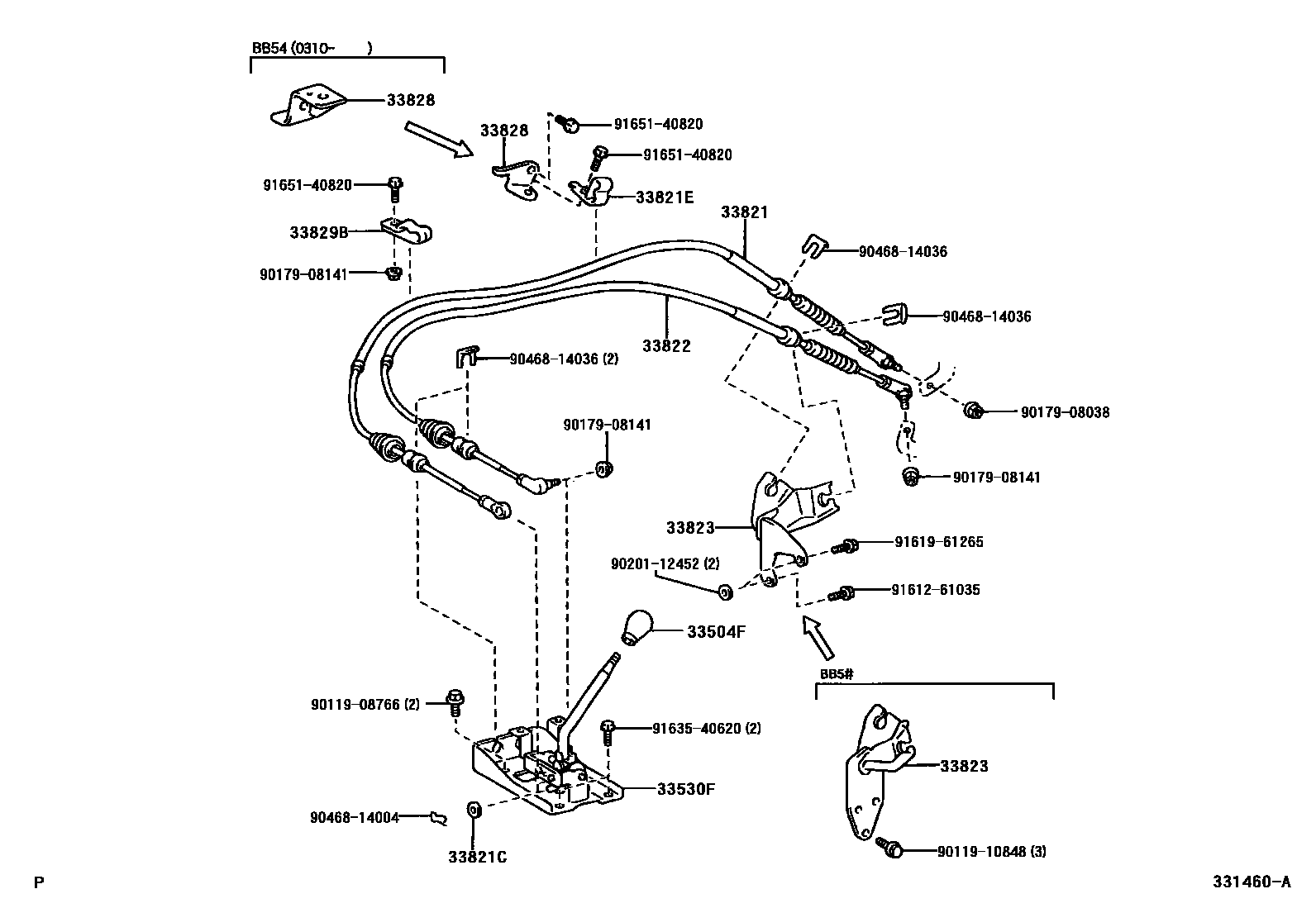

Toyota COASTER (CHINA) — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iBB5#,RZB5#,TRB53,XZB53200012-201403

BLACK,TRIM4#

sub33504-36051¥2,710

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-36200iBB5#,RZB5#¥3,850200012-200310

sub33530-36220

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-0S010iXZB53200708-201108

main33821-0S020iTRB53200708

main33821-0S030iXZB53201108

main33821-36100iRZB54¥13,400200012-200701

main33821-36110iBB54200012-200310

main33821-36120iBB53¥13,400200012-200701

main33821-36130iRZB53¥13,400200012-200701

main33821-36150iBB54¥13,400200310-200701

main33821-36180iXZB53200701-200708

sub33821-0S010

main33821-36190iTRB53200701-200708

sub33821-0S020

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08023iBB5#,RZB5#,TRB53,XZB53¥60200012-200310

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33829-0S010iXZB53201108

main33829-36111iXZB53¥280200310-201108

main90949-01A28iRZB53¥320200012-200701

main90949-01B24iBB53,RZB54¥320200012-200701

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-0S010iXZB53200708-201108

main33822-0S020iTRB53200708

main33822-0S030iXZB53201108

main33822-36080iRZB54¥13,400200012-200701

main33822-36090iBB54200012-200310

main33822-36100iBB53¥13,400200012-200701

main33822-36111iRZB53¥13,400200012-200701

main33822-36130iBB54¥13,400200310-200701

main33822-36160iXZB53200701-200708

sub33822-0S010

main33822-36170iTRB53200701-200708

sub33822-0S020

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33804-36030iBB5#¥4,950200012-200701

main33804-36050iRZB53¥4,210200012-200404

main33804-36080iRZB54¥5,700200012-200404

sub33804-36110¥3,480

main33804-36100iRZB53,TRB53200404

main33804-36110iRZB54¥3,480200404-200701

main33804-36150iXZB53200701-201108

main33804-36170iXZB53201108

33828BRACKET, TRANSMISSION CONTROL CABLE, NO.4

main33828-0S010iXZB53201108

main33828-0S020iTRB53201102

main33828-36060iBB53,RZB5#¥370200012-200701

main33828-36070iTRB53¥610200701-201102

main33828-36080iBB54,XZB53¥610200310-201108

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-37120iBB5#,RZB5#¥230200012-200310

9011908766

main90119-08766¥160

9011910848

main90119-10848¥100

9017908038

main90179-08038¥130

9017908141

main90179-08141¥120

9020112452

main90201-12452¥170

9046814004

main90468-14004¥80

9046814036

main90468-14036¥200

9161261035

main91612-61035¥100

9161961265

main91619-61265¥230

9163540620

main91635-40620¥60

9165140820

main91651-40820¥90

20 parts on this diagram · 2 diagrams in section
