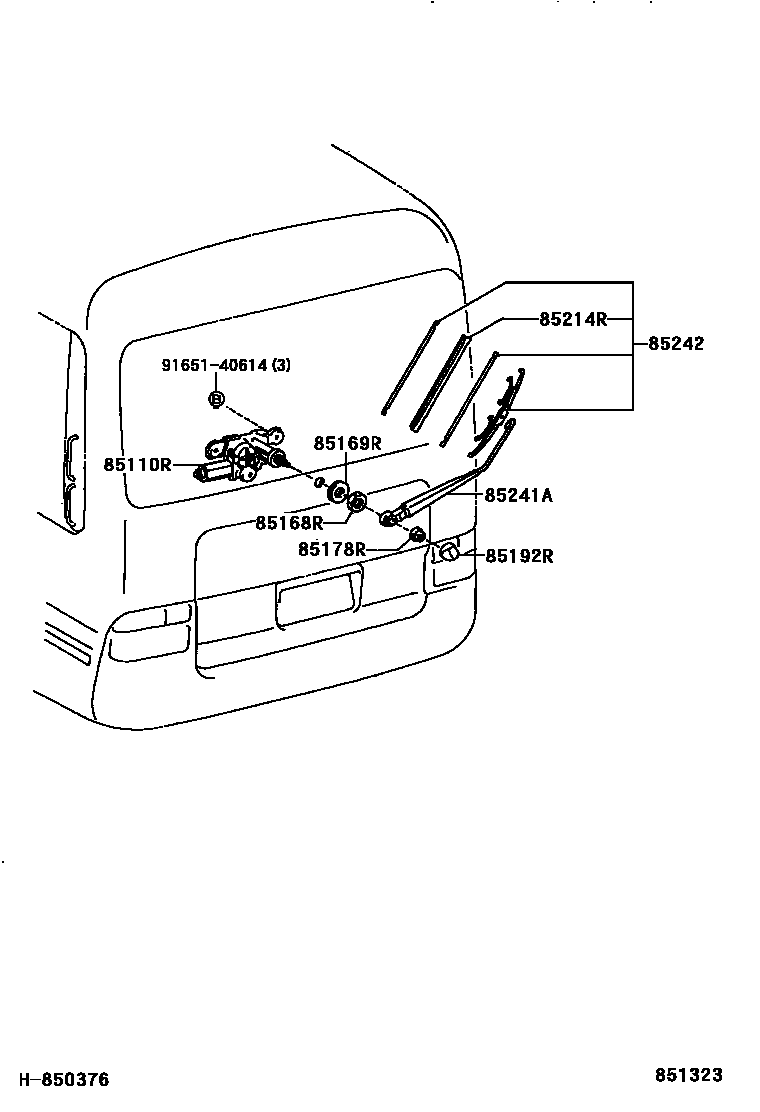

Toyota COASTER (CHINA) — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-36010iRZB5#..20S,23S,24S¥22,300200310-200612

main85130-36020iBB5#¥35,500200310-200612

sub85130-36030¥35,400

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iBB5#,RZB5#..20S,23S,24S¥220200310-200612

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iBB5#,RZB5#..20S,23S,24S200310-200612

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iTRB53,XZB53..CBU;BB54,RZB54..29S,30S¥70200310-200612

85192RCOVER, REAR WIPER ARM

main85292-36010iBB5#,RZB5#..20S,23S,24S¥110200310-200612

85214RRUBBER, REAR WIPER

main85214-10100iBB5#,RZB5#..20S,23S,24S¥650200310-200612

85241AARM, REAR WIPER

main85241-36011iBB5#,RZB5#..20S,23S,24S¥2,650200310-200612

85242BLADE, RR WIPER

main85242-60050iBB5#,RZB5#..20S,23S,24S¥2,090200310-200612

9165140614

main91651-40614¥160

9 parts on this diagram · 1 diagram in section
