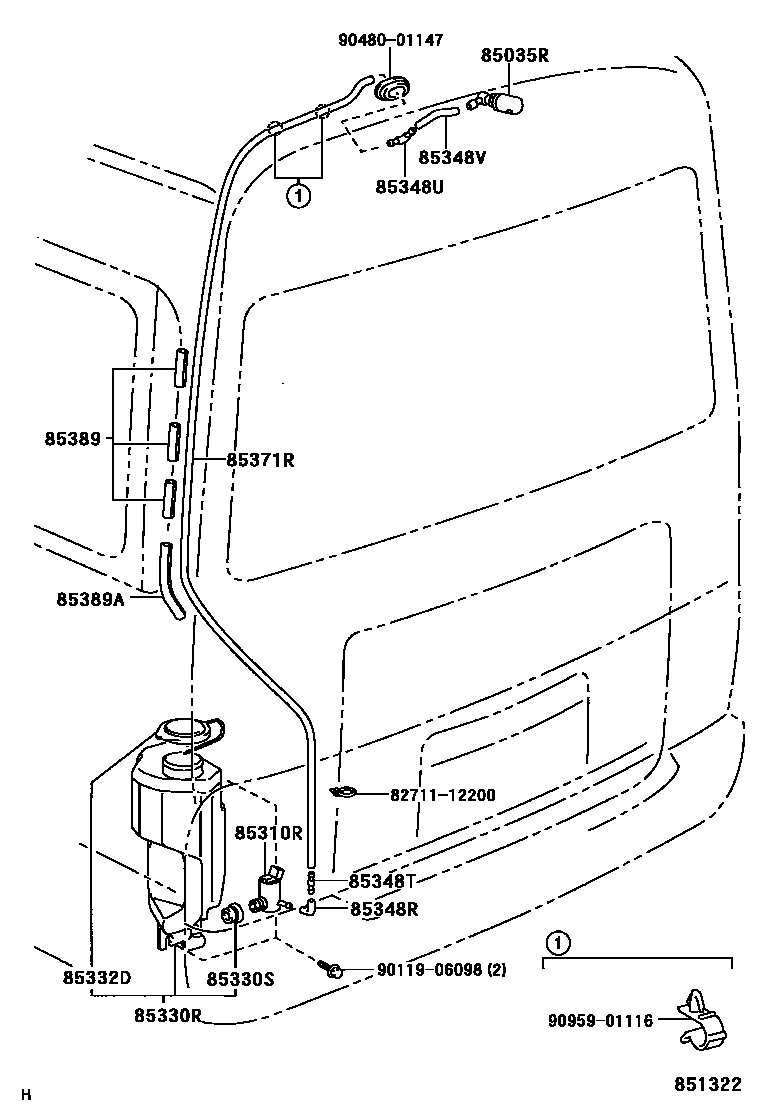

Toyota COASTER (CHINA) — REAR WASHER

0001 1 0002 1

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-36020iBB5#,RZB5#..20S,23S,24S200310-200612

main85391-36020iTRB53,XZB53..CBU;BB54,RZB54..29S,30S200310

85310RMOTOR ASSY, REAR WASHER

main85310-20200iRZB54..30S;TRB53,XZB53..CBU¥0200310

main85310-20200iRZB5#..20S,23S,24S¥0200310-200612

main85330-36160iBB5#200310-200612

85330RJAR ASSY, REAR WASHER

main85325-36031iBB5#,RZB5#..20S,23S,24S200310-200612

main85325-36031iTRB53,XZB53..CBU;BB54,RZB54..29S,30S200310

85330SBUSH, REAR WASHER JAR

main90099-32089iTRB53,XZB53..CBU;BB54,RZB54..29S,30S200310-201403

main90099-32089iBB5#,RZB5#..20S,23S,24S200310-200612

85332DCAP, REAR WASHER TANK

main85316-35130iTRB53,XZB53..CBU;BB54,RZB54..29S,30S¥220200310

main85316-35130iBB5#,RZB5#..20S,23S,24S¥220200310-200612

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iRZB54..30S;TRB53,XZB53..CBU200310-201403

main85349-89122iRZB5#..20S,23S,24S200310-200612

main85355-14481iBB5#¥0200310-200612

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-32150iXZB53¥0201402-201403

main85349-89122iBB5#200310-200612

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-20200iBB5#200310-200612

85348VJOINT, REAR WASHER HOSE, NO.4

main85395-36010iBB5#¥0200310-200612

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06006iBB5#¥640200310-200612

L=2000(*H,L=1957)

85389PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-36030iBB5#,RZB5#..20S,23S,24S¥0200310-200612

main85389-36030iTRB53,XZB53..CBU;BB54,RZB54..29S,30S¥0200310

85389APACKING, WINDSHIELD WASHER HOSE, NO.2

main85389-36020iBB5#,RZB5#..20S,23S,24S200310-200612

main85389-36020iTRB53,XZB53..CBU;BB54,RZB54..29S,30S200310

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

9011906098

main90119-06098¥80

9048001147

main90480-01147¥210

9095901116

main90959-01116¥60

16 parts on this diagram · 2 diagrams in section
