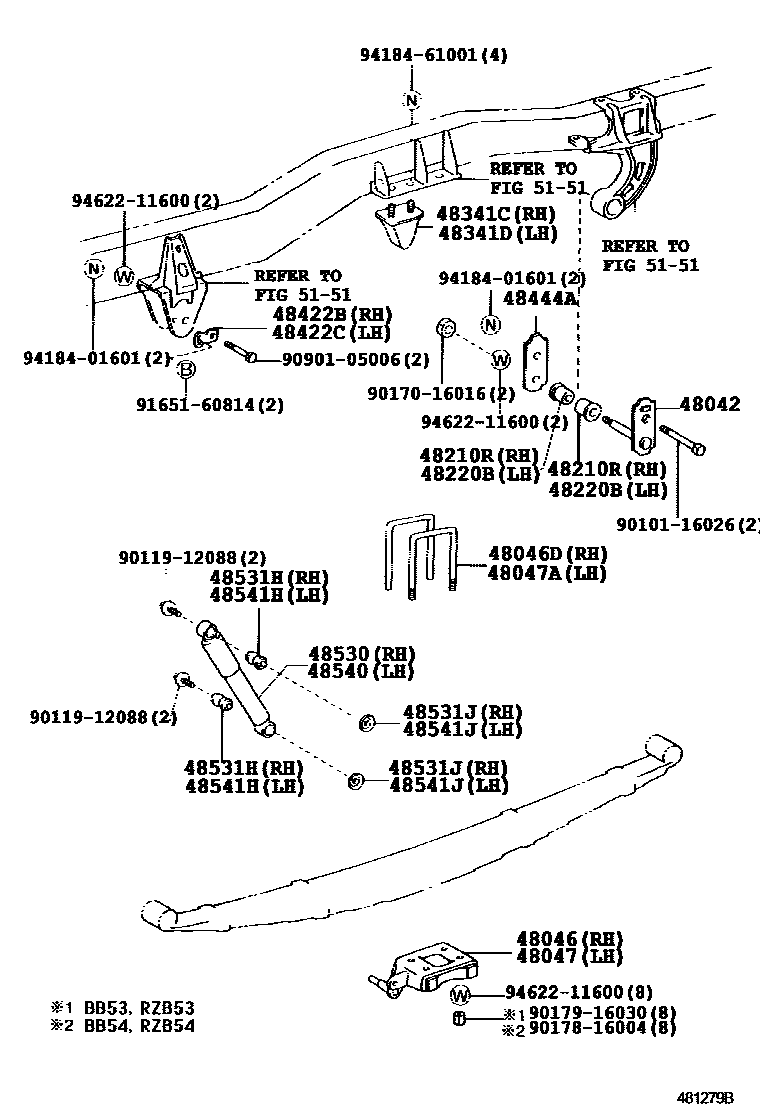

Toyota COASTER (CHINA) — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 19-LEAF 0004 12-LEAF 0006 13-LEAF 0007 1STABILIZER

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48041-36090iBB5#,RZB5#¥2,710200012-200310

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36240iBB53,RZB53¥3,560200012-200310

main48046-36281iBB54,RZB54¥3,780200012-200310

main48046-36300iBB54,RZB54¥4,920200310-200701

main48046-36310iBB53,RZB53,TRB53,XZB53¥4,840200310

48046DBOLT, U(FOR REAR SPRING RH)

main90117-16042iBB53,RZB53¥1,380200012-200310

main90117-16072iBB54,RZB54..20S,23S¥2,320200310-200701

main90117-16076iBB54,RZB54..29S,30S¥2,420200310-200411

main90117-16084iBB54,RZB54¥1,130200012-200310

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-36240iBB53,RZB53¥3,560200012-200310

main48047-36281iBB54,RZB54¥3,780200012-200310

main48047-36300iBB54,RZB54¥4,920200310-200701

main48047-36310iBB53,RZB53,TRB53,XZB53¥4,840200310

48047ABOLT, U(FOR REAR SPRING LH)

main90117-16042iBB53,RZB53¥1,380200012-200310

main90117-16072iBB54,RZB54..20S,23S¥2,320200310-200701

main90117-16076iBB54,RZB54..29S,30S¥2,420200310-200411

main90117-16084iBB54,RZB54¥1,130200012-200310

48210SPRING ASSY, REAR RH

main48210-3C200iBB53,RZB53¥45,800200012-200701

2-LEAF

main48210-3C210iTRB53,XZB53¥29,100200701

2-LEAF

main48210-3C240iBB54,RZB54..29S,30S200012-200411

9-LEAF

main48210-3C300iBB54,RZB54..20S,23S200310-200701

3-LEAF

48210RBUSH(FOR REAR SPRING SHACKLE LOWER RH)

main90385-23006iBB5#,RZB5#200012-200310

48220SPRING ASSY, REAR LH

main48210-3C190iBB53,RZB53¥45,800200012-200701

2-LEAF

main48210-3C220iTRB53,XZB53¥29,100200701

2-LEAF

main48210-3C250iBB54,RZB54..29S,30S200012-200411

9-LEAF

main48210-3C310iBB54,RZB54..20S,23S200310-200701

3-LEAF

48220BBUSH(FOR REAR SPRING SHACKLE LOWER LH)

main90385-23006iBB5#,RZB5#200012-200310

48341CBUMPER, REAR SPRING, NO.2 RH

main48306-36100iBB5#,RZB5#200012-200310

48341DBUMPER, REAR SPRING, NO.2 LH

main48306-36100iBB5#,RZB5#200012-200310

48422BSUPPORT, REAR SPRING PIN, RH

main48422-36030iBB5#,RZB5#¥640200012-200208

sub48422-37010¥320

main48422-37010iBB5#,RZB5#¥320200208-200310

48422CSUPPORT, REAR SPRING PIN, LH

main48422-36030iBB5#,RZB5#¥640200012-200208

sub48422-37010¥320

main48422-37010iBB5#,RZB5#¥320200208-200310

48444APLATE, REAR SPRING SHACKLE, INNER

main48444-36090iBB5#,RZB5#¥1,540200012-200310

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-36200iBB5#,RZB5#200012-200310

MARK 48531-36200

48531HBUSH(FOR REAR SHOCK ABSORBER RH)

main90385-19012iBB5#,RZB5#200012-200310

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90948-03011iBB5#,RZB5#¥130200012-200310

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-36200iBB5#,RZB5#200012-200310

MARK 48531-36200

48541HBUSH(FOR REAR SHOCK ABSORBER LH)

main90385-19012iBB5#,RZB5#200012-200310

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90948-03011iBB5#,RZB5#¥130200012-200310

5151

9010116026

main90101-16026¥490

9011912088

main90119-12088¥190

9017016016

main90170-16016¥130

9017816004

main90178-16004¥310

9017916030

main90179-16030¥190

9090105006

main90901-05006¥590

9165160814

main91651-60814¥130

9418401601

main94184-01601¥160

9418461001

main94184-61001¥80

9462211600

main94622-11600¥170

31 parts on this diagram · 6 diagrams in section
