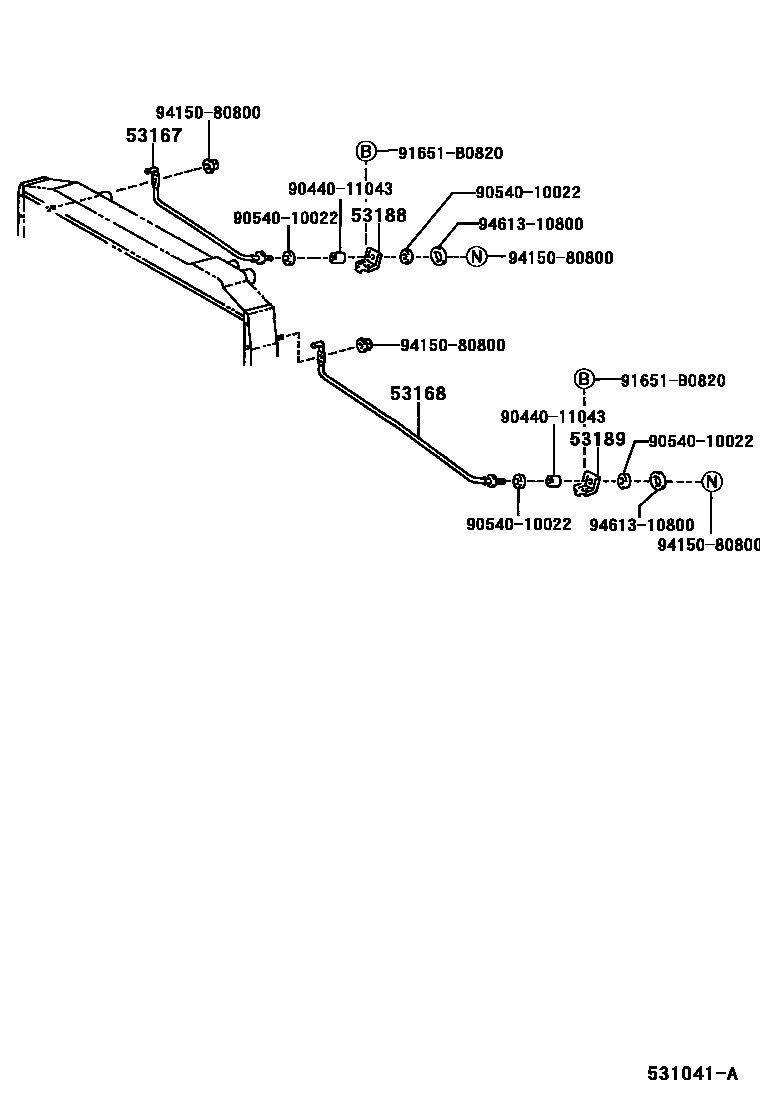

Toyota COASTER (CHINA) — RADIATOR SUPPORT & WIND GUIDE

53167ROD, RADIATOR BRACE, RH

main16533-58070iBB5#,RZB5#¥3,480200012-200310

main16533-78080iXZB53200701-201108

main16533-78130iXZB53201108

53168ROD, RADIATOR BRACE, LH

main16534-58060iBB5#,RZB5#,TRB53¥1,270200012-200310

main16534-78080iXZB53200701-201108

main16534-78110iXZB53201108

53188BRACKET, RADIATOR BRACE ROD, RH

main53168-36010iBB5#,RZB5#¥530200012-200310

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-36010iBB5#,RZB5#¥530200012-200310

9044011043

main90440-11043¥100

9054010022

main90540-10022¥200

91651B0820

main91651-B0820¥160

9415080800

main94150-80800¥90

9461310800

main94613-10800¥90

9 parts on this diagram · 1 diagram in section
