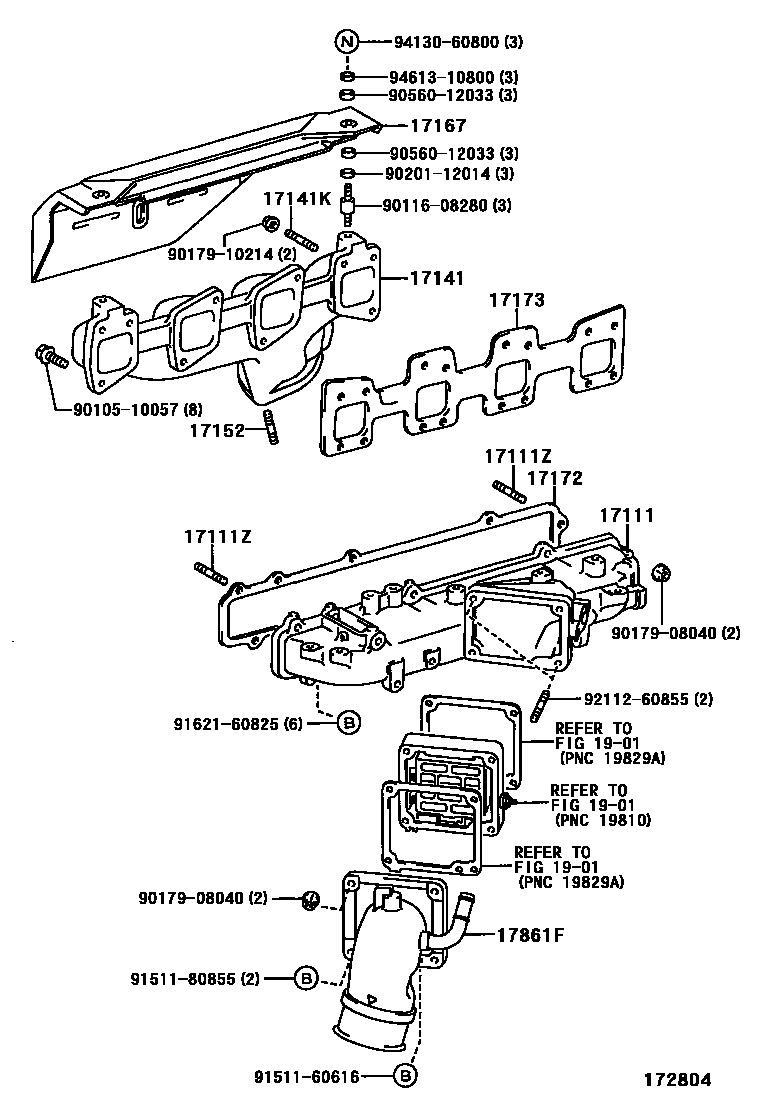

Toyota COASTER (CHINA) — MANIFOLD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17172GASKET, MANIFOLD TO CYLINDER HEAD
17173GASKET, EXHAUST MANIFOLD TO HEAD
17861FCONNECTOR, INTAKE AIR
1901
9010510057
9011608280
9017908040
9017910214
9020112014
9056012033
9151160616
9151180855
9162160825
9211260855
9413060800
9461310800
22 parts on this diagram · 8 diagrams in section
