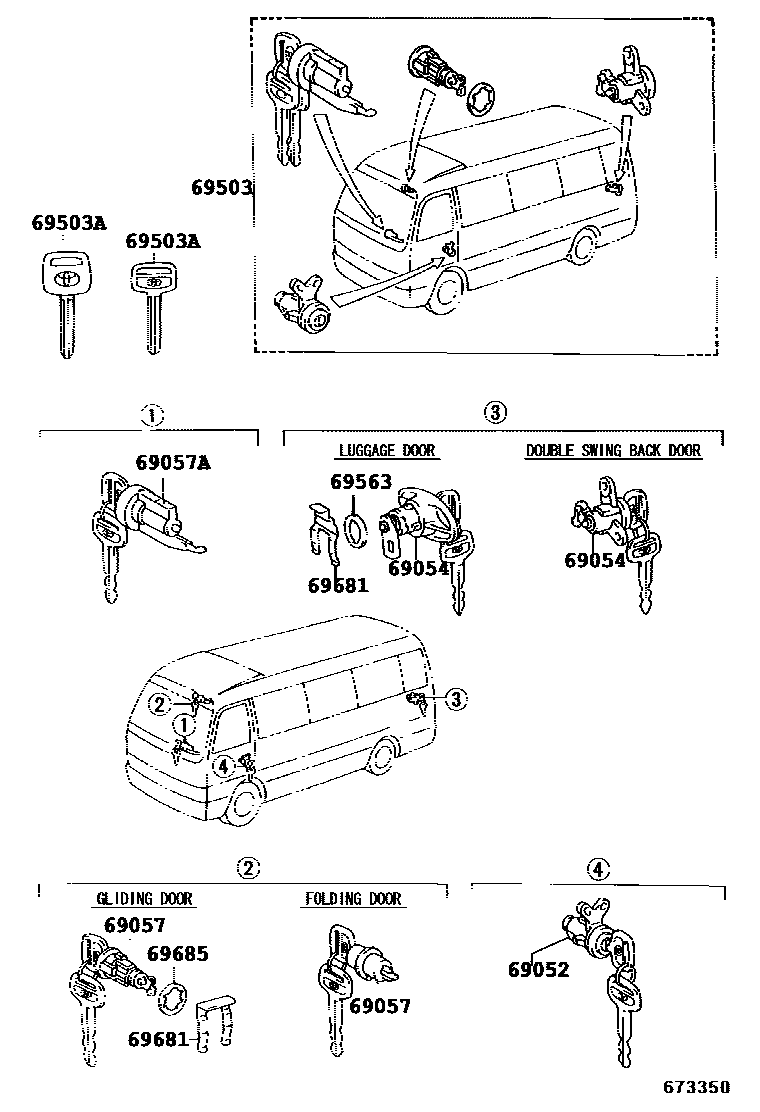

Toyota COASTER (CHINA) — LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0S010iTRB53,XZB53200709

main69052-36030iBB5#,RZB5#¥4,010200012-200201

sub69052-36031¥2,520

main69052-36031iBB5#,RZB5#¥2,520200201-200709

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-0S010iTRB53,XZB53..CBU200709

main69055-0S020iTRB53..IV5201108

main69055-0S020iTRB53,XZB53200709-201108

W(DOUBLE SWING BACK DOOR)

main69055-36011iBB5#,RZB5#¥3,360200012-200709

main69055-36020iTRB53,XZB53;BB54,RZB54..23S,29S,30S¥4,010200310-200709

W(DOUBLE SWING BACK DOOR)

69057CYLINDER & KEY SET, CENTER DOOR LOCK

main69053-0S010iTRB53,XZB53..STD200709

main69053-0S020iTRB53,XZB53..EX,LX200709

main69053-36010iBB54,RZB54,TRB53,XZB53..STD,STDH¥2,520200012-200709

main69053-36020iBB53,RZB53¥4,010200012-200709

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0S010iTRB53,XZB53200709

main69057-36011iBB5#,RZB5#¥7,100200012-200709

69503CYLINDER SET, LOCK

main69005-0S010iTRB53,XZB53..STD..CBU200709

main69005-0S030iTRB53,XZB53..EX,LX200709

main69005-36122iBB54,RZB54¥17,600200012-200201

sub69005-36123¥17,600

main69005-36123iBB54,RZB54¥17,600200201-200411

W(FOLDING SIDE DOOR & LUGGAGE COMPARTMENT DOOR)

main69005-36142iBB53,RZB53¥17,600200012-200201

sub69005-36143¥17,500

main69005-36143iBB53,RZB53¥17,500200201-200411

W(GLIDING SIDE DOOR & LUGGAGE COMPARTMENT DOOR)

main69005-36262iBB54,RZB54..29S,30S¥16,000200310-200411

W(FOLDING SIDE DOOR & DOUBLE SWING BACK DOOR)

sub69005-36820

main69005-36710iBB54,RZB54,TRB53,XZB53..STD,STDH200411-200709

W(FOLDING SIDE DOOR & LUGGAGE COMPARTMENT DOOR)

sub69005-0S010

main69005-36720iBB54,RZB54..23S;TRB53,XZB53..STD200411-200709

W(FOLDING SIDE DOOR & DOUBLE SWING BACK DOOR)

main69005-36730iBB53,RZB53,TRB53,XZB53..EX,LX200411-200709

W(GLIDING SIDE DOOR & LUGGAGE COMPARTMENT DOOR)

sub69005-0S030

69503AKEY, BLANK

main90999-00185iBB5#,RZB5#,TRB53,XZB53..CBU¥1,790200012-200310

MASTER KEY,W(*68)

main90999-00186iTRB53,XZB53..EX,LX¥1,430200012-200709

MASTER KEY

main90999-00186iTRB53,XZB53..EX,LX¥1,430200701-200708

MASTER KEY,W(GLIDING SIDE DOOR & DOUBLE SWING BACK DOOR)

69563PAD, BACK DOOR LOCK CYLINDER

main69685-36010iBB54,RZB54..29S,30S¥140200012-200701

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69511-89101iBB53,RZB53¥140200012-200701

GLIDING DOOR

main69561-33010iTRB53,XZB53..CBU¥140200012-200701

LUGGAGE DOOR

69685PAD, LOCK CYLINDER

main69513-32010iBB53,RZB53¥120200012-200701

9 parts on this diagram · 1 diagram in section
