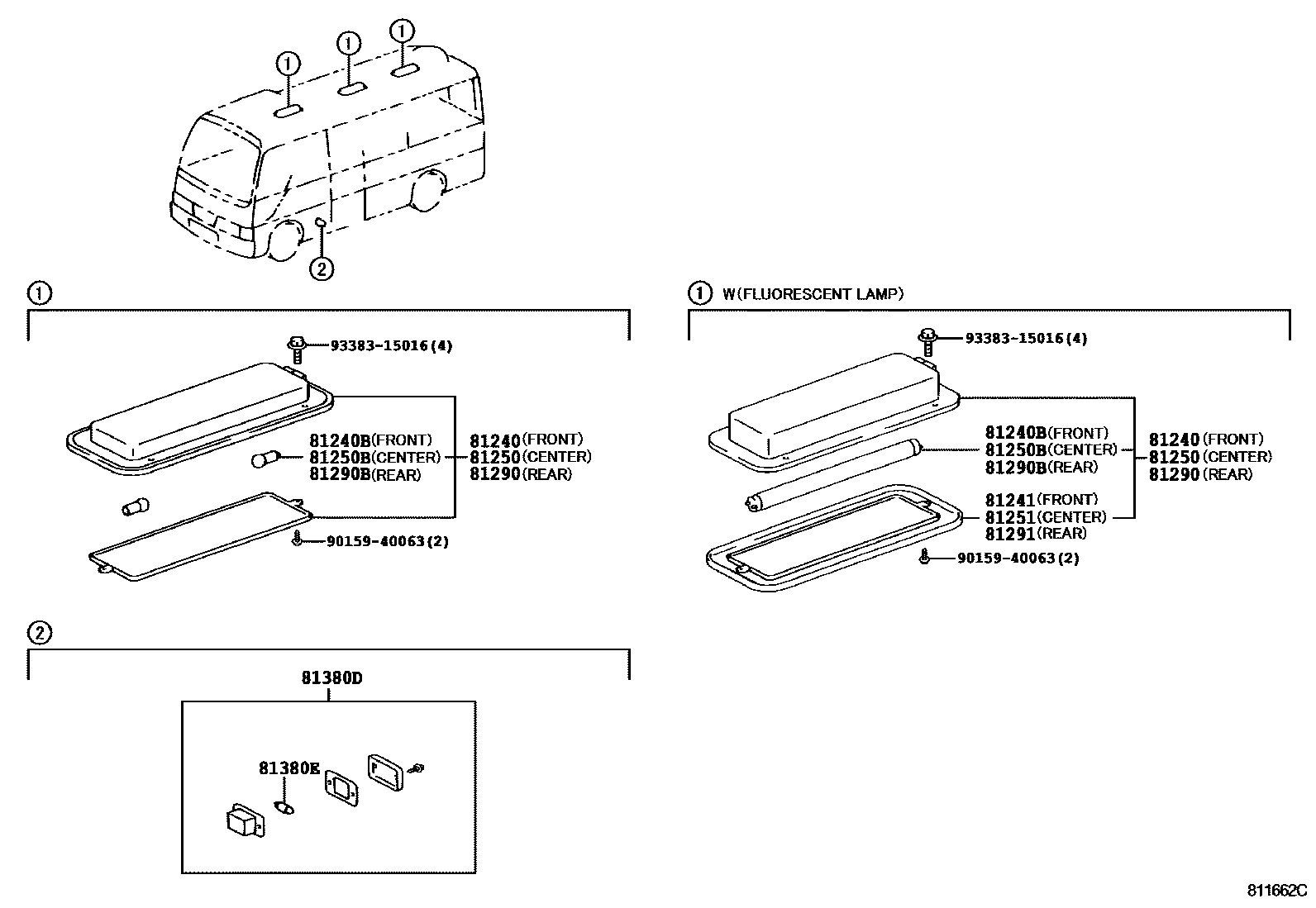

Toyota COASTER (CHINA) — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM4#
IVORY,TRIM4#
81240BBULB, ROOM LAMP, NO.1
100V 10W(MARK FL10D)
12V 10W
24V 12W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM4#
IVORY,TRIM4#
81250BBULB, ROOM LAMP, NO.2
100V 10W(MARK FL10D)
12V 10W
24V 12W
81251LENS, ROOM LAMP, NO.2
81290LAMP ASSY, ROOM, NO.3
IVORY,TRIM4#
IVORY,TRIM4#
81290BBULB, ROOM LAMP, NO.3
100V 10W(MARK FL10D)
12V 10W
24V 12W
81291LENS, ROOM LAMP, NO.3(FOR REAR)
81380EBULB (FOR STEP LAMP)
9015940063
9338315016
13 parts on this diagram · 1 diagram in section
