Toyota COASTER (CHINA) — INSIDE TRIM BOARD

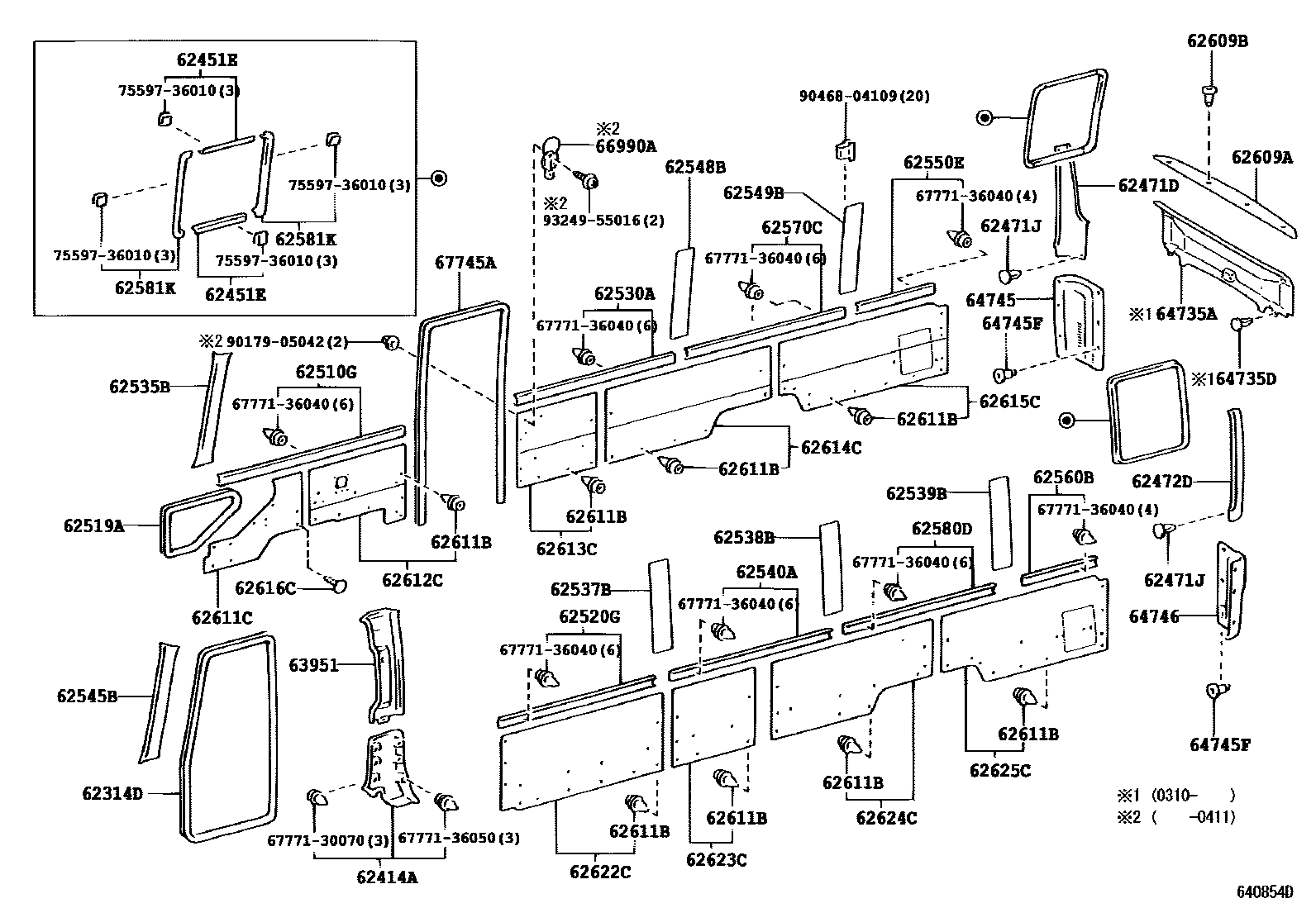

Parts diagram
62314DTRIM, FRONT DOOR OPENING, LH
main62313-0S011-A0i200707-201403
IVORY,TRIM4#
main62313-36020-A0i200012-200707
IVORY,TRIM4#
sub62313-0S011
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-36010-A0i200012-200611
IVORY,TRIM4#
sub62414-36011
main62414-36011-A0i200612-201403
IVORY,TRIM4#
62451EGARNISH, ROOF SIDE RAIL, REAR
main62450-36010-A0i200311-201403
IVORY,TRIM4#
main62451-36060-A1i200012-200311
IVORY,TRIM4#
sub62451-36060¥3,370
62471DGARNISH, REAR PILLAR, UPPER RH
main62471-0S010-A0i201209-201403
IVORY,TRIM4#
main62471-36120-A0i200012-200310
IVORY,TRIM4#
main62471-36160-A0i200310-200411
IVORY,TRIM4#
main62471-36170-A0i200411-200610
W(HAMMER FIXED HOLE),IVORY,TRIM4#
sub62471-36171
main62471-36171-A0i200611-201403
W(HAMMER FIXED HOLE),IVORY,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-05009i¥140200012-200310
62472DGARNISH, REAR PILLAR, UPPER LH
main62472-0S010-A0i201209-201403
IVORY,TRIM4#
main62472-36130-A0i200012-200310
IVORY,TRIM4#
main62472-36190-A0i200310-200610
IVORY,TRIM4#
sub62472-36191
main62472-36191-A0i200701-201403
W(HAMMER FIXED HOLE),IVORY,TRIM4#
main62472-36191-A0i200611-200701
IVORY,TRIM4#
62510GTRIM ASSY, SIDE NO.1, RH
main62510-36400-E0i200012-200610
GREIGE,TRIM4#
sub62510-36401
main62510-36401-E0i200611-200701
GREIGE,TRIM4#
main62510-36410-E0i200012-200610
GREGE,TRIM4#
sub62510-36411
main62510-36411-E0i200611-200701
GREGE,TRIM4#
main62510-36501-E0i200701-201403
GREIGE,TRIM4#
main62510-36511-A0i200701-201108
IVORY,TRIM4#
main62510-36511-A1i201108-201403
IVORY,TRIM4#
62519ATRIM, SIDE LOWER WINDOW
main62519-0S011-A0i200707-201403
IVORY,TRIM4#
main62519-36020-A0i200012-200707
IVORY,TRIM4#
sub62519-0S011
62520GTRIM ASSY, SIDE NO.1, LH
main62520-36510-E0i200012-200610
GREIGE,TRIM4#
sub62520-36511
main62520-36511-E0i200611-201403
GREIGE,TRIM4#
main62520-36520-E0i200012-200610
GREGE,TRIM4#
sub62520-36521
main62520-36521-E0i200611-200701
GREGE,TRIM4#
main62520-36691-A0i200701-201108
IVORY,TRIM4#
main62520-36691-A1i201108-201403
IVORY,TRIM4#
62530ATRIM ASSY, SIDE NO.2, RH
main62530-36330-E0i200012-200610
GREIGE,TRIM4#
sub62530-36331
main62530-36331-E0i200611-201403
GREIGE,TRIM4#
main62530-36340-E0i200012-200610
GREGE,TRIM4#
sub62530-36341
main62530-36341-E0i200611-200701
GREGE,TRIM4#
main62530-36391-A0i200701-201108
IVORY,TRIM4#
main62530-36391-A1i201108-201403
IVORY,TRIM4#
62535BGARNISH, PILLAR NO.1, RH
main62037-36010-A0i200012-200610
IVORY,TRIM4#
sub62037-36011
main62037-36011-A0i200611-201403
IVORY,TRIM4#
62537BGARNISH, PILLAR NO.3, RH
main62470-36010-A0i200012-200610
IVORY,TRIM4#
sub62470-36011
main62470-36011-A0i200611-201403
IVORY,TRIM4#
62538BGARNISH, PILLAR NO.4, RH
main62470-36010-A0i200012-200610
IVORY,TRIM4#
sub62470-36011
main62470-36011-A0i200611-201403
IVORY,TRIM4#
62539BGARNISH, PILLAR NO.5, RH
main62470-36010-A0i200012-200610
IVORY,TRIM4#
sub62470-36011
main62470-36011-A0i200611-201403
IVORY,TRIM4#
62540ATRIM ASSY, SIDE NO.2, LH
main62570-36110-E0i200012-200610
GREIGE,TRIM4#
sub62570-36111
main62570-36111-E0i200611-201403
GREIGE,TRIM4#
main62570-36120-E0i200012-200610
GREGE,TRIM4#
sub62570-36121
main62570-36121-E0i200611-200701
GREGE,TRIM4#
main62570-36181-A0i200701-201108
IVORY,TRIM4#
main62570-36181-A1i201108-201403
IVORY,TRIM4#
62545BGARNISH, PILLAR NO.1, LH
main62038-36010-A0i200012-200610
IVORY,TRIM4#
sub62038-36011
main62038-36011-A0i200611-201403
IVORY,TRIM4#
62548BGARNISH, PILLAR NO.4, LH
main62470-36010-A0i200012-200610
IVORY,TRIM4#
sub62470-36011
main62470-36011-A0i200611-201403
IVORY,TRIM4#
62549BGARNISH, PILLAR NO.5, LH
main62470-36010-A0i200012-200610
IVORY,TRIM4#
sub62470-36011
main62470-36011-A0i200611-201403
IVORY,TRIM4#
62550ETRIM ASSY, SIDE NO.3, RH
main62550-36150-E0i200012-200610
GREIGE,TRIM4#
sub62550-36151
main62550-36151-E0i200611-201403
GREIGE,TRIM4#
main62550-36160-E0i200012-200610
GREGE,TRIM4#
sub62550-36161
main62550-36161-E0i200611-200701
GREGE,TRIM4#
main62550-36221-A0i200701-201108
IVORY,TRIM4#
main62550-36221-A1i201108-201403
IVORY,TRIM4#
62560BTRIM ASSY, SIDE, NO.3 LH
main62560-36150-E0i200012-200610
GREIGE,TRIM4#
sub62560-36151
main62560-36151-E0i200611-201403
GREIGE,TRIM4#
main62560-36160-E0i200012-200610
GREGE,TRIM4#
sub62560-36161
main62560-36161-E0i200611-200701
GREGE,TRIM4#
main62560-36221-A0i200701-201108
IVORY,TRIM4#
main62560-36221-A1i201108-201403
IVORY,TRIM4#
62570CTRIM ASSY, SIDE NO.4
main62570-36110-E0i200012-200610
GREIGE,TRIM4#
sub62570-36111
main62570-36111-E0i200611-201403
GREIGE,TRIM4#
main62570-36120-E0i200012-200610
GREGE,TRIM4#
sub62570-36121
main62570-36121-E0i200611-200701
GREGE,TRIM4#
main62570-36181-A0i200701-201108
IVORY,TRIM4#
main62570-36181-A1i201108-201403
IVORY,TRIM4#
62580DTRIM ASSY, SIDE NO.4 LH
main62570-36110-E0i200012-200610
GREIGE,TRIM4#
sub62570-36111
main62570-36111-E0i200611-201403
GREIGE,TRIM4#
main62570-36120-E0i200012-200610
GREGE,TRIM4#
sub62570-36121
main62570-36121-E0i200611-200701
GREGE,TRIM4#
main62570-36181-A0i200701-201108
IVORY,TRIM4#
main62570-36181-A1i201108-201403
IVORY,TRIM4#
62581KGARNISH, REAR WINDOW SIDE
main62550-36180-A0i200311-201403
IVORY,TRIM4#
main62581-36010-A1i200012-200311
IVORY,TRIM4#
sub62581-36010¥4,570
62609ABOARD SUB-ASSY, LUGGAGE PARTITION
main62691-0S010-A0i200711-201403
IVORY,TRIM4#
main62691-36030-A0i200012-200711
IVORY,TRIM4#
sub62691-0S010
62609BCLIP (FOR LUGGAGE PARTITION BOARD)
main90467-08104-A1i200012-201403
IVORY,TRIM4#
sub90467-08104¥90
62611BCLIP (FOR SIDE TRIM BOARD)
main67771-12050i¥160200012-201403
RED
main90467-08104-A1i200012-201403
IVORY,TRIM4#
sub90467-08104¥90
62611CBOARD, SIDE TRIM NO.1, RH
main62611-0S010-A0i200711-201403
IVORY,TRIM4#
main62611-36030-A0i200012-200610
IVORY,TRIM4#
sub62611-36031
main62611-36031-A0i200611-200710
IVORY,TRIM4#
sub62611-0S010
62612CBOARD, SIDE TRIM NO.2, RH
main62612-0S010-A0i200711-201403
IVORY,TRIM4#
main62612-36430-A0i200012-200411
IVORY,TRIM4#
main62612-36431-A0i200411-200610
IVORY,TRIM4#
sub62612-36432
main62612-36432-A0i200611-200701
IVORY,TRIM4#
main62612-36461-A0i200701-200710
IVORY,TRIM4#
sub62612-0S010
main62630-36220-A0i200012-200411
IVORY,TRIM4#
main62630-36221-A0i200411-200610
IVORY,TRIM4#
sub62630-36222
main62630-36222-A0i200611-200701
IVORY,TRIM4#
main62630-36241-A0i200701-201403
IVORY,TRIM4#
62613CBOARD, SIDE TRIM NO.3, RH
main62613-0S020-A0i200701-200710
IVORY,TRIM4#
sub62613-0S021
main62613-0S021-A0i200711-201403
IVORY,TRIM4#
main62613-0S030-A0i200701-200710
IVORY,TRIM4#
sub62613-0S031
main62613-0S031-A0i200711-201403
IVORY,TRIM4#
main62613-0S040-A0i200711-201301
IVORY,TRIM4#
main62613-0S050-A0i200711-201301
IVORY,TRIM4#
main62613-36140-A0i200012-200411
IVORY,TRIM4#
main62613-36170-A0i200310-200411
IVORY,TRIM4#
main62613-36200-A0i200411-200610
IVORY,TRIM4#
sub62613-36201
main62613-36201-A0i200611-200710
IVORY,TRIM4#
sub62613-0S050
main62613-36211-A0i200701-200710
IVORY,TRIM4#
sub62613-0S040
main62650-0S020-A0i200701-201403
IVORY,TRIM4#
main62650-0S030-A0i200701-201403
IVORY,TRIM4#
main62650-36080-A0i200012-200411
IVORY,TRIM4#
main62650-36081-A0i200411-200610
IVORY,TRIM4#
sub62650-36082
main62650-36082-A0i200611-201301
IVORY,TRIM4#
main62650-36111-A0i200701-201301
IVORY,TRIM4#
62614CBOARD, SIDE TRIM NO.4, RH
main62614-0S010-A0i200711-201403
IVORY,TRIM4#
main62614-0S020-A0i200711-201403
IVORY,TRIM4#
main62614-36190-A0i200012-200108
IVORY,TRIM4#
main62614-36210-A0i200108-200411
IVORY,TRIM4#
main62614-36230-A0i200310-200411
IVORY,TRIM4#
main62614-36250-A0i200411-200610
IVORY,TRIM4#
sub62614-36251
main62614-36251-A0i200611-200710
IVORY,TRIM4#
sub62614-0S020
main62614-36291-A0i200701-200710
IVORY,TRIM4#
sub62614-0S010
main62670-36100-A0i200012-200108
IVORY,TRIM4#
main62670-36120-A0i200108-200411
IVORY,TRIM4#
main62670-36121-A0i200411-200610
IVORY,TRIM4#
sub62670-36122
main62670-36122-A0i200611-201403
IVORY,TRIM4#
main62670-36131-A0i200701-201403
IVORY,TRIM4#
62615CBOARD, SIDE TRIM NO.5, RH
main62070-36140-A0i200012-200108
IVORY,TRIM4#
main62070-36170-A0i200108-200411
IVORY,TRIM4#
main62070-36171-A0i200411-200601
IVORY,TRIM4#
main62070-36180-A0i200310-200411
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62070-36181-A0i200411-200601
W(FOLDING SEAT = NO.8 SEAT & STEP FLOOR),IVORY,TRIM4#
main62070-36200-A0i200411-200601
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62070-36220-A0i200601-200610
IVORY,TRIM4#
sub62070-36221
main62070-36221-A0i200611-200701
IVORY,TRIM4#
main62070-36230-A0i200601-200610
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62070-36231
main62070-36231-A0i200611-200701
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62070-36240-A0i200601-200610
IVORY,TRIM4#
sub62070-36241
main62070-36241-A0i200611-201403
IVORY,TRIM4#
main62070-36251-A0i200701-201403
IVORY,TRIM4#
main62070-36261-A0i200701-201403
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62615-0S010-A0i200711-201403
IVORY,TRIM4#
main62615-0S020-A0i200711-201403
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62615-0S030-A0i200711-201403
IVORY,TRIM4#
main62615-0S040-A0i201108-201301
IVORY,TRIM4#
main62615-0S040-A0i200711-201403
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62615-36370-A0i200012-200108
IVORY,TRIM4#
main62615-36430-A0i200108-200411
IVORY,TRIM4#
main62615-36460-A0i200310-200411
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62615-36470-A0i200310-200411
IVORY,TRIM4#
main62615-36510-A0i200411-200601
IVORY,TRIM4#
main62615-36520-A0i200411-200601
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62615-36560-A0i200601-200610
IVORY,TRIM4#
sub62615-36561
main62615-36561-A0i200611-200710
IVORY,TRIM4#
sub62615-0S030
main62615-36580-A0i200601-200610
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62615-36581
main62615-36581-A0i200611-200710
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62615-0S040
main62615-36611-A0i200701-200710
IVORY,TRIM4#
sub62615-0S010
main62615-36621-A0i200701-200710
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62615-0S020
62616CCLIP
main90467-08104-A1i200012-201403
IVORY,TRIM4#
sub90467-08104¥90
62622CBOARD, SIDE TRIM NO.2, LH
main62622-0S010-A0i200711-201403
IVORY,TRIM4#
main62622-0S020-A0i200711-201403
IVORY,TRIM4#
main62622-36350-A0i200012-200411
IVORY,TRIM4#
main62622-36390-A0i200310-200411
IVORY,TRIM4#
main62622-36420-A0i200411-200610
IVORY,TRIM4#
sub62622-36421
main62622-36421-A0i200611-200710
IVORY,TRIM4#
sub62622-0S020
main62622-36431-A0i200701-200710
IVORY,TRIM4#
sub62622-0S010
main62640-36140-A0i200012-200411
IVORY,TRIM4#
main62640-36141-A0i200411-200610
IVORY,TRIM4#
sub62640-36142
main62640-36142-A0i200611-201403
IVORY,TRIM4#
main62640-36161-A0i200701-201403
IVORY,TRIM4#
62623CBOARD, SIDE TRIM NO.3, LH
main62623-0S010-A0i200711-201403
IVORY,TRIM4#
main62623-0S020-A0i200711-201403
IVORY,TRIM4#
main62623-36170-A0i200012-200411
IVORY,TRIM4#
main62623-36200-A0i200310-200411
IVORY,TRIM4#
main62623-36230-A0i200411-200610
IVORY,TRIM4#
sub62623-36231
main62623-36231-A0i200611-200710
IVORY,TRIM4#
sub62623-0S020
main62623-36241-A0i200701-200710
IVORY,TRIM4#
sub62623-0S010
main62660-36100-A0i200012-200411
IVORY,TRIM4#
main62660-36101-A0i200411-200610
IVORY,TRIM4#
sub62660-36102
main62660-36102-A0i200611-201403
IVORY,TRIM4#
main62660-36141-A0i200701-201403
IVORY,TRIM4#
62624CBOARD, SIDE TRIM NO.4, LH
main62624-0S010-A0i200711-201403
IVORY,TRIM4#
main62624-0S020-A0i200711-201403
IVORY,TRIM4#
main62624-36200-A0i200012-200108
IVORY,TRIM4#
main62624-36220-A0i200310-200411
IVORY,TRIM4#
main62624-36230-A0i200108-200411
IVORY,TRIM4#
main62624-36260-A0i200411-200610
IVORY,TRIM4#
sub62624-36261
main62624-36261-A0i200611-200710
IVORY,TRIM4#
sub62624-0S020
main62624-36301-A0i200701-200710
IVORY,TRIM4#
sub62624-0S010
main62680-36100-A0i200012-200108
IVORY,TRIM4#
main62680-36121-A0i200701-201403
IVORY,TRIM4#
main62680-36130-A0i200108-200411
IVORY,TRIM4#
main62680-36131-A0i200411-200610
IVORY,TRIM4#
sub62680-36132
main62680-36132-A0i200611-201403
IVORY,TRIM4#
62625CBOARD, SIDE TRIM NO.5, LH
main62080-36140-A0i200012-200108
IVORY,TRIM4#
main62080-36170-A0i200108-200411
IVORY,TRIM4#
main62080-36171-A0i200411-200601
IVORY,TRIM4#
main62080-36180-A0i200310-200411
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62080-36181-A0i200411-200601
W(FOLDING SEAT = NO.8 SEAT & STEP FLOOR),IVORY,TRIM4#
main62080-36200-A0i200411-200601
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62080-36220-A0i200601-200610
IVORY,TRIM4#
sub62080-36221
main62080-36221-A0i200611-200701
IVORY,TRIM4#
main62080-36230-A0i200601-200610
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62080-36231
main62080-36231-A0i200611-200701
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62080-36240-A0i200601-200610
IVORY,TRIM4#
sub62080-36241
main62080-36241-A0i200611-201403
IVORY,TRIM4#
main62080-36251-A0i200701-201403
IVORY,TRIM4#
main62080-36261-A0i200701-201403
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62625-0S010-A0i200711-201403
IVORY,TRIM4#
main62625-0S020-A0i200711-201403
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62625-0S030-A0i200711-201403
IVORY,TRIM4#
main62625-0S040-A0i200711-201403
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62625-0S040-A0i201108-201301
IVORY,TRIM4#
main62625-36380-A0i200012-200108
IVORY,TRIM4#
main62625-36430-A0i200108-200411
IVORY,TRIM4#
main62625-36460-A0i200310-200411
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62625-36470-A0i200310-200411
IVORY,TRIM4#
main62625-36510-A0i200411-200601
IVORY,TRIM4#
main62625-36520-A0i200411-200601
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
main62625-36560-A0i200601-200610
IVORY,TRIM4#
sub62625-36561
main62625-36561-A0i200611-200710
IVORY,TRIM4#
sub62625-0S030
main62625-36580-A0i200601-200610
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62625-36581
main62625-36581-A0i200611-200710
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62625-0S040
main62625-36611-A0i200701-200710
IVORY,TRIM4#
sub62625-0S010
main62625-36621-A0i200701-200710
W(FOLDING SEAT = NO.8 SEAT),IVORY,TRIM4#
sub62625-0S020
63951COVER, COOLER PIPE
main63951-36200-A0i200012-200310
IVORY,TRIM4#
sub63951-36210¥4,680
main63951-36210-A0i200310-200611
IVORY,TRIM4#
sub63951-36211
main63951-36211-A0i200612-201403
IVORY,TRIM4#
64735AGARNISH, CENTER BACK RAIL INNER
main64735-36030-A0i200310-200612
IVORY,TRIM4#
sub64735-36040
main64735-36040-A0i200612-201403
IVORY,TRIM4#
64735DCLIP(FOR CENTER BACK RAIL INNER GARNISH)
main90467-05009i¥140200310-200701
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-36020-A0i200310-200611
W(DOUBLE SWING BACK DOOR),IVORY,TRIM4#
sub64745-36020¥7,600
main64745-36040-A0i200012-200310
IVORY,TRIM4#
sub64745-36050
main64745-36050-A0i200310-200610
W(LUGGAGE BACK DOOR),IVORY,TRIM4#
sub64745-36051
main64745-36051-A0i200611-201403
W(LUGGAGE BACK DOOR),IVORY,TRIM4#
64745FRETAINER, DOOR TRIM
main67771-36030-A0i200012-201403
IVORY,TRIM4#
sub67771-36030¥100
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-36030-A0i200310-200611
W(DOUBLE SWING BACK DOOR),IVORY,TRIM4#
sub64746-36030¥7,600
main64746-36040-A0i200012-200310
IVORY,TRIM4#
sub64746-36060
main64746-36060-A0i200310-200610
W(LUGGAGE BACK DOOR),IVORY,TRIM4#
sub64746-36061
main64746-36061-A0i200611-201403
W(LUGGAGE BACK DOOR),IVORY,TRIM4#
main64746-36070-A0i200310-200610
W(LUGGAGE BACK DOOR & REAR WIPER),IVORY,TRIM4#
sub64746-36071
main64746-36071-A0i200611-201403
W(LUGGAGE BACK DOOR & REAR WIPER),IVORY,TRIM4#
66990AHOLDER ASSY, CUP
main66990-36020-E0i200310-200411
GREIGE,TRIM4#
main66990-90B01-E0i200012-200310
GREIGE,TRIM4#
sub66990-90B01¥2,700
sub66990-36020¥2,650
67745AMOULDING, CENTER DOOR TRIM
main67745-0S011-A0i200707-201403
IVORY,TRIM4#
main67745-0S021-A0i200707-201403
IVORY,TRIM4#
main67745-36070-A0i200012-200707
IVORY,TRIM4#
sub67745-0S011
main67745-36080-A0i200012-200707
IVORY,TRIM4#
sub67745-0S021
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070¥190
6777136040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-36040¥160
6777136050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-36050¥220
7559736010COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
main75597-36010¥120
9017905042
main90179-05042¥70
9046804109
main90468-04109¥110
9324955016
main93249-55016¥160

51 parts on this diagram · 5 diagrams in section

Toyota COASTER (CHINA) INSIDE TRIM BOARD — Parts Diagram | EPC Data
