Toyota COASTER (CHINA) — HORN

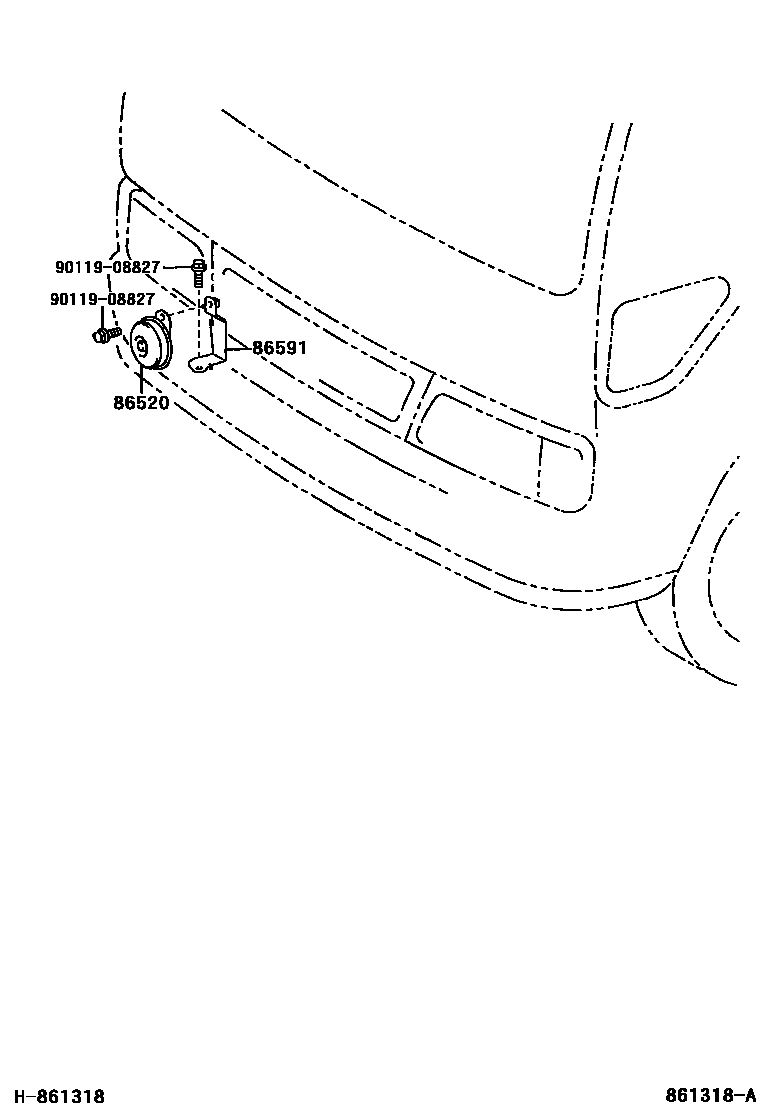

Parts diagram
86520HORN ASSY, LOW PITCHED
main86520-0P011i200701-201212
sub86520-0R020
main86520-35100i¥4,430200310-200608
sub86520-35102
main86520-35100i¥4,430200012-200310
sub86520-35102
main86520-35101i200609-200701
sub86520-35102
main86520-36210i¥3,490200310-200608
sub86520-36211
main86520-36210i¥3,490200012-200310
sub86520-36211
main86520-36211i200609-200701
86591BRACKET, HORN
main86591-0S010i200711
main86591-36030i¥770200012-200310
main86591-36030i¥770200310-200701
main86591-36040i200701-200711
sub86591-0S010
9011908827
main90119-08827¥90

3 parts on this diagram · 2 diagrams in section
