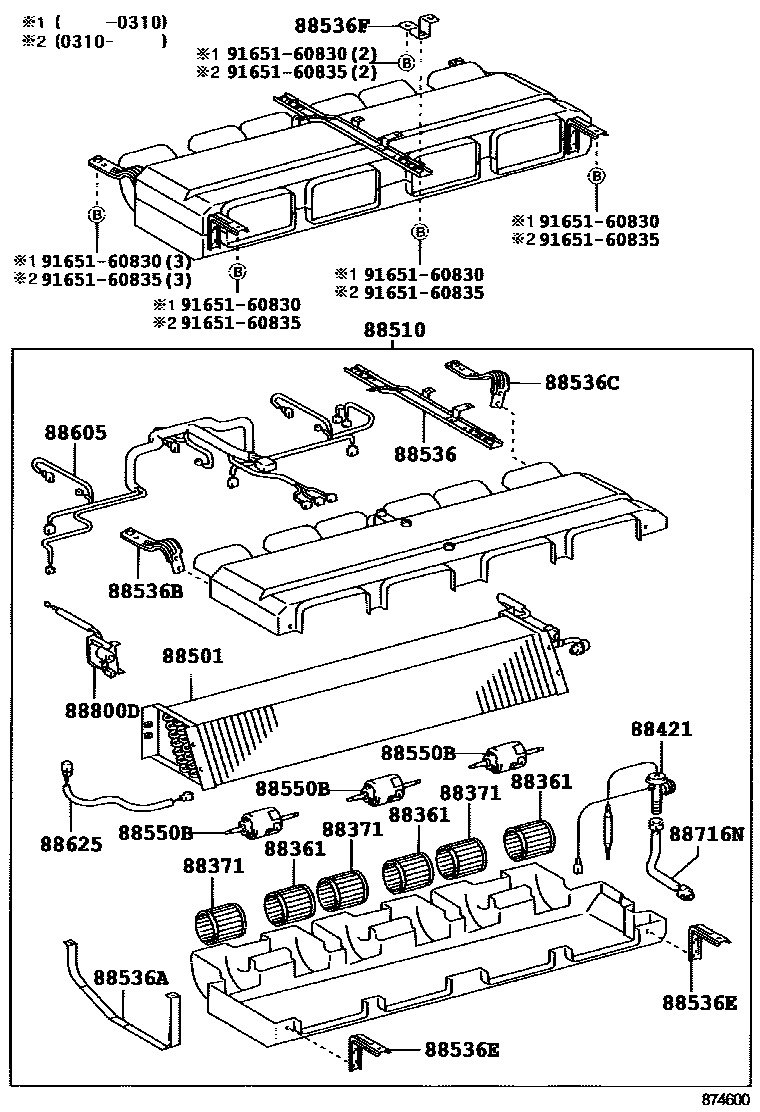

Toyota COASTER (CHINA) — HEATING & AIR CONDITIONING - COOLER UNIT

88361FAN, COOLER BLOWER, NO.1

main87105-36110iBB5#,RZB5#,TRB53,XZB53200012-200310

88371FAN, COOLER BLOWER, NO.2

main87105-36120iBB5#,RZB5#200012-200310

88421VALVE, EXPANSION, NO.2

main88421-36040iBB5#,RZB5#200012-200505

sub88421-36060

main88421-36060iBB5#,RZB5#,TRB53,XZB53200506

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-36110iBB5#,RZB5#200012-200310

88510UNIT ASSY, COOLER

main88510-0S050iTRB53,XZB53200707-201208

sub88510-0S051

main88510-0S051iTRB53,XZB53201209

main88510-36200iBB5#200012-200102

sub88510-36201

main88510-36201iBB5#200102-200701

main88510-36210iRZB5#200012-200102

sub88510-36211

main88510-36211iRZB5#,TRB53,XZB53200102-200706

sub88510-0S050

88536BRACKET, COOLING UNIT, NO.1

main88536-36160iBB5#,RZB5#200012-200310

88536ABRACKET, COOLING UNIT, NO.2

main88536-36170iBB5#,RZB5#200012-200310

88536BBRACKET, COOLING UNIT, NO.3

main88536-36180iBB5#,RZB5#,TRB53,XZB53200012-200310

88536CBRACKET, COOLING UNIT, NO.4

main88536-36190iBB5#,RZB5#,TRB53,XZB53200012-200310

88536EBRACKET, COOLING UNIT, NO.5

main88536-36140iBB5#,RZB5#200012-200310

88536FBRACKET, COOLING UNIT, NO.6

main88536-36150iBB5#,RZB5#200012-200310

88550BMOTOR ASSY, BLOWER

main88550-36180iBB5#200012-200701

main88550-36190iRZB5#,TRB53,XZB53200012-200310

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-0S430iTRB53,XZB53201209

main88605-36320iBB5#,RZB5#200012-201208

sub88605-0S430

88625THERMISTOR, COOLER, NO.1

main88625-36170iBB5#,RZB5#200012-200310

88716NPIPE, COOLER REFRIGERANT LIQUID, N

main88716-36460iBB5#,RZB5#200012-200310

88800DCOOLING UNIT SERVO

main88800-36030iBB5#200012-200701

main88800-36040iRZB5#,TRB53,XZB53200012-200310

9165160830

main91651-60830¥90

9165160835

main91651-60835¥90

18 parts on this diagram · 1 diagram in section
