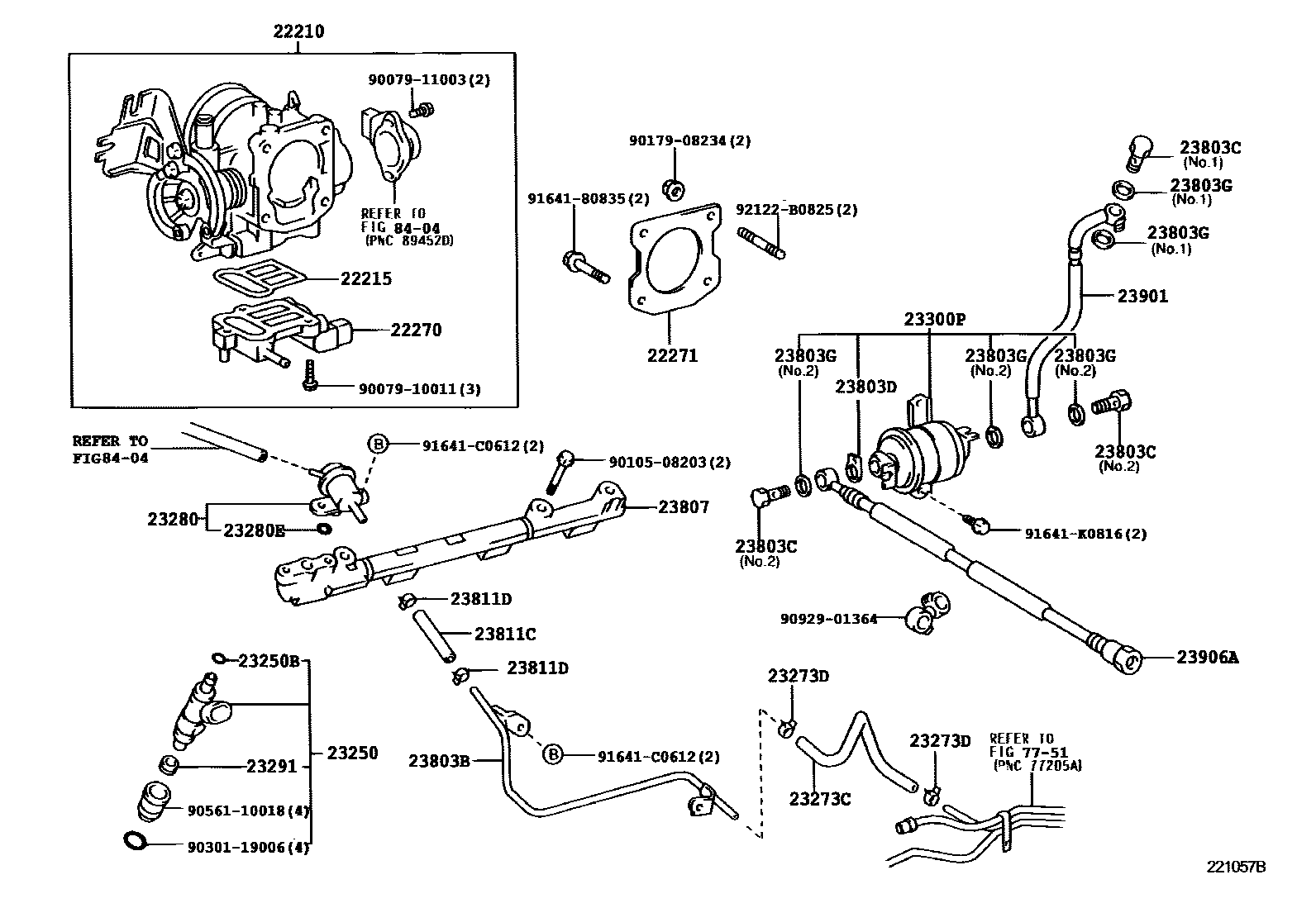

Toyota COASTER (CHINA) — FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23273CHOSE, FUEL, NO.2
23273DCLIP(FOR FUEL HOSE NO.2)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803GGASKET(FOR FUEL HOSE)
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
L=120
L=120
L=120
23811DCLIP, HOSE(FOR FUEL HOSE)
23901TUBE SUB-ASSY, FUEL
23906AHOSE SUB-ASSY, FUEL
7751
8404
9007910011
9007911003
9010508203
9017908234
9030119006
9056110018
9092901364
9164180835
91641C0612
91641K0816
92122B0825
34 parts on this diagram · 4 diagrams in section
