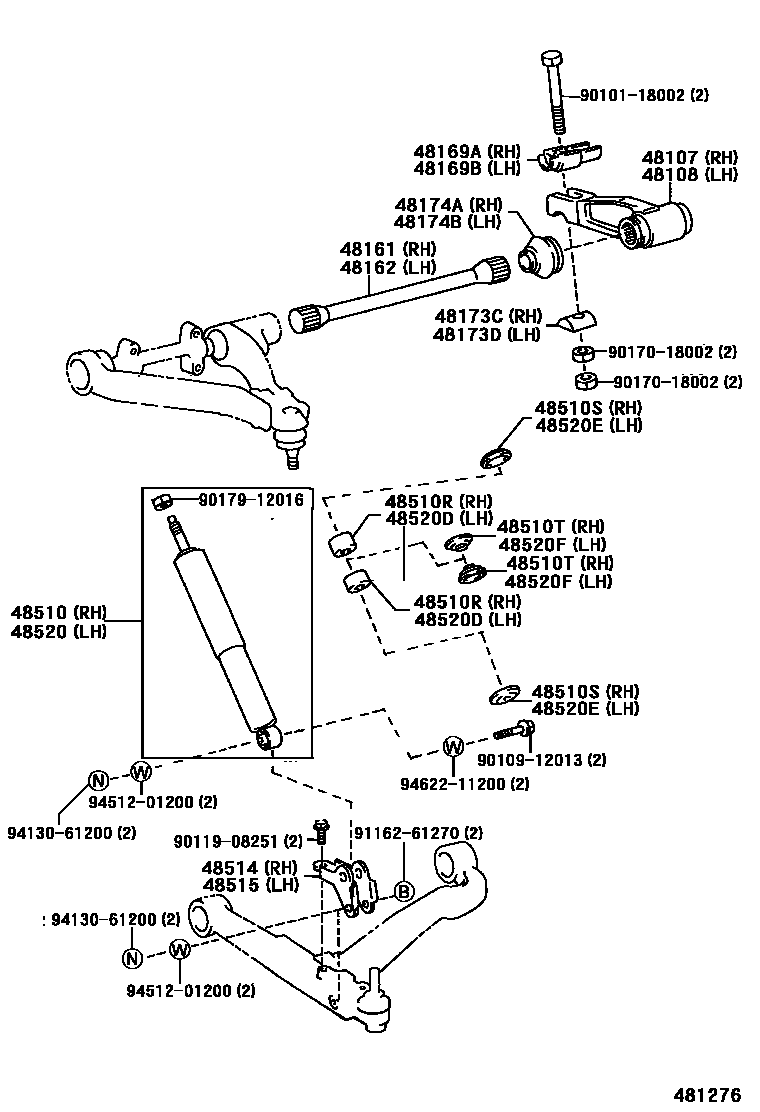

Toyota COASTER (CHINA) — FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
48169BSWIVEL, ANCHOR ARM, LH
48173CSEAT, ANCHOR ARM ADJUSTER, RH
48173DSEAT, ANCHOR ARM ADJUSTER, LH
48174ACOVER, TORSION BAR DUST, RH
48174BCOVER, TORSION BAR DUST, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48511-36310
MARK 48511-36270
MARK 48511-36240
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48511-36310
MARK 48511-36270
MARK 48511-36240
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
9010118002
9010912013
9011908251
9017018002
9017912016
9116261270
9413061200
9451201200
9462211200
29 parts on this diagram · 4 diagrams in section
