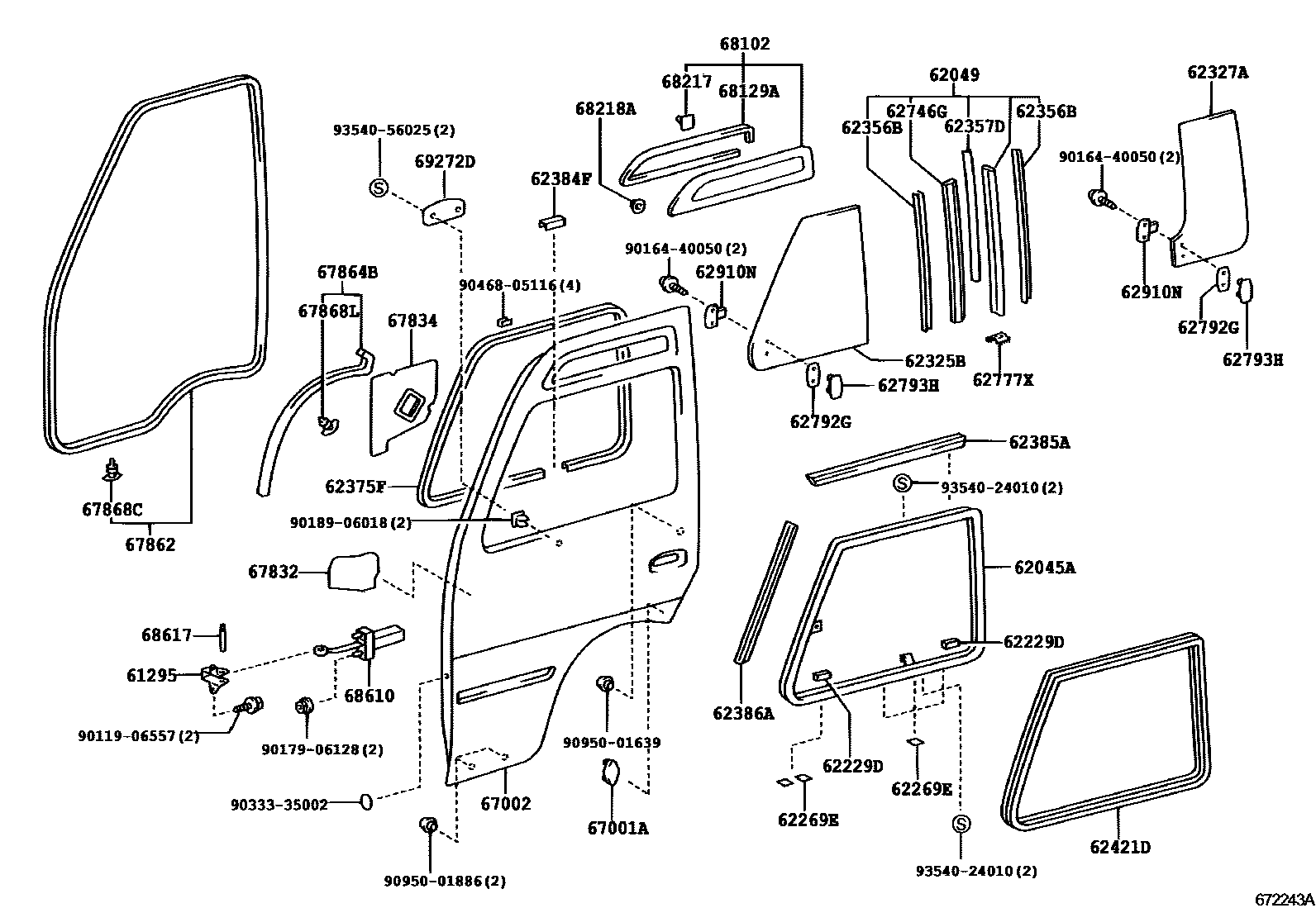

Toyota COASTER (CHINA) — FRONT DOOR PANEL & GLASS
61295BRACKET, FRONT DOOR CHECK ARM
62045AFRAME SUB-ASSY, FRONT DOOR WINDOW, OUTER LH
62049FRAME SUB-ASSY, FRONT DOOR WINDOW, CENTER LH
62229DPACKING, FRONT DOOR WINDOW
62269EFILM, FRONT DOOR WINDOW FRAME, RH
62325BGLASS, FRONT DOOR WINDOW, FRONT LH
*TT,T=5.0,GREEN
62327AGLASS, FRONT DOOR WINDOW, REAR LH
*TT,T=5.0,GREEN
62356BWEATHERSTRIP, FRONT DOOR WINDOW, CENTER
62357DWEATHERSTRIP, FRONT DOOR WINDOW, CENTER REAR
62375FCLIP, FRONT DOOR WINDOW
IVORY,TRIM4#
62384FCAP,FRONT DOOR WINDOW
62385ASEAL, FRONT DOOR WINDOW, NO.1
62386ASEAL, FRONT DOOR WINDOW, NO.2
62421DRUN, FRONT DOOR WINDOW, LH
62746GPACKING, QUARTER WINDOW
62777XCAP, FRONT DOOR WINDOW CENTER SASH, LH
62792GPACKING, SIDE WINDOW LOCK
62793HRETAINER, SIDE WINDOW LOCK
62910NLOCK ASSY, SIDE WINDOW
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67862WEATHERSTRIP, FRONT DOOR, LH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5,GREEN
68129ADAM, FRONT DOOR FIX WINDOW GLASS ADHESIVE
68217PIN, FRONT DOOR FIX WINDOW
BLACK
WHITE
68218ABUSH, FRONT DOOR FIX WINDOW
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
69272DHANDLE, FRONT DOOR INSIDE, LH
GREIGE,TRIM4#
9011906557
9016440050
9017906128
9018906018
9033335002
9046805116
9095001639
9095001886
9354024010
9354056025
44 parts on this diagram · 3 diagrams in section
