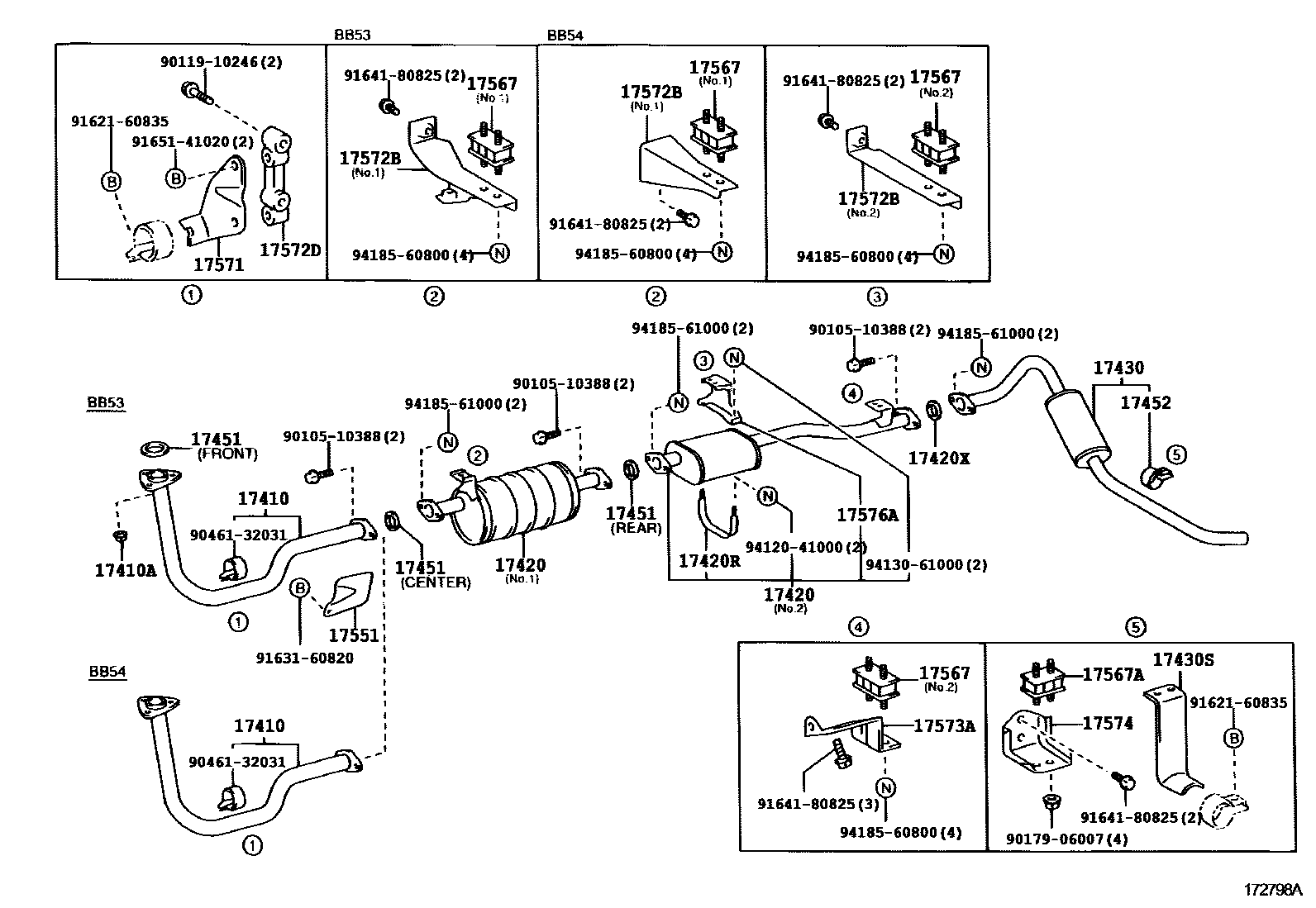

Toyota COASTER (CHINA) — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17420PIPE ASSY, EXHAUST, CENTER
NO.1
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
REAR
NO.2
FRONT
REAR
CENTER
NO.1
17452CLAMP, EXHAUST PIPE
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17567CUSHION, EXHAUST PIPE SUPPORT
NO.2
NO.1
17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
NO.1
NO.1
NO.2
NO.2
17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
9010510388
9011910246
9017906007
9046132031
9162160835
9163160820
9164180825
9165141020
9412041000
9413061000
9418560800
9418561000
30 parts on this diagram · 7 diagrams in section
