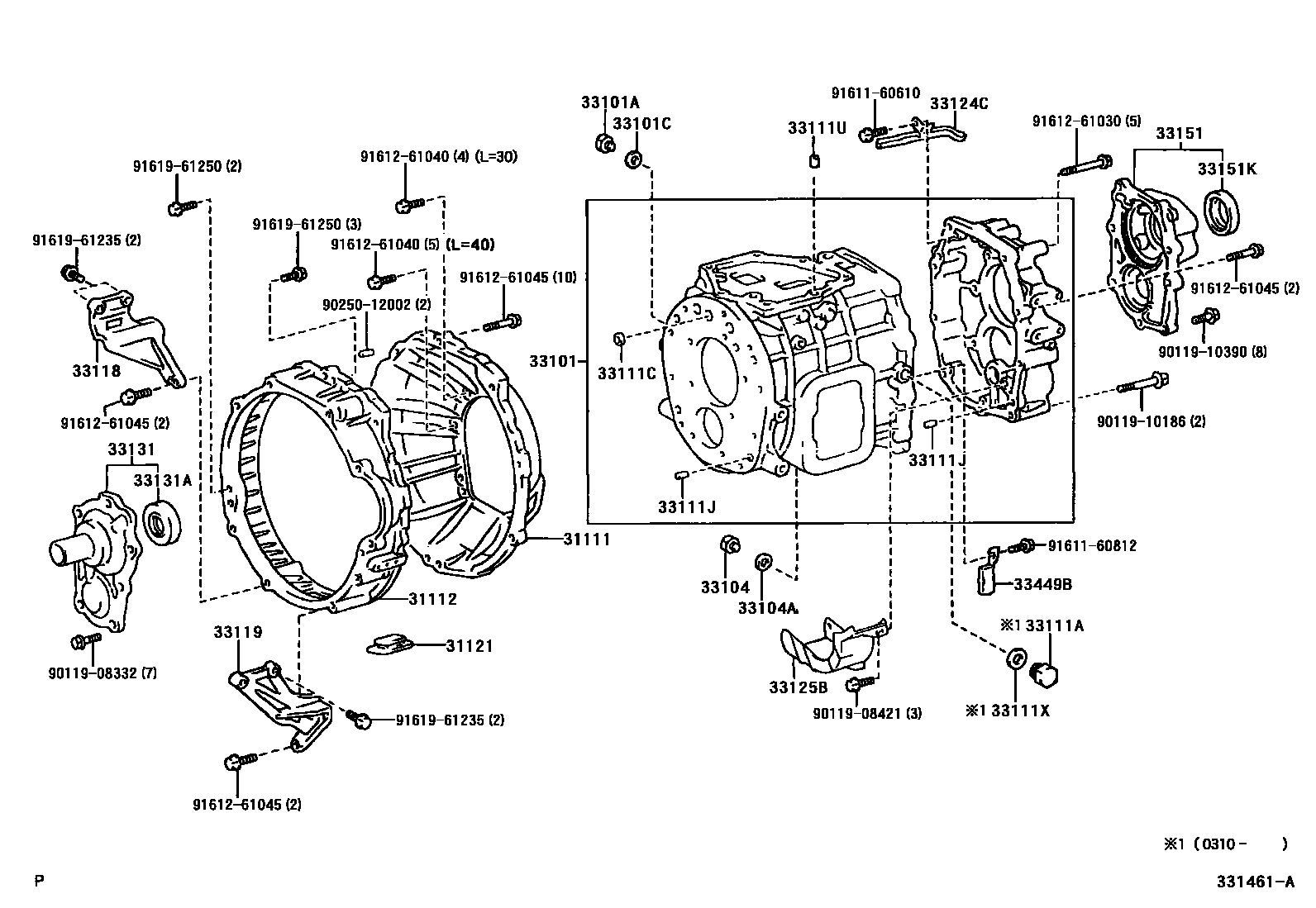

Toyota COASTER (CHINA) — CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M155 0002 1M156 0003 1M155 0004 1M156

31111HOUSING, CLUTCH

main31111-36360iBB5#200012-200310

main31111-36360iBB5#200310-200701

main31111-36370iRZB5#200012-200310

main31111-36370iRZB5#,TRB53200310

main31111-36390iXZB53200701

31112HOUSING, CLUTCH, FRONT

main31112-37012iBB5#..20S,23S,24S¥27,600200310-200701

main31112-37012iBB5#¥27,600200012-200310

main31112-37012iBB54..29S¥27,600200310-200411

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBB5#,RZB5#¥380200012-200310

sub31121-36110¥230

main31121-36040iBB5#,RZB5#,TRB53¥380200310-200708

sub31121-36110¥230

main31121-36110iTRB53¥230200708

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36110iBB5#,RZB5#200012-200310

main33101-36110iRZB5#,TRB53200310

main33101-36120iBB5#,XZB53200310

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iBB5#,RZB5#,TRB53,XZB53¥180200310

main90341-18006iBB5#,RZB5#¥180200012-200310

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iBB5#,RZB5#,TRB53,XZB53¥110200310

main90430-18008iBB5#,RZB5#¥110200012-200310

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iBB5#,RZB5#¥180200012-200310

main90341-18006iBB5#,RZB5#,TRB53,XZB53¥180200310

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iBB5#,RZB5#¥110200012-200310

main90430-18008iBB5#,RZB5#,TRB53,XZB53¥110200310

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iXZB53¥180200310

main90341-18006iBB54..29S¥180200310-200411

main90341-18006iBB5#..20S,23S,24S¥180200310-200701

33111CPLUG(FOR TRANSMISSION CASE)

main96411-11600iBB5#,RZB5#¥260200012-200310

main96411-11600iBB5#,RZB5#,TRB53,XZB53¥260200310

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iBB5#,RZB5#¥130200012-200310

L=16,OD=12

main90250-12002iBB5#,RZB5#,TRB53,XZB53¥130200310

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iBB5#,RZB5#¥120200012-200310

L=11,OD=11

main90253-11001iBB5#,RZB5#,TRB53,XZB53¥120200310

L=11,OD=11

main90253-13017iBB5#,RZB5#,TRB53,XZB53¥140200310

L=12,OD=13

main90253-13017iBB5#,RZB5#¥140200012-200310

L=12,OD=13

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iBB54..29S¥110200310-200411

main90430-18008iBB5#..20S,23S,24S¥110200310-200701

main90430-18008iXZB53¥110200310

33118PLATE, STIFFENER, RH(MTM)

main33118-36060iBB5#¥5,100200012-200310

main33118-36060iBB5#..20S,23S,24S¥5,100200310-200701

main33118-36060iBB54..29S¥5,100200310-200411

main33118-36070iRZB5#¥1,960200012-200310

main33118-36070iRZB54..30S¥1,960200310-200411

main33118-36070iRZB5#..20S,23S,24S¥1,960200310-200701

33119PLATE, STIFFENER, LH(MTM)

main33119-36070iBB5#¥3,580200012-200310

main33119-36070iBB54..29S¥3,580200310-200411

main33119-36070iBB5#..20S,23S,24S¥3,580200310-200701

main33119-36080iRZB5#¥3,280200012-200310

main33119-36080iRZB54..30S¥3,280200310-200411

main33119-36080iRZB5#..20S,23S,24S¥3,280200310-200701

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36060iBB5#,RZB5#200012-200310

main33124-36060iBB5#,RZB5#,TRB53200310

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36040iBB5#,RZB5#200012-200310

main33125-36040iRZB5#,TRB53200310

33131RETAINER, BEARING, FRONT(MTM)

main33018-36100iRZB5#200012-200310

main33018-36100iRZB5#,TRB53200310

main33018-36110iBB5#200012-200310

main33018-36110iBB5#200310-200701

main33018-36120iXZB53200701

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iRZB5#,TRB53¥350200310

main90311-32012iRZB5#¥350200012-200310

main90311-35023iBB5#,XZB53¥240200310

main90311-35023iBB5#¥240200012-200310

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36060iBB5#,RZB5#200012-200310

sub33017-36061

main33017-36060iRZB5#200310-200701

sub33017-36061

main33017-36061iTRB53200701

main33017-36070iBB5#,XZB53200310

33151KSEAL, TYPE T OIL

main90311-48011iBB5#,RZB5#¥470200012-200310

main90311-48011iBB5#,RZB5#,TRB53,XZB53¥470200310

33449BMAGNET, TRANSMISSION

main33449-36010iBB5#,RZB5#¥900200012-200310

main33449-36010iRZB5#,TRB53¥900200310

main33449-60010iXZB53¥310200701

9011908332

main90119-08332¥370

9011908421

main90119-08421¥100

9011910186

main90119-10186¥140

9011910390

main90119-10390¥110

9025012002

main90250-12002¥130

9161160610

main91611-60610¥120

9161160812

main91611-60812¥140

9161261030

main91612-61030¥110

9161261040

main91612-61040¥130

9161261045

main91612-61045¥120

9161961235

main91619-61235¥130

9161961250

main91619-61250¥140

34 parts on this diagram · 4 diagrams in section
