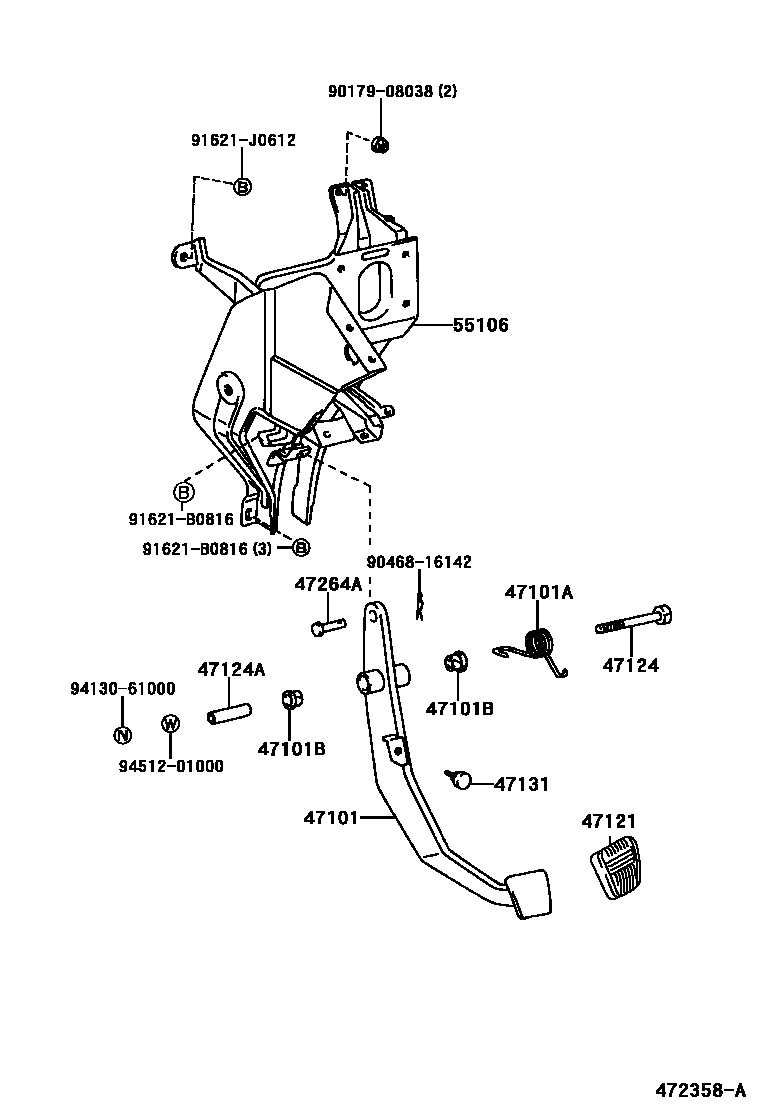

Toyota COASTER (CHINA) — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-36140iBB5#,RZB5#200012-200310

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iBB5#,RZB5#¥200200012-200310

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBB5#,RZB5#¥160200012-200310

47121PAD, BRAKE PEDAL

main31321-14020iBB5#,RZB5#¥200200012-200310

47124SHAFT, BRAKE PEDAL

main91112-61070iBB5#,RZB5#¥260200012-200310

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBB5#,RZB5#¥210200012-200310

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBB5#,RZB5#¥110200012-200310

47264APIN(FOR PUSH ROD)

main90240-10085iBB5#,RZB5#¥280200012-200310

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-36030iBB5#,RZB5#¥21,700200012-200701

main55106-36070iTRB53,XZB53¥18,100200701

9017908038

main90179-08038¥130

9046816142

main90468-16142¥70

91621B0816

main91621-B0816¥90

91621J0612

main91621-J0612¥70

9413061000

main94130-61000¥70

9451201000

main94512-01000¥90

15 parts on this diagram · 1 diagram in section
