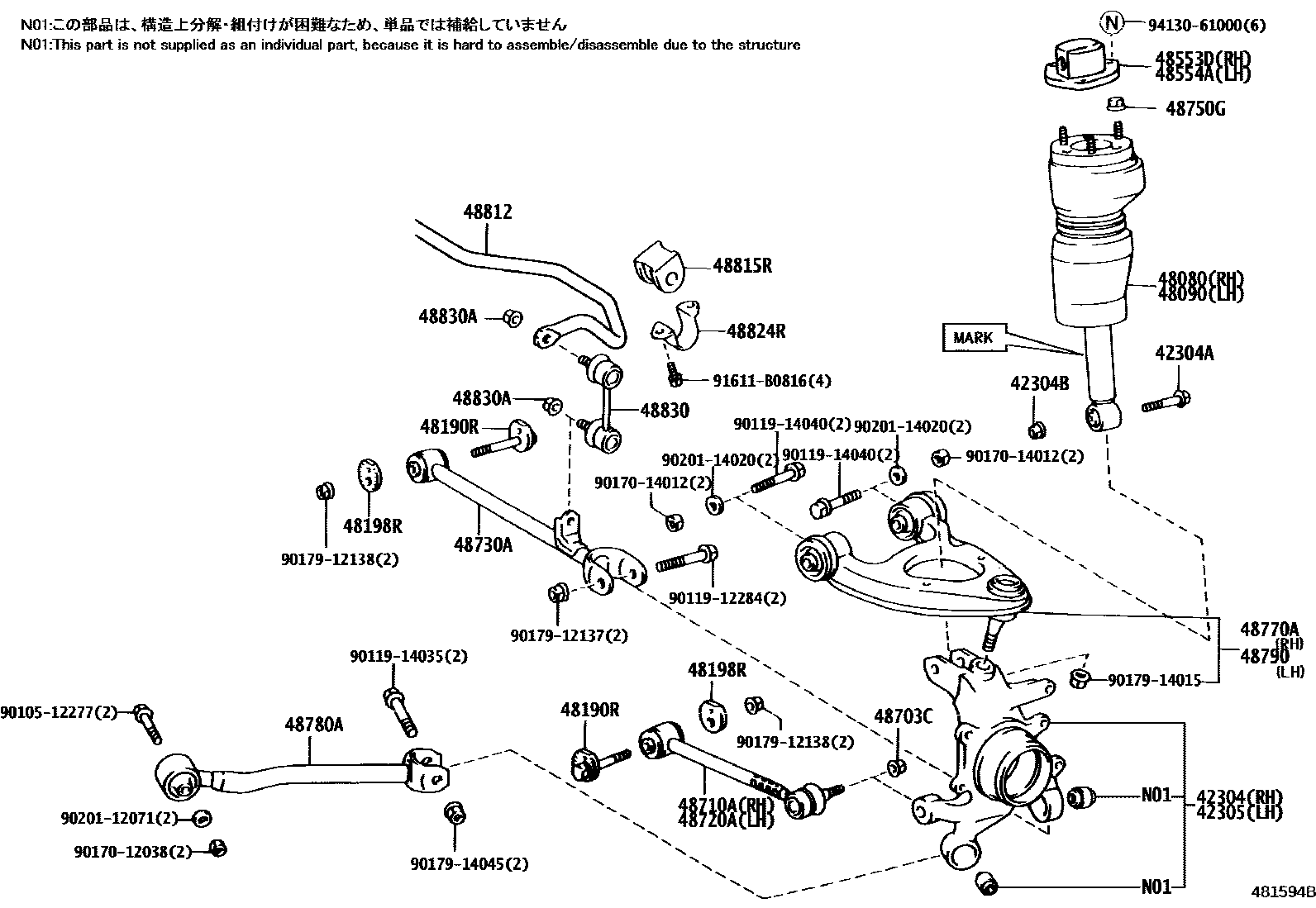

Toyota CENTURY — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
48190RCAM ASSY, CAMBER ADJUST
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48703CNUT(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730AARM ASSY, REAR SUSPENSION, NO.2
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48770AARM ASSY, UPPER CONTROL, REAR RH
48780AROD ASSY, STRUT, REAR
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
48830LINK ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
9010512277
9011912284
9011914035
9011914040
9017012038
9017014012
9017912137
9017912138
9017914015
9017914045
9020112071
9020114020
91611B0816
9413061000
37 parts on this diagram · 2 diagrams in section
