Toyota CENTURY — RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-40010iGZG50¥25,800199704-200712

sub53101-40020¥25,800

main53101-40020iGZG50¥25,800200801

53112AGRILLE, RADIATOR, LOWER

main53112-40020iGZG50¥24,300199704-200501

53114AGRILLE, RADIATOR, INNER

main53114-40010iGZG50¥54,900199704-200712

sub53114-40011¥54,900

main53114-40011iGZG50¥54,900200801

53119BPROTECTOR, RADIATOR GRILLE

main53119-40010iGZG50¥1,070199704-200501

53129APIPE, RADIATOR GRILLE

main53129-50010iGZG50¥120199704-200501

7501

9010904015

main90109-04015¥110

9011906489

main90119-06489¥120

9014940019

main90149-40019¥120

9015960431

main90159-60431¥70

9016840027

main90168-40027¥80

9017905102

main90179-05102¥90

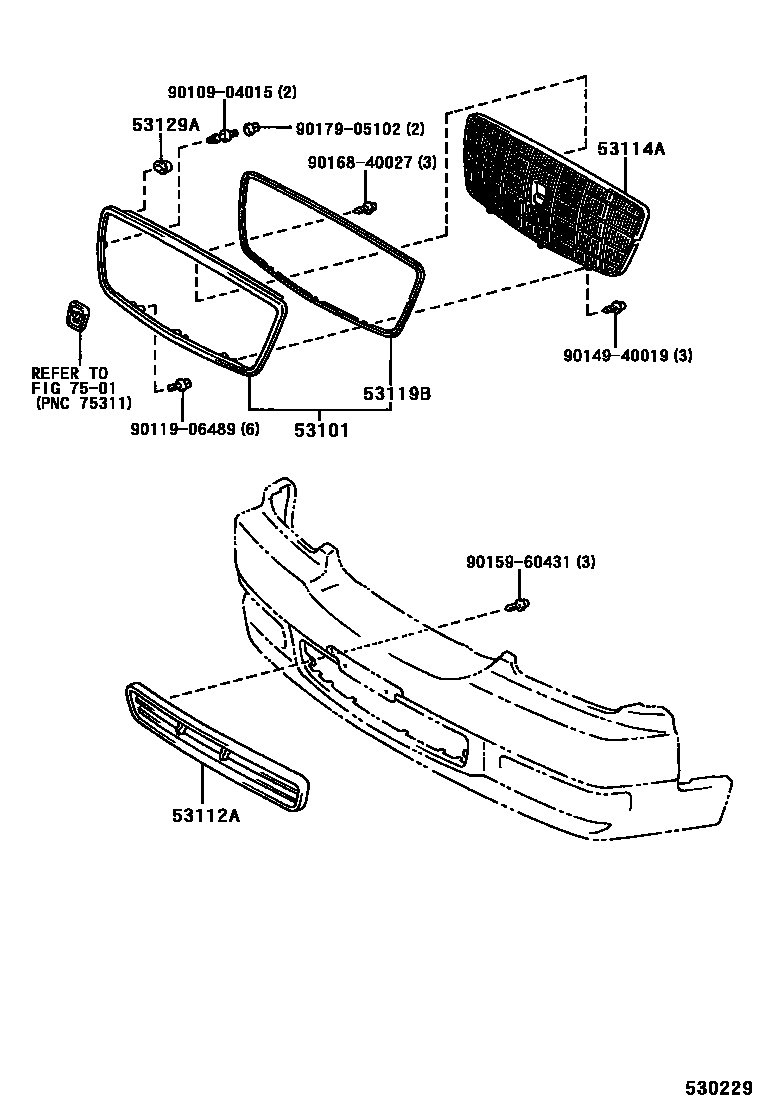

12 parts on this diagram · 1 diagram in section
