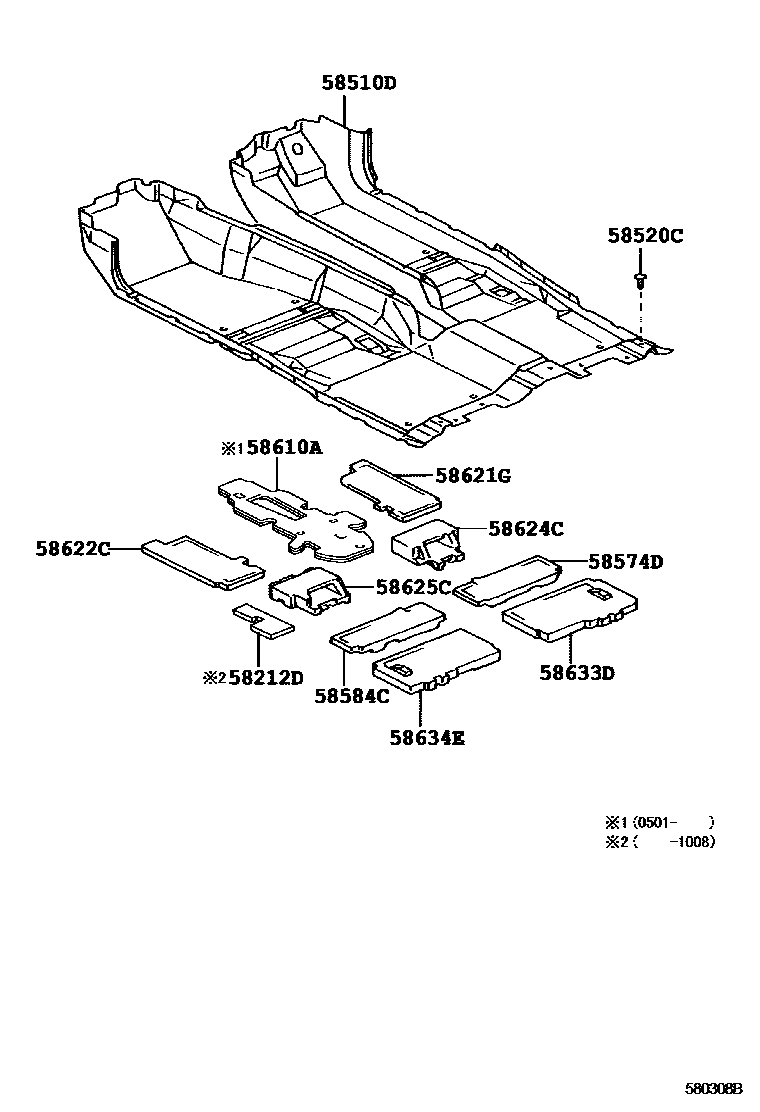

Toyota CENTURY — MAT & CARPET

58212DSEAL, CENTER FLOOR

main58212-40010iGZG50¥3,870201008

58510DCARPET ASSY, FLOOR, FRONT

main58510-40010-B0iGZG50199704-200501

MD.GRAY,TRIM1#

main58510-40010-B1iGZG50199704-200501

DK.BLUE GRAY,TRIM8#

main58510-40010-E0iGZG50199704-200501

ORCHID,TRIM4#

main58510-40110-B0iGZG50200501-201008

MD.GRAY,TRIM1#

main58510-40110-B1iGZG50200501-201008

DK.BLUE GRAY,TRIM8#

main58510-40110-E0iGZG50200501-201008

ORCHID,TRIM4#

main58510-40120-B0iGZG50201008-201011

MD.GRAY,TRIM1#

sub58510-40121¥114,000

main58510-40120-B1iGZG50201008-201011

DK.BLUE GRAY,TRIM8#

sub58510-40121¥114,000

main58510-40120-E0iGZG50201008-201011

ORCHID,TRIM4#

sub58510-40121¥114,000

main58510-40121-B2iGZG50201103-201701

DK.BLUE GRAY,TRIM8#

main58510-40121-B3iGZG50201012-201701

MD.GRAY,TRIM1#

main58510-40121-E1iGZG50201103-201701

ORCHID,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iGZG50199704-200501

BLACK,TRIM1#,4#,8#

sub90467-06016¥230

sub90467-07049¥90

main90467-06016-C0iGZG50200501-201701

BLACK

sub90467-06016¥230

sub90467-07049¥90

58574DPAD, FRONT FLOOR, CENTER NO.2 RH

main58574-40010iGZG50¥2,060199704-200501

58584CPAD, FRONT FLOOR, CENTER NO.2 LH

main58584-40010iGZG50¥2,060199704-200501

58610ASHEET ASSY, FRONT FLOOR SILENCER, NO.1

main58610-40010iGZG50..6FC¥15,900200501

main58610-40020iGZG50..6HC¥17,200200501

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-40020iGZG50¥3,180199704-200501

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-40020iGZG50¥3,180199704-200501

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-40010iGZG50¥2,500199704-200501

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-40010iGZG50¥2,500199704-201008

main58625-40020iGZG50¥3,820201008

58633DPAD, FRONT FLOOR SILENCER, REAR RH

main58633-40010iGZG50¥4,470199704-200501

58634EPAD, FRONT FLOOR SILENCER, REAR LH

main58634-40020iGZG50¥4,470199704-200501

12 parts on this diagram · 1 diagram in section
