Toyota CENTURY — HORN

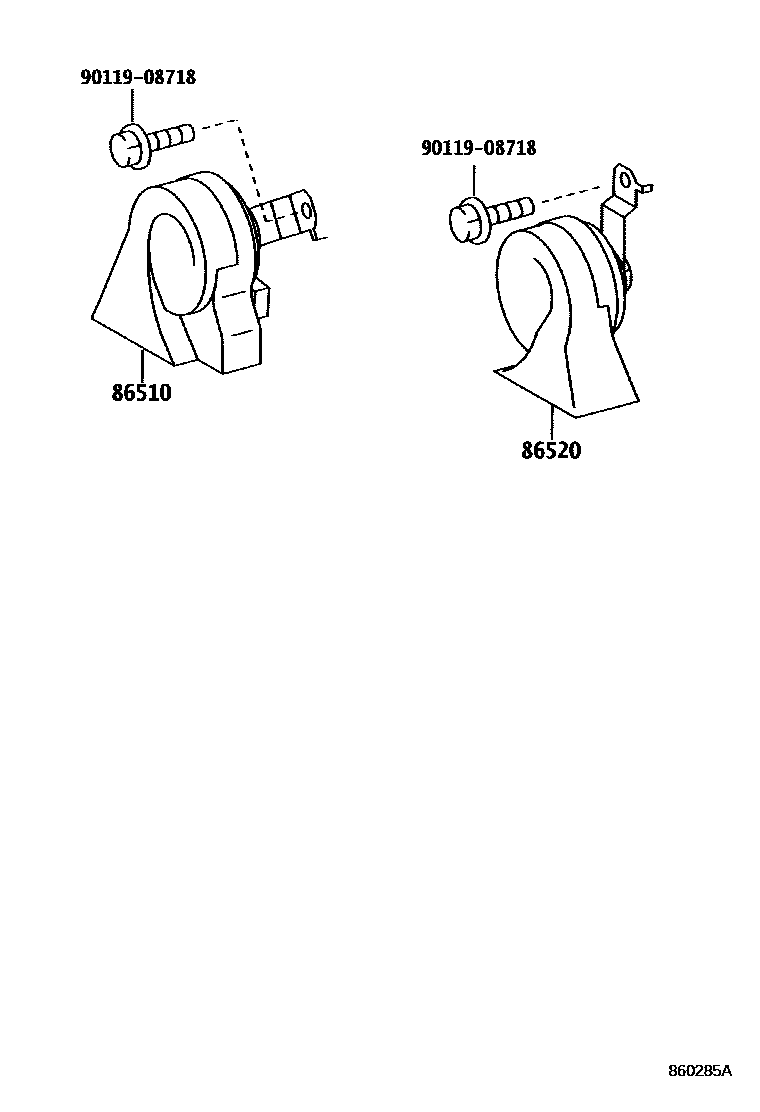

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-40060i¥3,940200205-200501

main86540-40040i¥3,610199704-200205

86520HORN ASSY, LOW PITCHED

main86520-40060i¥3,610199704-200205

main86520-40070i¥3,940200205-200501

9011908718

main90119-08718¥180

3 parts on this diagram · 1 diagram in section
