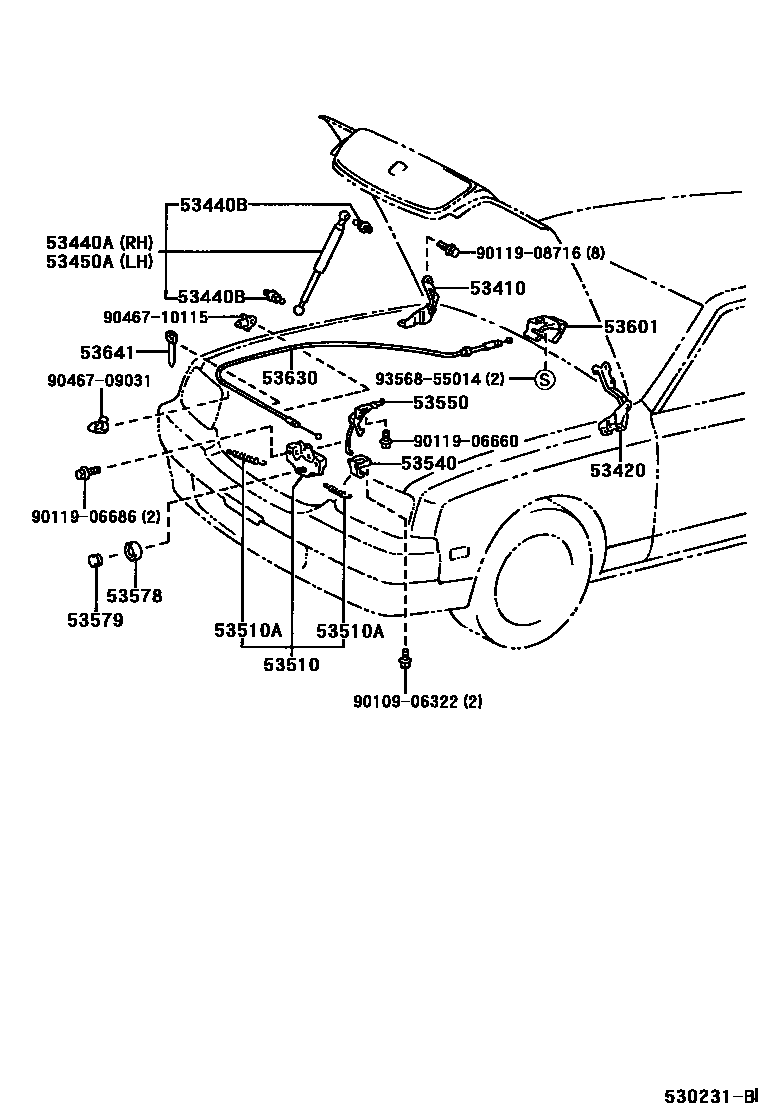

Toyota CENTURY — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-40010iGZG50¥4,040199704-201701

main53410-40020iGZG50¥4,040200301-200501

sub53410-40010¥4,040

main53410-40020iGZG50¥4,040200501-201101

sub53410-40010¥4,040

53420HINGE ASSY, HOOD, LH

main53420-40010iGZG50¥4,040199704-200501

sub53420-40020¥4,040

main53420-40020iGZG50¥4,040200301-200501

main53420-40020iGZG50¥4,040200501-201701

53440ASUPPORT ASSY, HOOD, RH

main53440-49105iGZG50¥11,300199704-200501

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051iGZG50¥430199704-200501

53450ASUPPORT ASSY, HOOD, LH

main53450-49075iGZG50¥11,300199704-200501

53510LOCK ASSY, HOOD

main53510-40020iGZG50¥3,200199704-200501

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iGZG50¥100199704-200501

main90506-18078iGZG50199704-200501

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30010iGZG50¥2,270199704-200002

main53540-30020iGZG50¥2,260200002-200501

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-40010iGZG50¥4,780199704-200002

sub53550-40011¥4,790

sub53540-30020¥2,260

main53550-40011iGZG50¥4,790200002-200501

53578NUT, HOOD LOCK

main53578-50010iGZG50¥110199704-200501

53579CAP, HOOD LOCK NUT

main53579-50010iGZG50¥100199704-200501

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-B2iGZG50199704-201701

DK.BLUE GRAY,TRIM8#

sub53601-20060¥2,590

main53601-20060-E4iGZG50199704-201701

ORCHID,TRIM4#

sub53601-20060¥2,590

main53601-20060-S4iGZG50199704-201701

MD.GRAY,TRIM1#

sub53601-20060¥2,590

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-40030iGZG50¥1,760199704-200501

53641CLAMP, HOOD LOCK CONTROL WIRE

main90463-13003iGZG50¥180199704-200501

9010906322

main90109-06322¥60

9011906660

main90119-06660¥120

9011906686

main90119-06686¥80

9011908716

main90119-08716¥100

9046709031

main90467-09031¥200

9046710115

main90467-10115¥120

9356855014

main93568-55014¥70

21 parts on this diagram · 1 diagram in section
