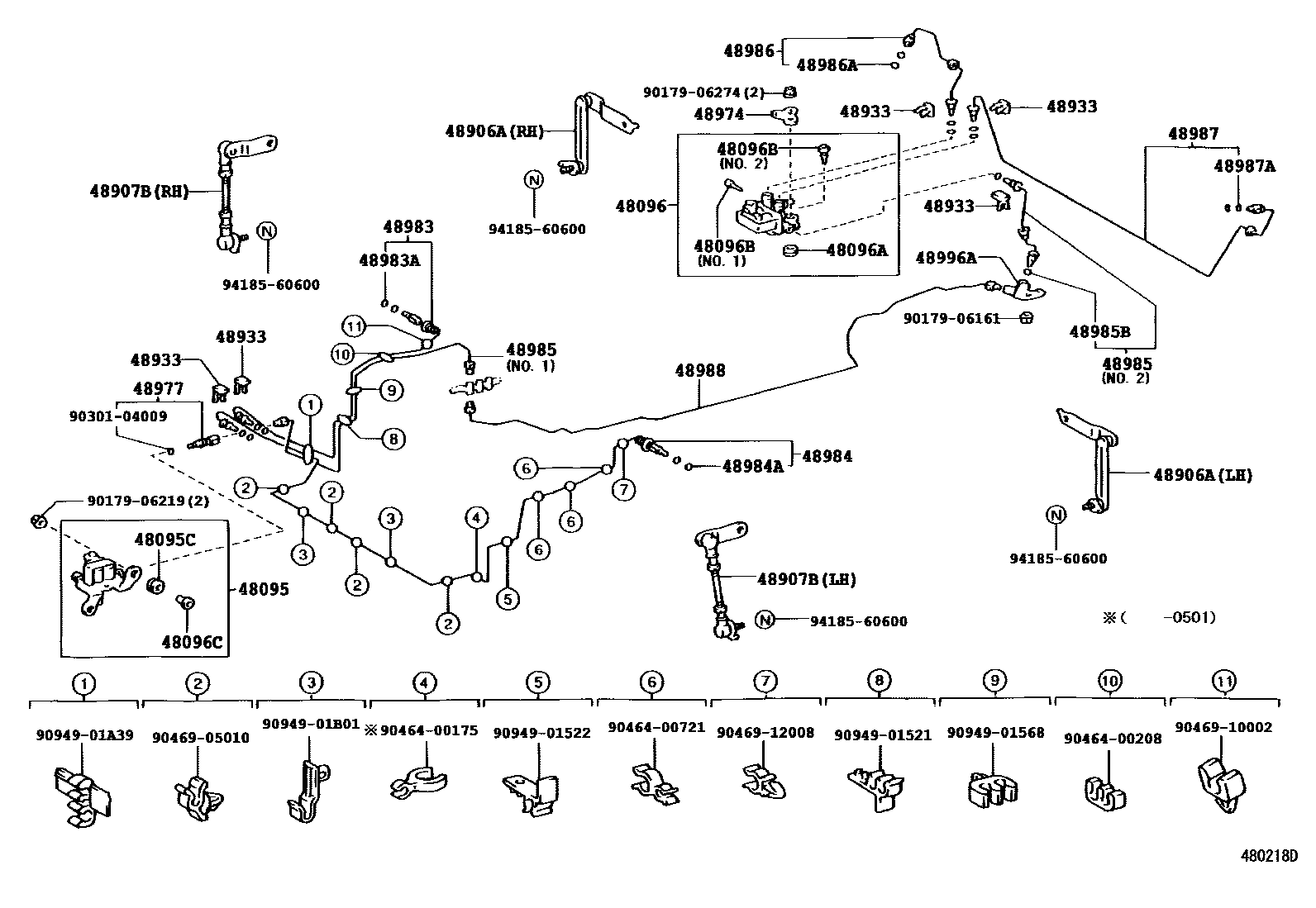

Toyota CENTURY — HEIGHT CONTROL (AUTO-LEVELER)
48095VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48095CBUSH(FOR HEIGHT CONTROL VALVE NO.1)
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096ABUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48096BCUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
�m�n�D�P
�m�n�D�P
�m�n�D�Q
�m�n�D�Q
48096CSPACER, NO.2(FOR HEIGHT CONTROL VALVE)
48906ALINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
�E��
����
�E��
�E��
����
����
48907BLINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
�E��
�E��
����
����
48933HOLDER, AIR CONNECTOR CLIP
48974BRACKET, HEIGHT CONTROL VALVE
48983TUBE, HEIGHT CONTROL, NO.3
48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)
48984TUBE, HEIGHT CONTROL, NO.4
48984ARING, O(FOR HEIGHT CONTROL TUBE NO.4)
48985TUBE, HEIGHT CONTROL, NO.5
�m�n�D�P
�m�n�D�P
�m�n�D�Q
�m�n�D�Q
48985BRING, O(FOR HEIGHT CONTROL TUBE NO.5)
48986TUBE, HEIGHT CONTROL, NO.6
48986ARING, O(FOR HEIGHT CONTROL NO.6 TUBE)
48987TUBE, HEIGHT CONTROL, NO.7
48987ARING, O(FOR HEIGHT CONTROL NO.7 TUBE)
48988TUBE, HEIGHT CONTROL, NO.8
48996AWAY, NO.3(FOR REAR HEIGHT CONTROL TUBE)
9017906161
9017906219
9017906274
9030104009
9046400175
9046400208
9046400721
9046905010
9046910002
9046912008
9094901521
9094901522
9094901568
9094901A39
9094901B01
9418560600
39 parts on this diagram · 3 diagrams in section
