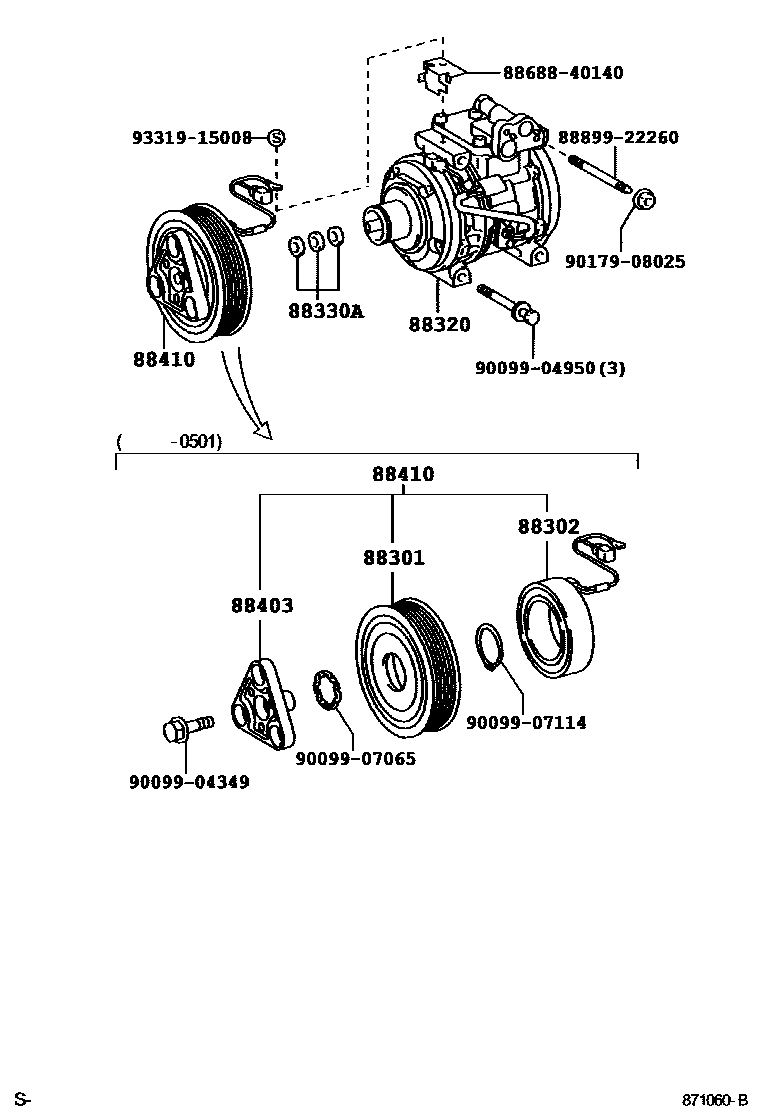

Toyota CENTURY — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-40040iGZG50199704-200501

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-40050iGZG50199704-200501

88320COMPRESSOR ASSY, COOLER

main88320-40070iGZG50199704-200501

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGZG50199704-200501

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-2A010iGZG50199704-200501

88410CLUTCH ASSY, MAGNET

main88410-40070iGZG50¥43,500199704-200501

8868840140BRACKET, COOLER DIAPHRAGM

main88688-40140

8889922260COVER, EVAPORATOR

main88899-22260¥0

9009904349

main90099-04349

9009904950

main90099-04950¥0

9009907065

main90099-07065¥90

9009907114

main90099-07114

9017908025

main90179-08025¥80

9331915008

main93319-15008¥170

14 parts on this diagram · 1 diagram in section
