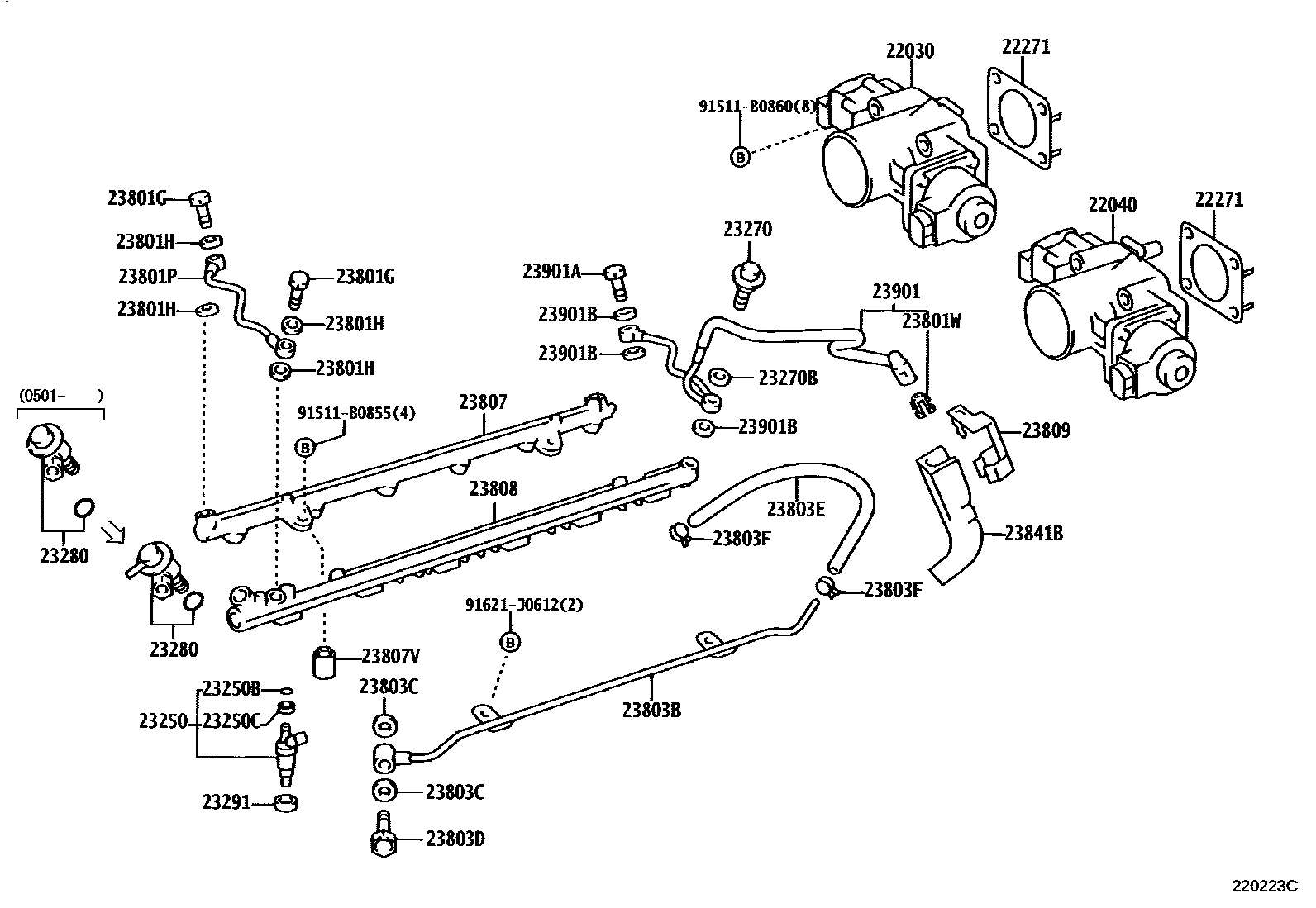

Toyota CENTURY — FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22040BODY ASSY, THROTTLE W/MOTOR, LH
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
CNG��
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23801WCLIP, FUEL TUBE CONNECTOR
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
CNG��
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
CNG��
23809SUPPORT SUB-ASSY, FUEL PIPE
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23901TUBE SUB-ASSY, FUEL
23901ABOLT, UNION(FOR FUEL TUBE)
23901BGASKET(FOR FUEL TUBE)
91511B0855
91511B0860
91621J0612
30 parts on this diagram · 3 diagrams in section
