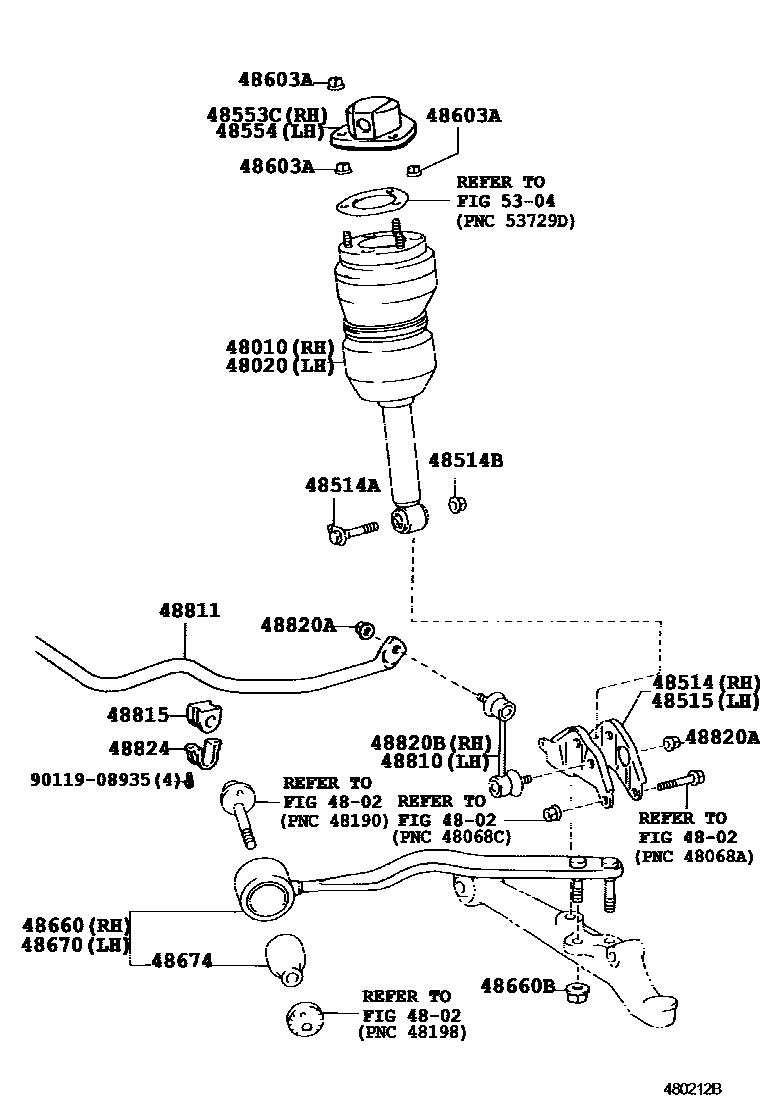

Toyota CENTURY — FRONT SPRING & SHOCK ABSORBER
48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER
4802
48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514ABOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
48514BNUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48553CCAP, FRONT SHOCK ABSORBER, RH
48554CAP, FRONT SHOCK ABSORBER, LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48660BAR ASSY, STRUT, RH
48660BNUT(FOR STRUT BAR)
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
5304
9011908935
22 parts on this diagram · 1 diagram in section
