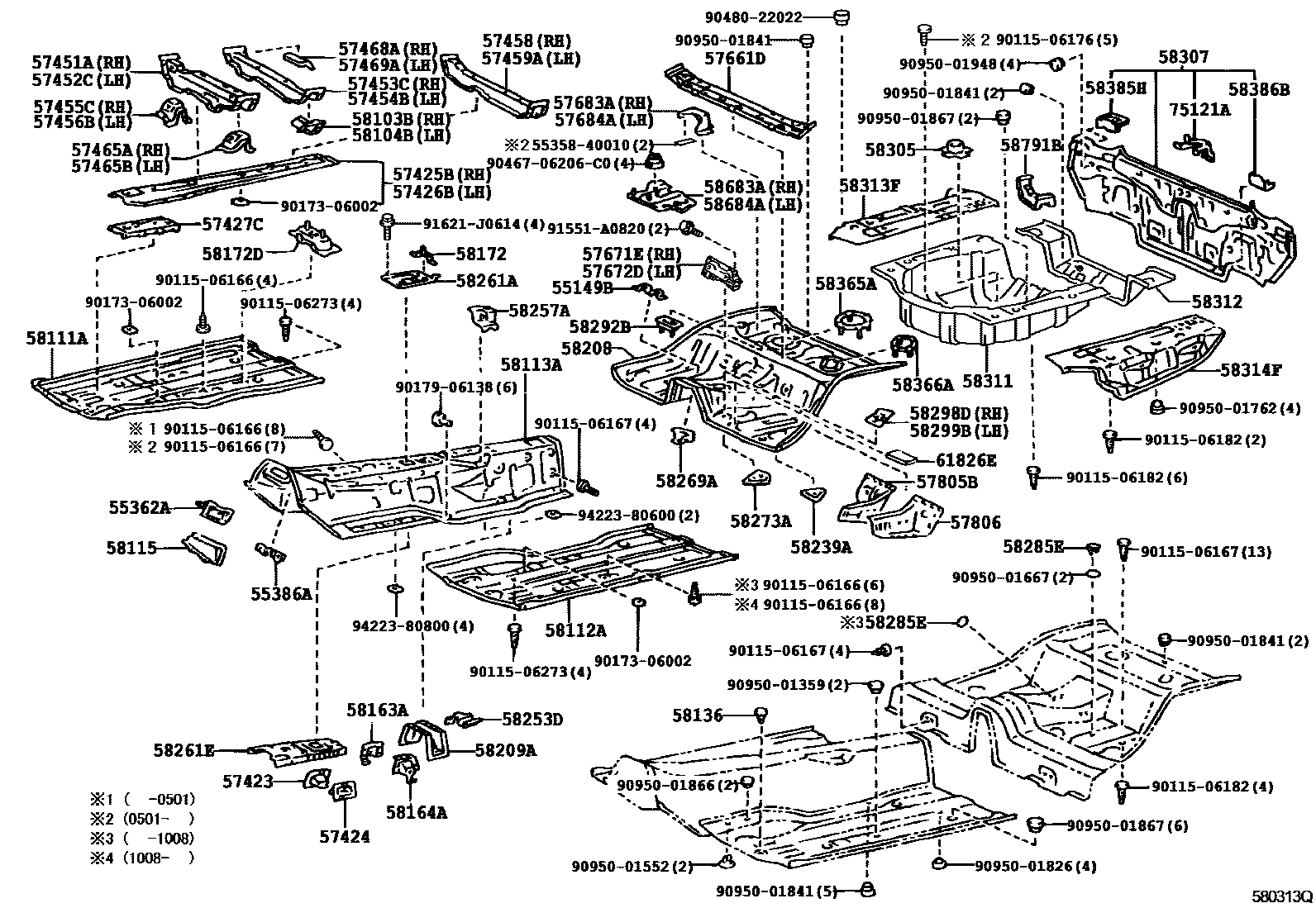

Toyota CENTURY — FLOOR PAN & LOWER BACK PANEL
55149BBRACKET, JUNCTION BLOCK
55362ABRACKET, PARKING BRAKE MOUNTING
55386ABRACKET, COMPUTER MOUNTING, NO.1
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57427CREINFORCEMENT, FRONT FLOOR, UPPER
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459AMEMBER, FRONT FLOOR CROSS, NO.2
57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH
57465BBRACKET, FRONT SEAT, INNER
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
57671EBRACKET, REAR SEATBACK HINGE MOUNTING, RH
57672DBRACKET, REAR SEATBACK HINGE MOUNTING, LH
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57684ABRACKET, FUEL TANK MOUNTING, NO.2
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH
58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136COVER, FRONT FLOOR HOLE
58163ARETAINER, CONSOLE BOX MOUNTING, NO.1
58164ARETAINER, CONSOLE BOX MOUNTING
58172BRACKET, COMPUTER MOUNTING, NO.3
58172DBRACKET, COMPUTER MOUNTING, NO.4
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58239APLATE, BELT ANCHOR NUT
58253DBRACKET, PARKING BRAKE CABLE
58257ACLAMP, PARKING BRAKE CABLE, NO.2
58261ACOVER, TRANSMISSION
58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3
58273AREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, RH
58285ECOVER, CENTER FLOOR HOLE
58292BREINFORCEMENT, FUEL FILTER MOUNTING
58298DREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58312PANEL, REAR BODY FLOOR, NO.1
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58365ABRACKET, FUEL TANK SUPPORT, RH
58366ABRACKET, FUEL TANK SUPPORT, LH
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58683APANEL, CENTER FLOOR SILENCER, RH
58684APANEL, CENTER FLOOR SILENCER, LH
58791BCARRIER, JACK
61826EPLATE, NOISE CONTROL, NO.3
75121ABRACKET, REAR LICENSE PLATE
5535840010PLATE, WATER PROOF
9011506166
9011506167
9011506176
9011506182
9011506273
9017306002
9017906138
9046706206C0
main90467-06206C0
9048022022
9095001359
9095001552
9095001667
9095001762
9095001826
9095001841
9095001866
9095001867
9095001948
91551A0820
91621J0614
9422380600
9422380800
89 parts on this diagram · 3 diagrams in section
