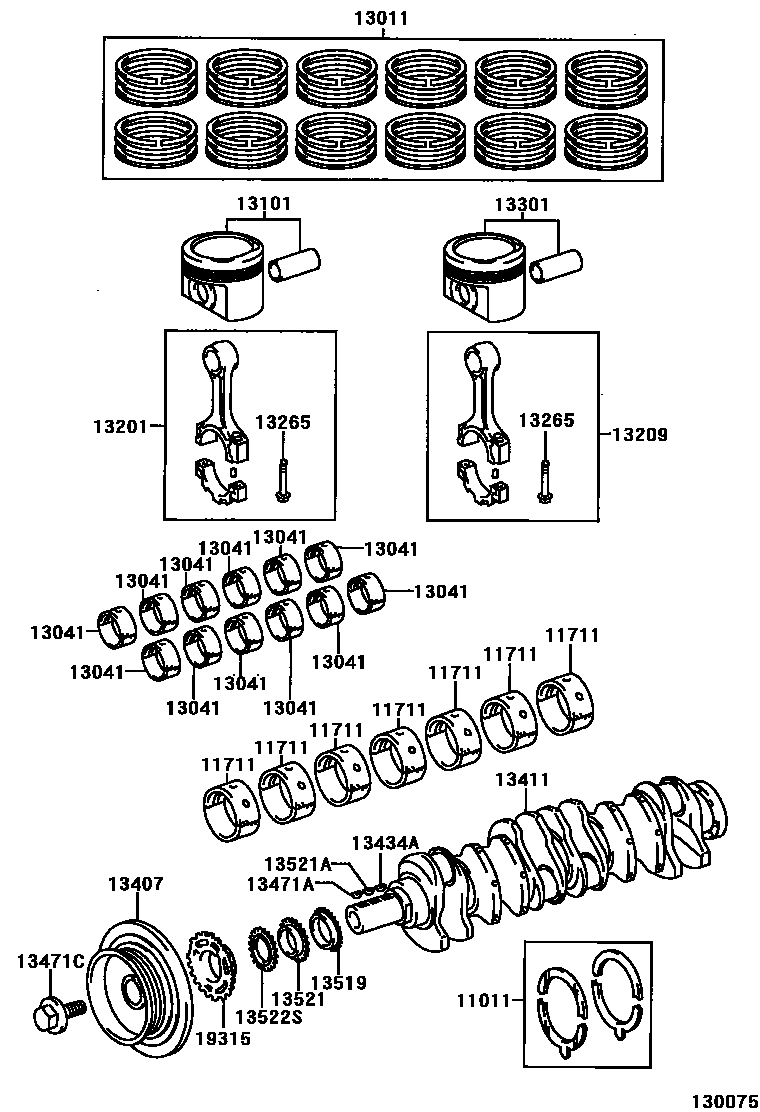

Toyota CENTURY — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
13101PISTON SUB-ASSY, W/PIN
13201ROD SUB-ASSY, CONNECTING
13209ROD SUB-ASSY, CONNECTING, LH
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13522SSPROCKET, CRANKSHAFT TIMING, LH
19315PLATE, CRANK ANGLE SENSOR, NO.1
19 parts on this diagram · 1 diagram in section
