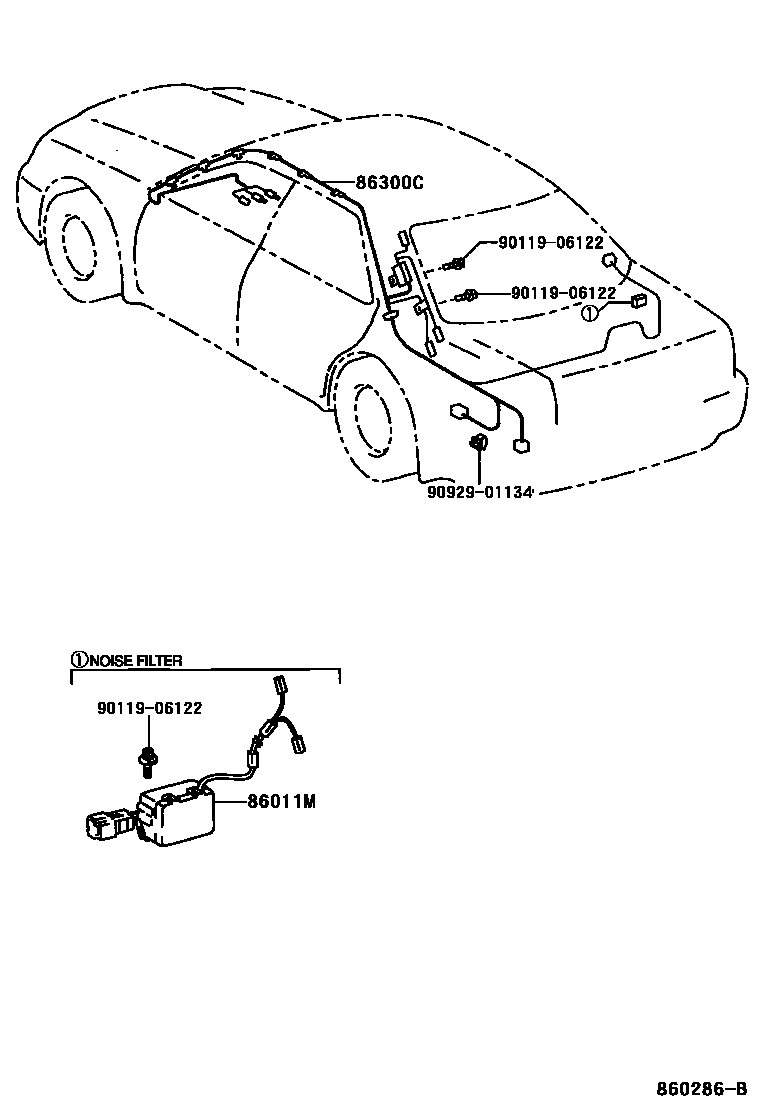

Toyota CENTURY — ANTENNA

0001 1 0002 1 0003 1 0004 1

86011MFILTER, NOISE

main90980-05301iGZG50¥7,000199704-201008

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-40110iGZG50¥19,800199704-200004

main86300-40140iGZG50¥30,100200004-200407

main86300-40141iGZG50¥19,900200407-200501

main86300-40160iGZG50¥30,100200501-200801

main86300-40170iGZG50¥29,800200801-201008

main86300-40180iGZG50¥36,500201008

9011906122

main90119-06122¥80

9092901134

main90929-01134¥220

4 parts on this diagram · 4 diagrams in section
