Toyota CENTURY — ABS & VSC

0001 1 0002 1 0003 1

88263ARELAY, SKID CONTROL

main88263-21010iGZG50¥2,740200501

main88263-24020iGZG50¥3,890199704-200501

88263ERELAY, SKID CONTROL NO.2

main88263-24030iGZG50¥3,890199704-200501

main88263-32070iGZG50¥2,810200501

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-40070iGZG50¥900199704-200501

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-40070iGZG50199704-200004

main88268-40070iGZG50200004-200501

main88268-40090iGZG50200004-200501

89540COMPUTER ASSY, SKID CONTROL

main89541-40041iGZG50¥139,000199704-199710

sub89541-40042¥139,000

main89541-40042iGZG50¥139,000199710-200004

main89541-40060iGZG50¥269,000200004-200501

89542SENSOR, SPEED, FRONT RH

main89542-50041iGZG50¥21,800199704-201701

89543SENSOR, SPEED, FRONT LH

main89543-50041iGZG50¥21,800199704-201701

89545SENSOR, SPEED, REAR RH

main89545-50030iGZG50¥21,800199704-201701

89546SENSOR, SPEED, REAR LH

main89546-50030iGZG50¥21,800199704-201701

9011906375

main90119-06375¥70

9017906159

main90179-06159¥70

9017906161

main90179-06161¥70

91621J0614

main91621-J0614¥110

91651B0610

main91651-B0610¥120

91651B0616

main91651-B0616¥80

9326954010

main93269-54010¥60

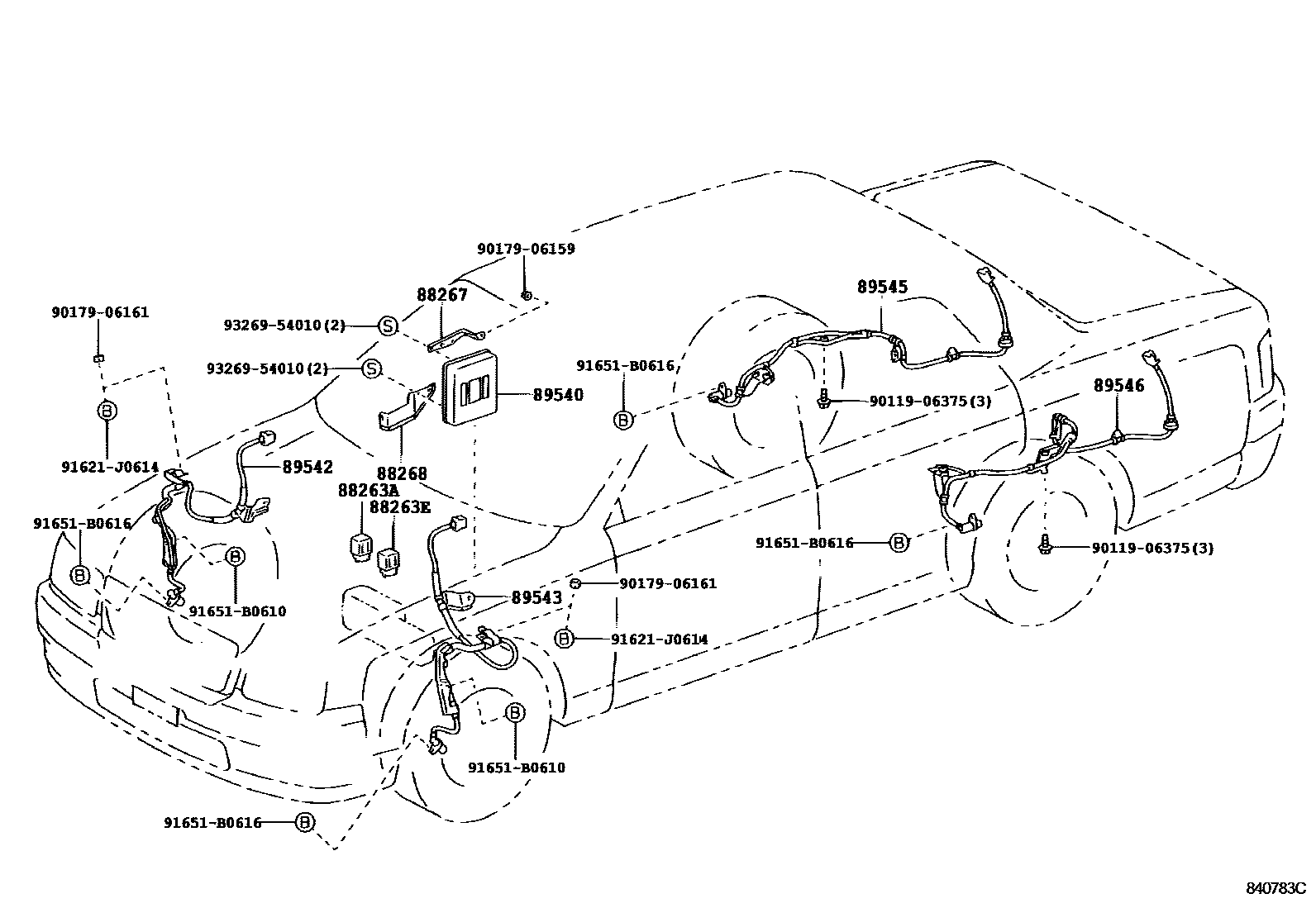

16 parts on this diagram · 3 diagrams in section
