Toyota CENTURY — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 1/2 0004 1ENGINE 2/2 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH TENSION CABLE 0009 1SEAT 0010 1CLAMP & BRACKET 0011 1CLAMP & BRACKET 0012 1CONNECTOR

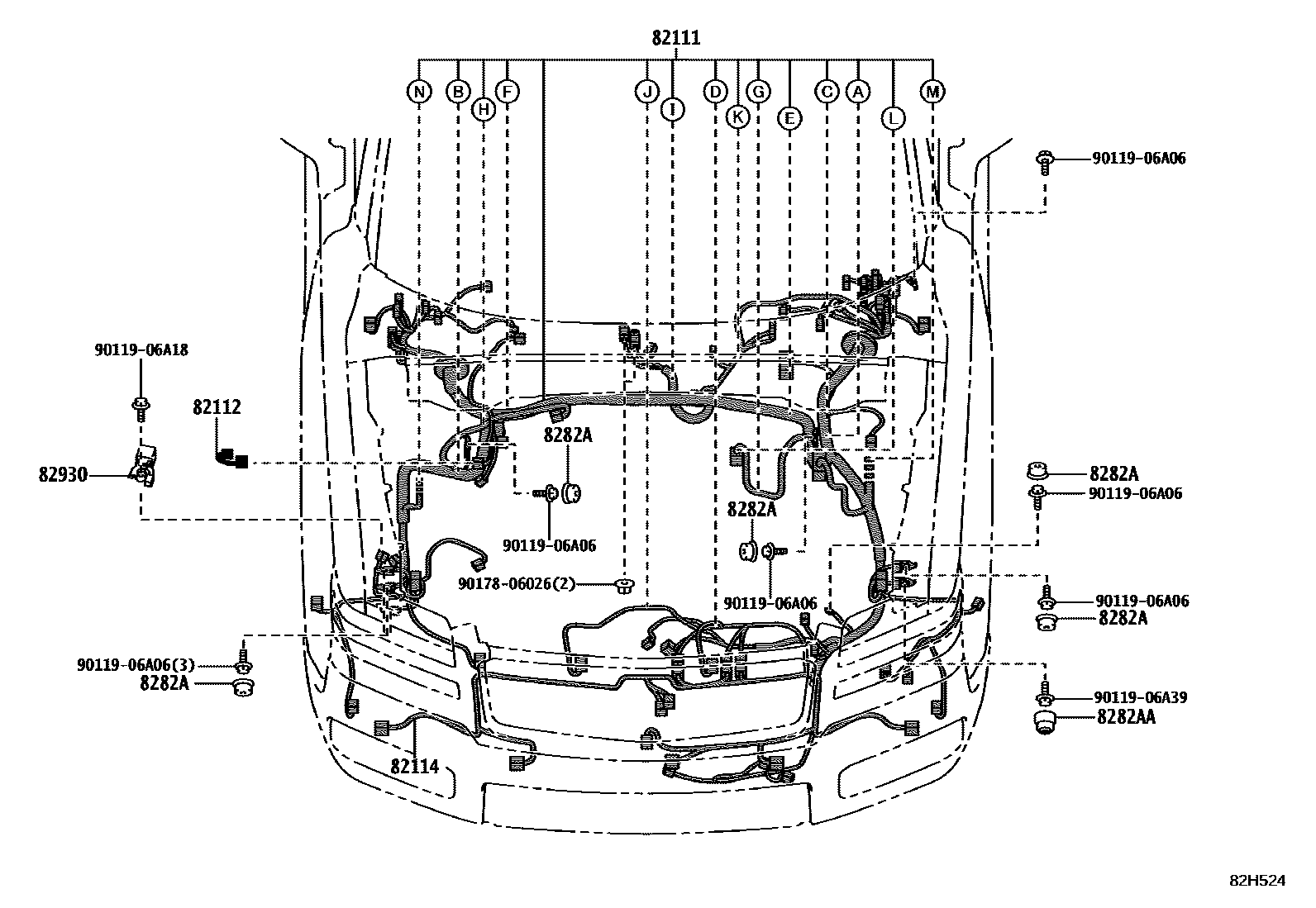

82111WIRE, ENGINE ROOM MAIN

main82111-40280iGRG75202310

82112WIRE, ENGINE ROOM, NO.2

main82112-40030iGRG75¥540202310

82114WIRE, ENGINE ROOM, NO.4

main82114-40020iGRG75¥5,700202310

8282ACAP, EARTH BOLT, NO.1

main8282A-52010iGRG75¥60202310

8282AACAP, EARTH BOLT, NO.2

main8282A-52020iGRG75202310

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-48050iGRG75¥4,540202310

9011906A06

main90119-06A06¥60

9011906A18

main90119-06A18¥80

9011906A39

main90119-06A39¥80

9017806026

main90178-06026¥80

10 parts on this diagram · 12 diagrams in section
