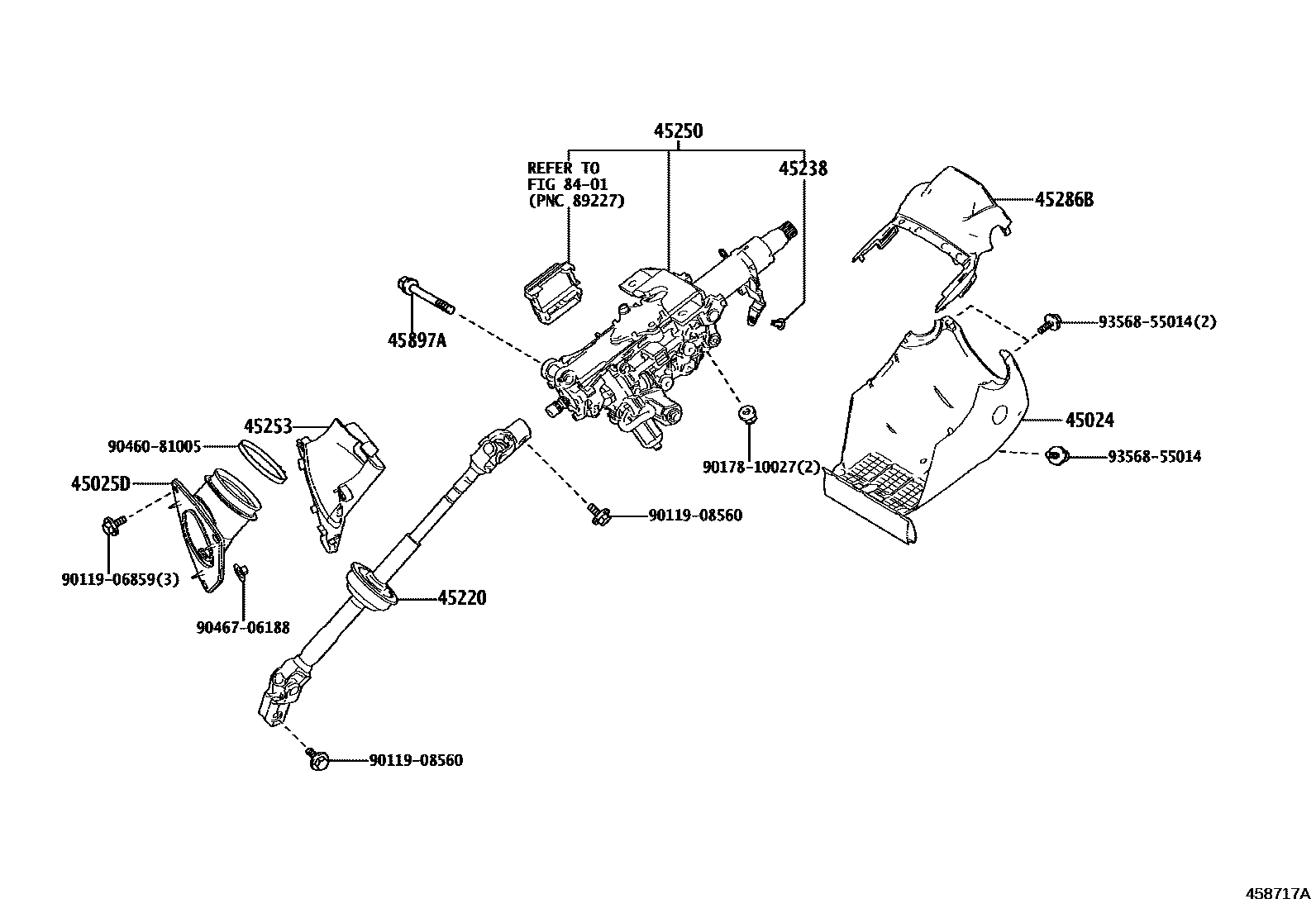

Toyota CENTURY — STEERING COLUMN & SHAFT

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-48110-C0iGRG75202310

BLACK,TRIM0#,2#,4#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0E100iGRG75202310

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0E140iGRG75202310

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iGRG75¥70202310

45250COLUMN ASSY, STEERING

main45250-48430iGRG75¥101,000202310

45253COVER, STEERING COLUMN HOLE

main45253-0E130iGRG75202310

45286BCOVER, STEERING COLUMN, UPR

main45286-48100-C0iGRG75202310

BLACK,TRIM0#,2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-10A34iGRG75¥190202310

8401

9011906859

main90119-06859¥130

9011908560

main90119-08560¥110

9017810027

main90178-10027¥100

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

9356855014

main93568-55014¥70

15 parts on this diagram · 1 diagram in section
