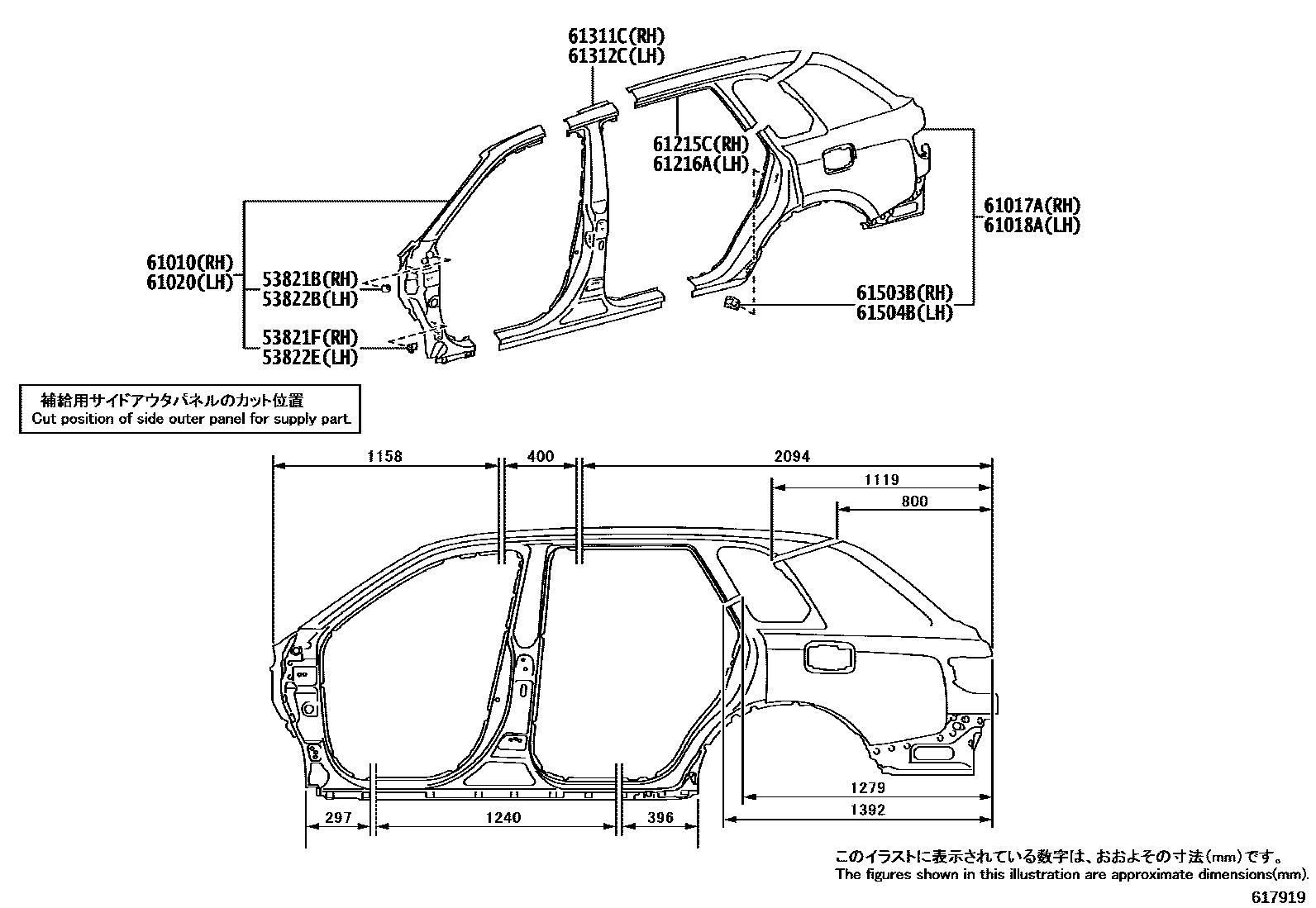

Toyota CENTURY — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iGRG75¥280202310

53821FBRACKET, FRONT FENDER, REAR NO.2 RH

main53821-75020iGRG75¥270202310

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iGRG75¥280202310

53822EBRACKET, FRONT FENDER, REAR NO.2 LH

main53821-75020iGRG75¥270202310

61010MEMBER ASSY, SIDE, RH

main61010-40010iGRG75¥22,000202310

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-40010iGRG75¥89,300202310

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-40010iGRG75¥89,300202310

61020MEMBER ASSY, SIDE, LH

main61020-40010iGRG75¥22,000202310

61215CRAIL, ROOF SIDE, OUTER REAR RH

main61215-40010iGRG75¥8,900202310

61216ARAIL, ROOF SIDE, OUTER REAR LH

main61216-40010iGRG75¥8,900202310

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-40050iGRG75¥23,400202310

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-40050iGRG75¥23,400202310

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-40040iGRG75¥2,120202310

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-40040iGRG75¥2,120202310

14 parts on this diagram · 3 diagrams in section
