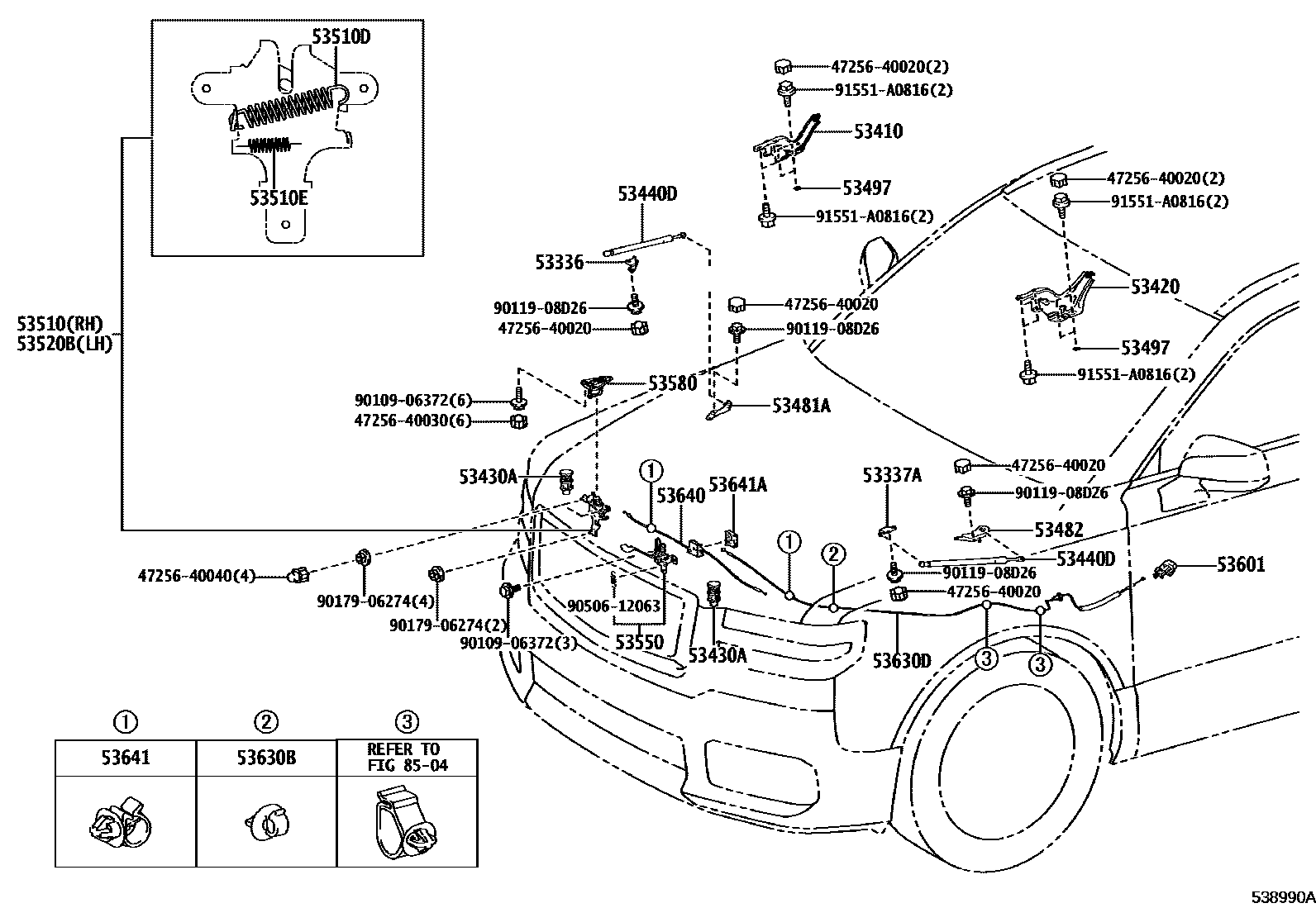

Toyota CENTURY — HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-78010iGRG75¥240202310

53337ABRACKET, HOOD STAY, LH

main53337-78010iGRG75¥240202310

53410HINGE ASSY, HOOD, RH

main53410-40110iGRG75¥3,210202310

53420HINGE ASSY, HOOD, LH

main53420-40110iGRG75¥3,210202310

53430ASPRING, TENSION(FOR HOOD SUPPORT)

main53590-40010iGRG75¥1,350202310

53440DSUPPORT ASSY, HOOD

main53440-0W560iGRG75¥9,300202310

53481ABRACKET, HOOD SUPPORT, RH

main53481-40040iGRG75¥480202310

53482BRACKET, HOOD SUPPORT, LH

main53482-40030iGRG75¥480202310

53497PAD, HOOD HINGE, NO.1

main53497-50020iGRG75¥140202310

T=1.0

53510LOCK ASSY, HOOD

main53510-78050iGRG75¥2,010202310

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-10048iGRG75¥80202310

WD=1.0,CW=14

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGRG75¥90202310

WD=0.9,CW=21

53520BLOCK ASSY, HOOD, LH

main53520-78020iGRG75¥2,930202310

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-40020iGRG75¥5,700202310

53580STRIKER ASSY, HOOD LOCK

main53580-78010iGRG75¥3,240202310

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-A3iGRG75202310

FROMAGE,TRIM0#

main53601-30110-C0iGRG75202310

BLACK,TRIM2#

main53601-30110-E2iGRG75202310

MD.BROWN,TRIM40

main53601-30110-E3iGRG75202310

SUNFLARE BROWN,TRIM41

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iGRG75¥80202310

53630DSET, CABLE & LEVER, HOODLOCK CONTROL

main53630-40060iGRG75¥990202310

53640JUNCTION ASSY, HOOD LOCK CONTROL

main53640-40010iGRG75¥2,390202310

53641CLAMP, HOOD LOCK CONTROL WIRE

main82711-1E260iGRG75¥80202310

53641ACOVER, HOOD LOCK CONTROL

main53641-78010iGRG75¥460202310

8504

4725640020GROMMET, CAP

main47256-40020¥60

4725640030GROMMET, CAP

main47256-40030¥50

4725640040GROMMET, CAP

main47256-40040¥110

9010906372

main90109-06372¥60

9011908D26

main90119-08D26¥80

9017906274

main90179-06274¥70

9050612063

main90506-12063¥90

91551A0816

main91551-A0816¥80

30 parts on this diagram · 1 diagram in section
