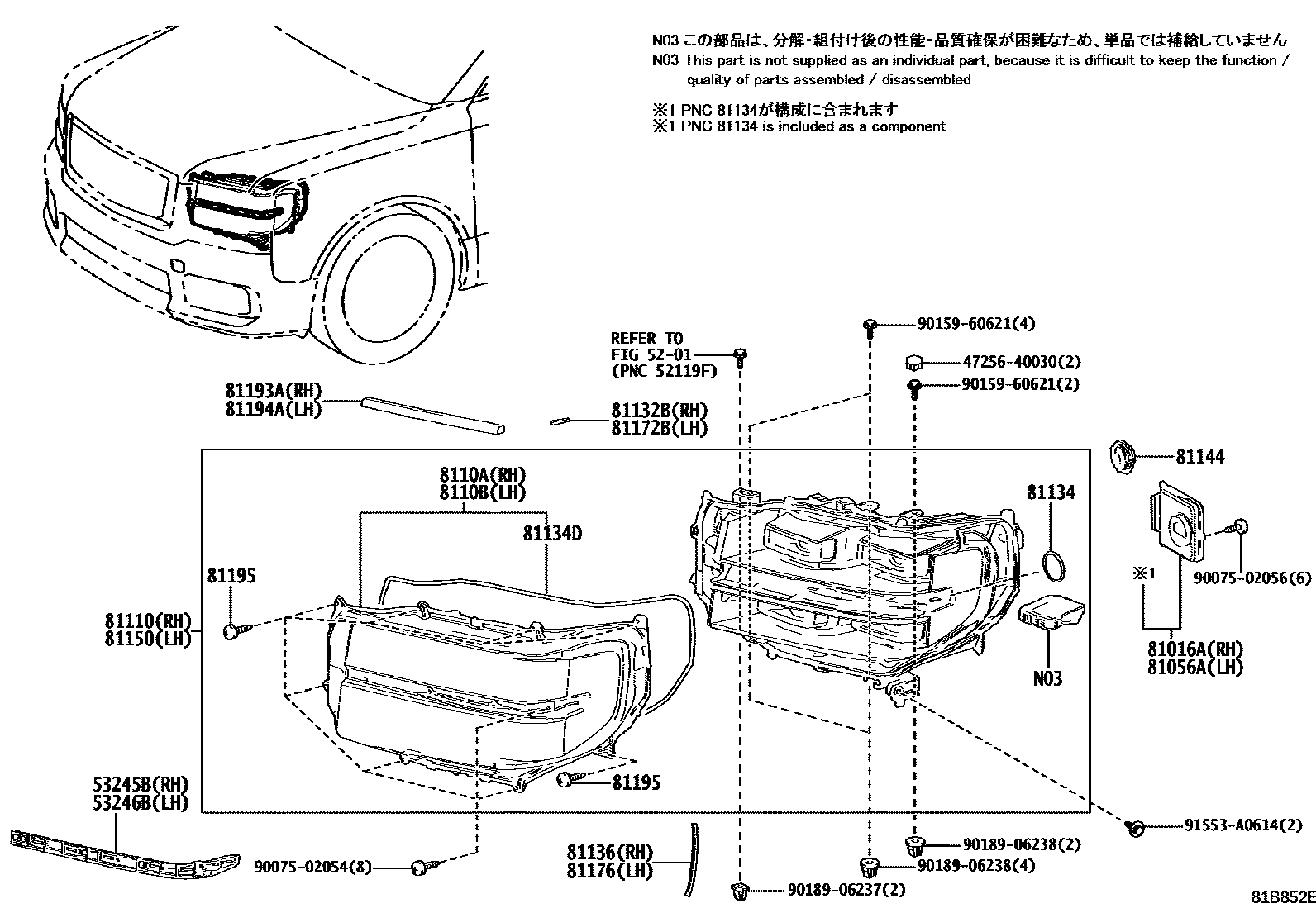

Toyota CENTURY — HEADLAMP

5201

53245BBRACKET, HEADLAMP, RH

main52533-40040iGRG75¥1,850202310

53246BBRACKET, HEADLAMP, LH

main52534-40020iGRG75¥1,850202310

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-40130iGRG75¥34,300202310

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-40130iGRG75¥34,300202310

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-40140iGRG75202310

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-40140iGRG75202310

81110HEADLAMP ASSY, RH

main81145-40140iGRG75202310

81132BGASKET, HEADLAMP LENS

main81132-40130iGRG75¥120202310

81134GASKET, HEADLAMP

main90075-23003iGRG75¥200202310

81134DGASKET, HEADLAMP, NO.2

main81132-48C30iGRG75¥2,230202310

81136PROTECTOR, HEADLAMP, NO.1 RH

main81117-40140iGRG75¥70202310

81144COVER, HEADLAMP, NO.1

main90075-66016iGRG75¥610202310

81150HEADLAMP ASSY, LH

main81185-40140iGRG75202310

81172BGASKET, HEADLAMP LENS

main81132-40130iGRG75¥120202310

81176PROTECTOR, HEADLAMP, NO.1 LH

main81117-40140iGRG75¥70202310

81193APROTECTOR, HEADLAMP, RH

main81117-40130iGRG75¥1,270202310

81194APROTECTOR, HEADLAMP, LH

main81157-40130iGRG75¥1,270202310

81195SCREW, HEADLAMP

main90075-02060iGRG75¥60202310

4725640030GROMMET, CAP

main47256-40030¥50

9007502054

main90075-02054¥70

9007502056

main90075-02056¥60

9015960621

main90159-60621¥60

9018906237

main90189-06237¥100

9018906238

main90189-06238¥100

91553A0614

main91553-A0614¥60

26 parts on this diagram · 1 diagram in section
