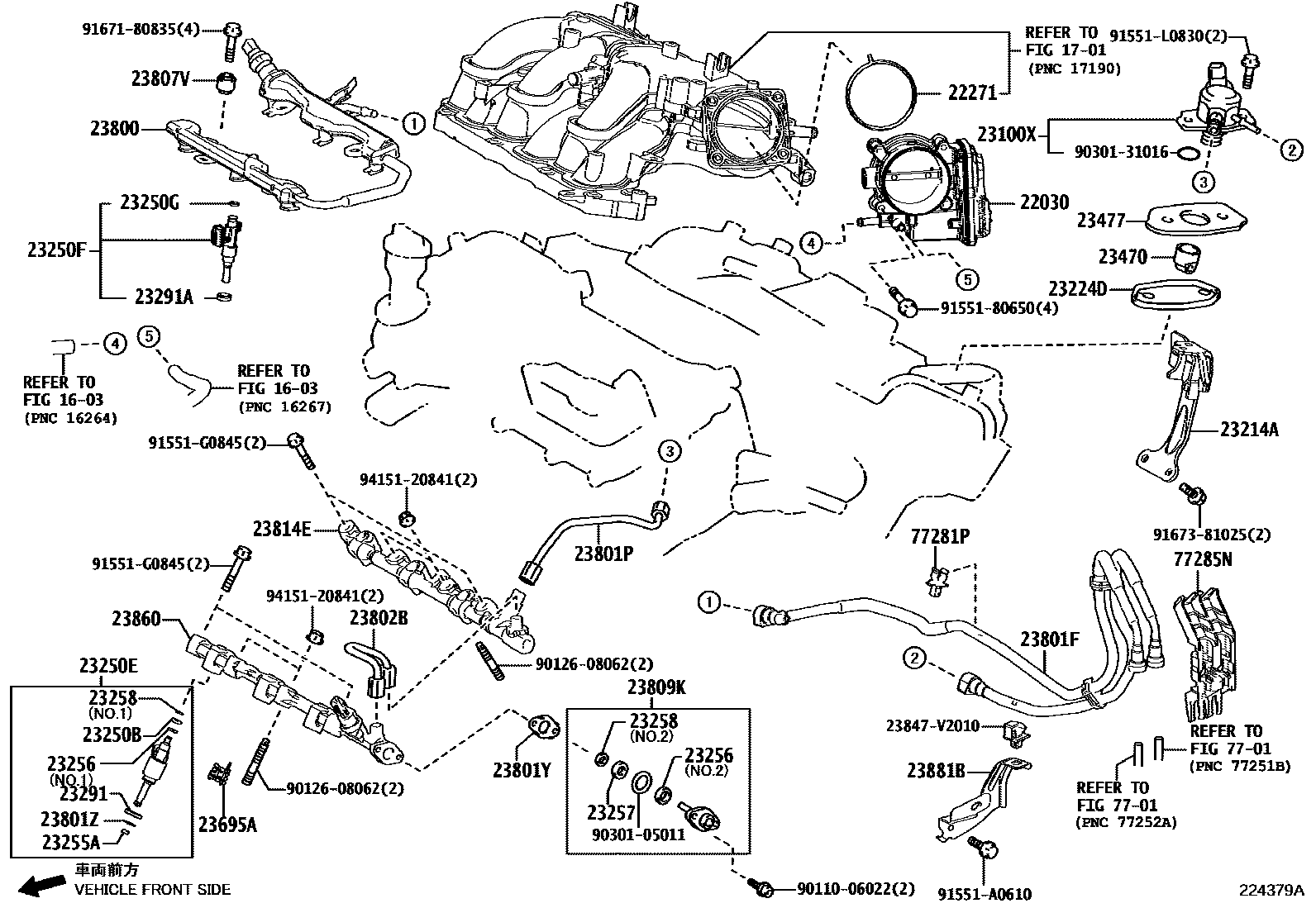

Toyota CENTURY — FUEL INJECTION SYSTEM
1603
1701
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23250GRING, O, NO.2(FOR FUEL INJECTOR)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.2
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
NO.2
NO.1
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23800PIPE ASSY, FUEL DELIVERY W/SENSOR
23801FHOSE, FUEL, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23801YGASKET
23801ZRING, SNAP(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809KPLUG SUB-ASSY, FUEL PIPE
23814EPIPE, FUEL DELIVERY, RH
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
23881BBRACKET, FUEL HOSE
7701
77281PCLAMP, FUEL HOSE
77285NCLAMP, FUEL TUBE, NO.1
23847V2010CLAMP, FUEL PIPE(HOSE), NO.4
9011006022
9012608062
9030105011
9030131016
9155180650
91551A0610
91551G0845
91551L0830
9167180835
9167381025
9415120841
46 parts on this diagram · 1 diagram in section
