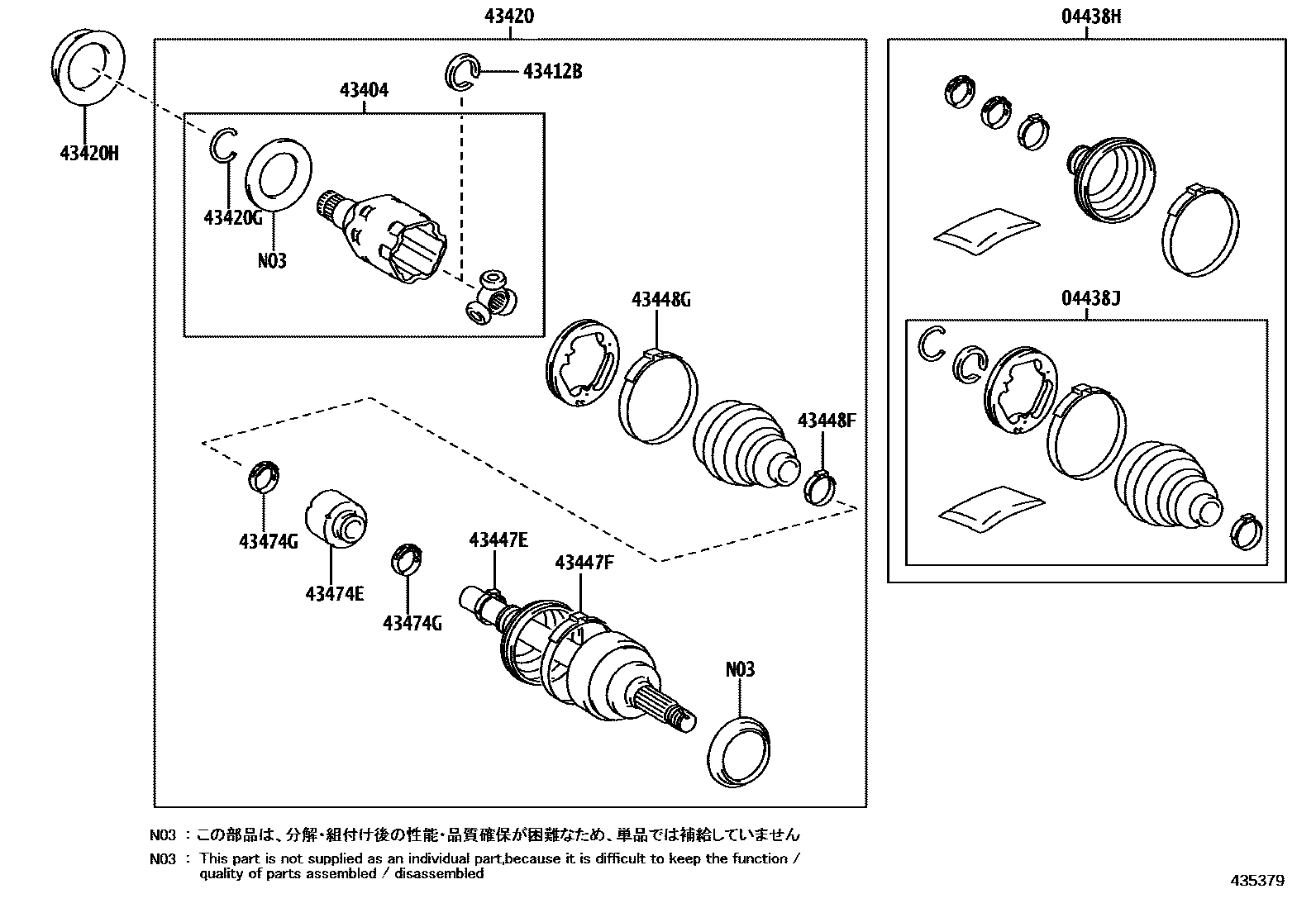

Toyota CENTURY — FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-40010iGRG75¥7,700202310

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-40010iGRG75¥5,100202310

43404JOINT SET, FRONT AXLE INBOARD, LH

main43404-40010iGRG75¥14,900202310

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-24010iGRG75¥40202310

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-40010iGRG75¥48,400202310

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iGRG75¥100202310

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50059iGRG75¥610202310

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-24020iGRG75¥400202310

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K120iGRG75202310

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-24020iGRG75¥400202310

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-42160iGRG75¥700202310

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-40010iGRG75¥3,870202310

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-06790iGRG75¥190202310

13 parts on this diagram · 2 diagrams in section
