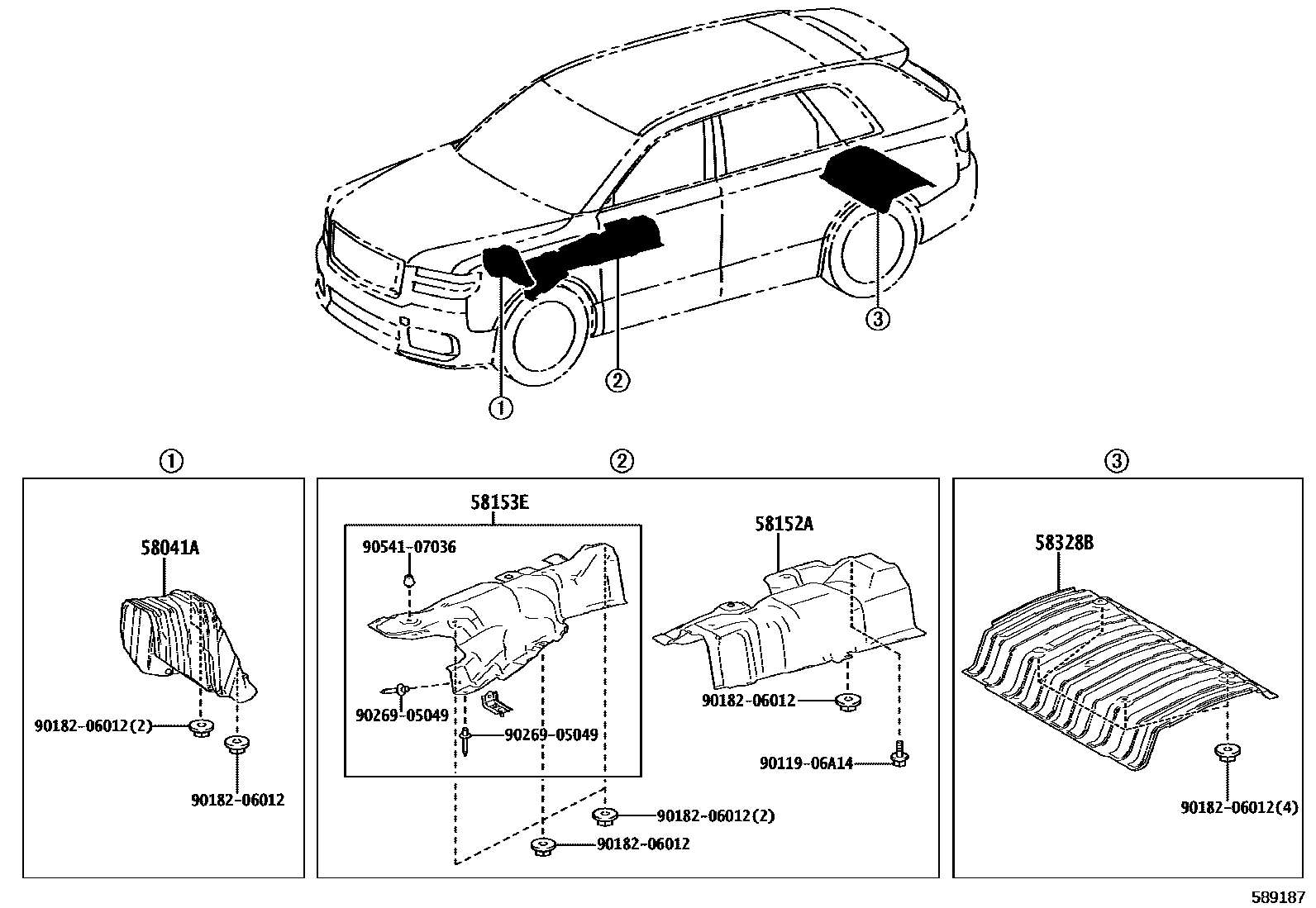

Toyota CENTURY — FLOOR INSULATOR

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-40030iGRG75¥28,300202310

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-48060iGRG75¥7,700202310

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-40010iGRG75¥11,100202310

58328BINSULATOR, MAIN MUFFLER HEAT, LOWER

main58328-0E060iGRG75¥5,300202310

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9026905049

main90269-05049¥40

9054107036

main90541-07036¥110

8 parts on this diagram · 1 diagram in section
