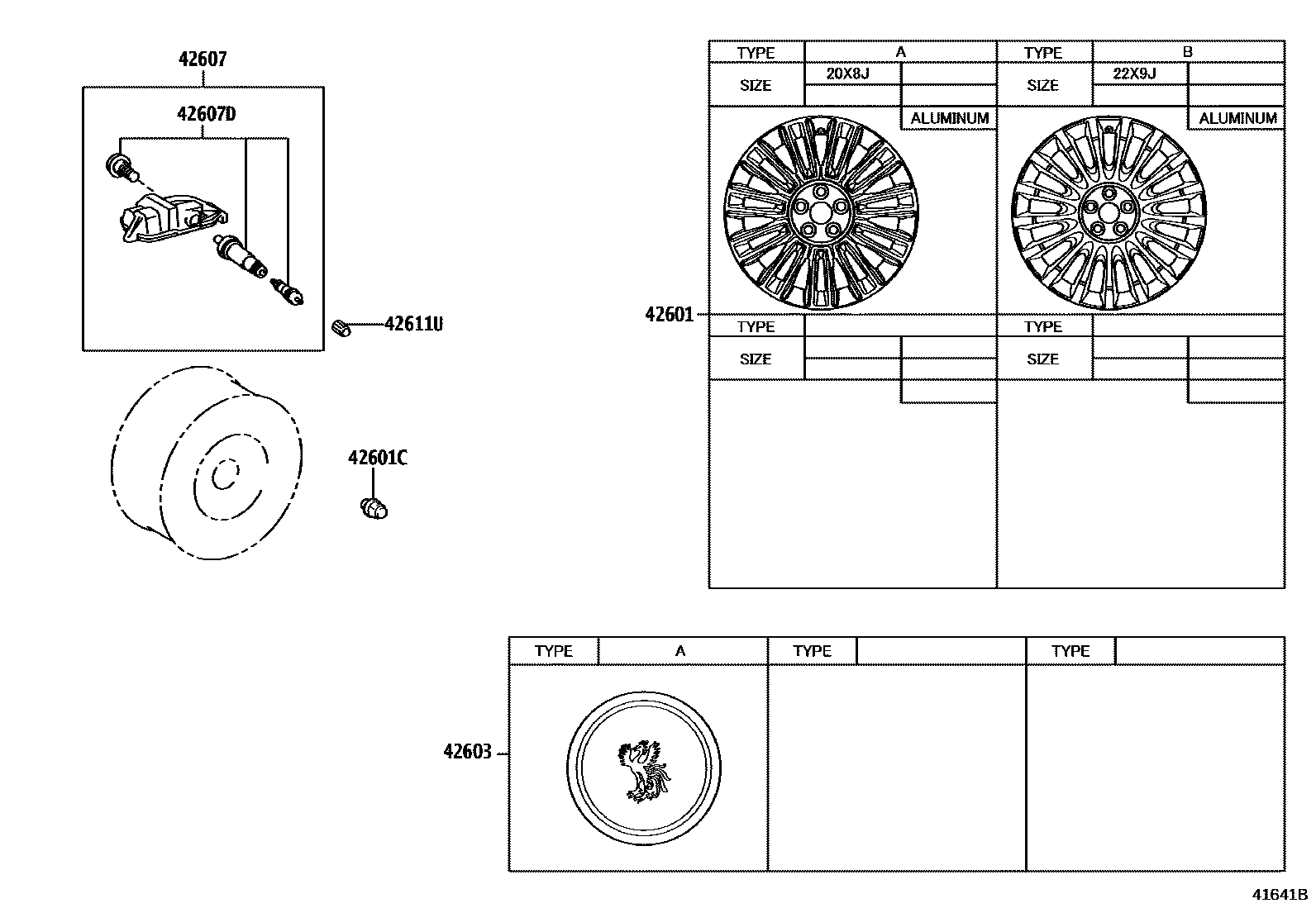

Toyota CENTURY — DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-40101iGRG75¥73,600202310

22X9J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01121iGRG75¥490202310

42603ORNAMENT SUB-ASSY, WHEEL HUB

main4260B-40010-B0iGRG75202310

*ALU,SILVER,090 ,1M3 ,212 ,M31 ,M32 ,M33 ,M34 ,M41,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-76030iGRG75202310

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05051iGRG75¥530202310

42611UCAP, TIRE VALVE

main90942-05039iGRG75¥90202310

6 parts on this diagram · 2 diagrams in section
