Toyota CENTURY — CRANKSHAFT & PISTON

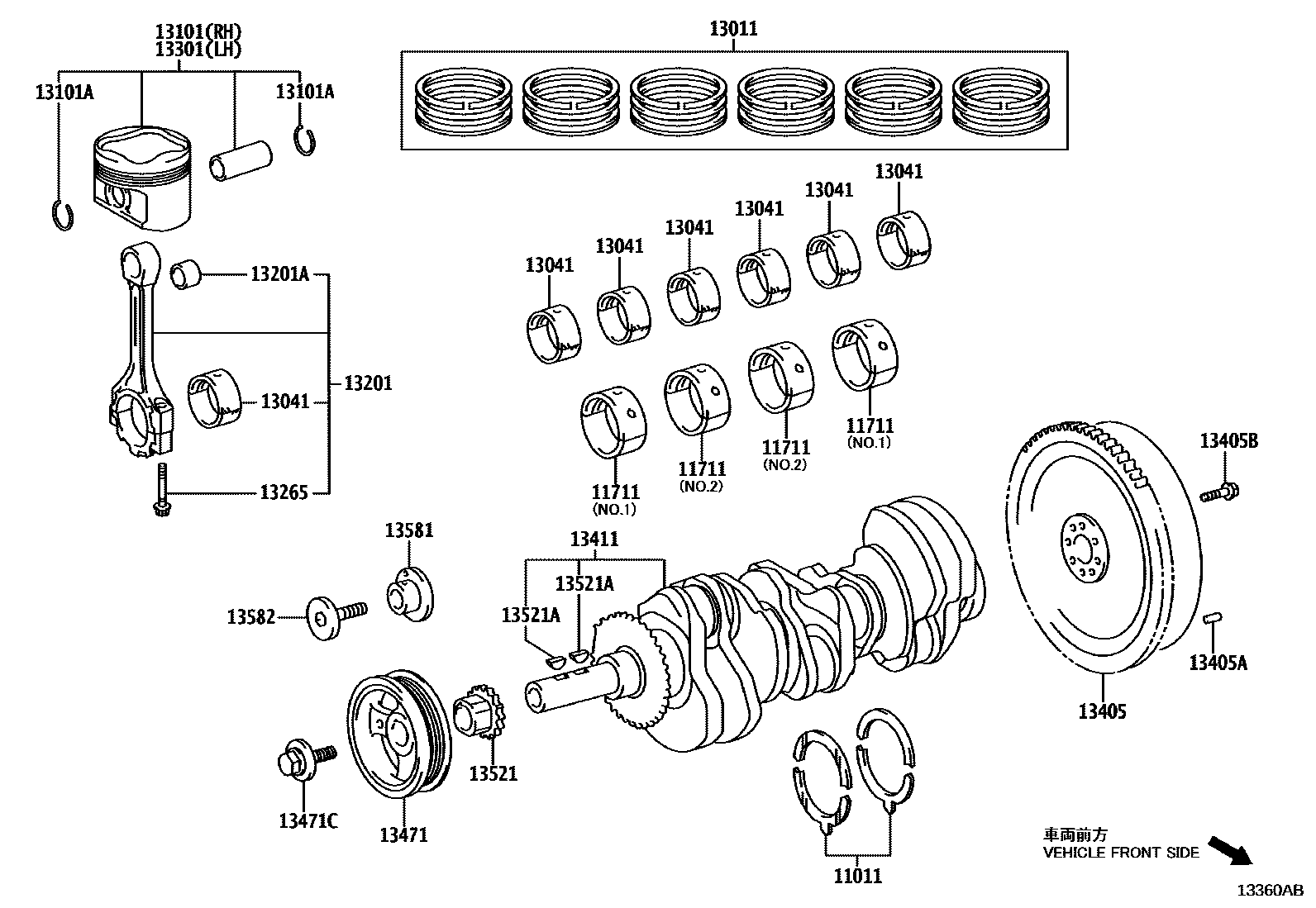

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-31080i¥1,300202310

STD

11711BEARING, CRANKSHAFT

main11071-31060-A1i202310

MARK UPPER 1 LOWER 1,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-A2i202310

MARK UPPER 1 LOWER 2,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-B2i202310

MARK UPPER 2 LOWER 2,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-B3i202310

MARK UPPER 2 LOWER 3,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-C3i202310

MARK UPPER 3 LOWER 3,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-C4i202310

MARK UPPER 3 LOWER 4,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-D4i202310

MARK UPPER 4 LOWER 4,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-D5i202310

MARK UPPER 4 LOWER 5,NO.2,REFER R/M

sub11071-31060¥2,690

main11071-31060-E5i202310

MARK UPPER 5 LOWER 5,NO.2,REFER R/M

sub11071-31060¥2,690

main11701-31100-A1i202310

MARK UPPER 1 LOWER 1,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-A2i202310

MARK UPPER 1 LOWER 2,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-B2i202310

MARK UPPER 2 LOWER 2,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-B3i202310

MARK UPPER 2 LOWER 3,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-C3i202310

MARK UPPER 3 LOWER 3,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-C4i202310

MARK UPPER 3 LOWER 4,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-D4i202310

MARK UPPER 4 LOWER 4,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-D5i202310

MARK UPPER 4 LOWER 5,NO.1,REFER R/M

sub11701-31100¥2,850

main11701-31100-E5i202310

MARK UPPER 5 LOWER 5,NO.1,REFER R/M

sub11701-31100¥2,850

13011RING SET, PISTON

main13011-31290i¥16,100202310

STD

13041BEARING, CONNECTING ROD

main13041-31100-01i202310

MARK 1,REFER REPAIR MANUAL

main13041-31100-02i202310

MARK 2,REFER REPAIR MANUAL

main13041-31100-03i202310

MARK 3,REFER REPAIR MANUAL

main13041-31100-04i202310

MARK 4,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-31181-A0i202310

STD,MARK A,REFER REPAIR MANUAL

main13101-31181-B0i202310

STD,MARK B,REFER REPAIR MANUAL

main13101-31181-C0i202310

STD,MARK C,REFER REPAIR MANUAL

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i¥110202310

13201ROD SUB-ASSY, CONNECTING

main13201-39285-A0i202310

MARK A,REFER REPAIR MANUAL

main13201-39285-B0i202310

MARK B,REFER REPAIR MANUAL

main13201-39285-C0i202310

MARK C,REFER REPAIR MANUAL

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144i¥160202310

13265BOLT, CONNECTING ROD

main13265-28020i¥300202310

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31111-A0i202310

STD,MARK A,REFER REPAIR MANUAL

main13301-31111-B0i202310

STD,MARK B,REFER REPAIR MANUAL

main13301-31111-C0i202310

STD,MARK C,REFER REPAIR MANUAL

13405FLYWHEEL SUB-ASSY

main13405-31131i¥20,100202310

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i¥120202310

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10048i¥130202310

13411CRANKSHAFT

main13401-31070i¥106,000202310

*497

sub13401-31080¥96,100

main13401-31080i¥96,100202310

*714

13471PULLEY, CRANKSHAFT

main13470-31080i¥7,800202310

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i¥490202310

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31070i¥1,300202310

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516i¥130202310

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i¥660202310

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i¥240202310

20 parts on this diagram · 1 diagram in section
