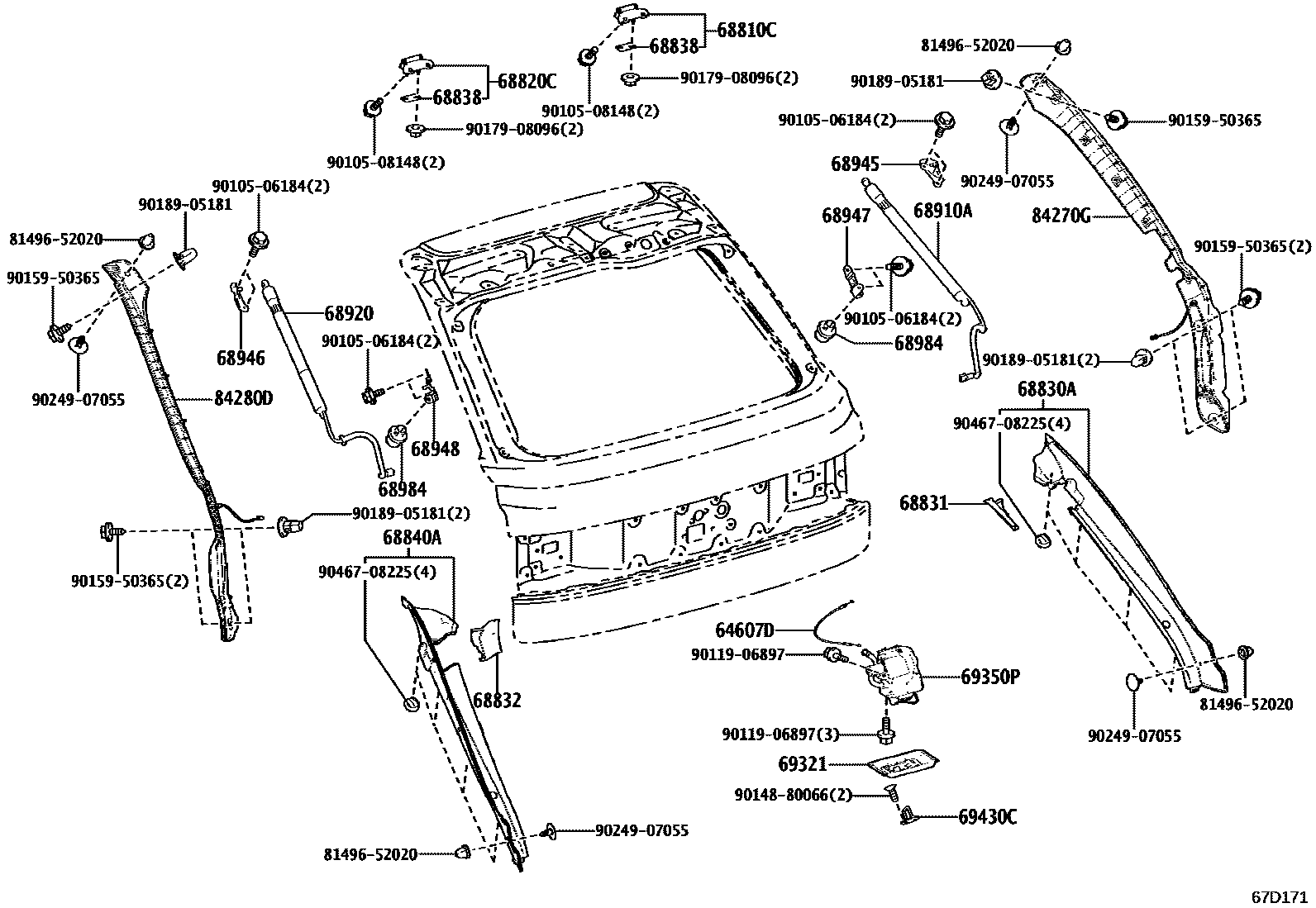

Toyota CENTURY — BACK DOOR LOCK & HANDLE
64607DCABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68810CHINGE ASSY, BACK DOOR, RH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.0
PAD T=1.5
PAD T=2.0
68830ACOVER, BACK DOOR HINGE, RH
68831COVER, BACK DOOR HINGE UPPER, RH
68832COVER, BACK DOOR HINGE UPPER, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
T=1.5
T=2.0
68840ACOVER, BACK DOOR HINGE, LH
68910AUNIT ASSY SET, POWER BACK DOOR, RH
68920UNIT ASSY SET, POWER BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68984STOPPER, BACK DOOR STAY
69321COVER, BACK DOOR LOCK
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
84270GSENSOR ASSY, POWER BACK DOOR, RH
84280DSENSOR ASSY, POWER BACK DOOR, LH
8149652020GUIDE, REAR COMBINATION LAMP
9010506184
9010508148
9011906897
9014880066
9015950365
9017908096
9018905181
9024907055
9046708225
30 parts on this diagram · 1 diagram in section
