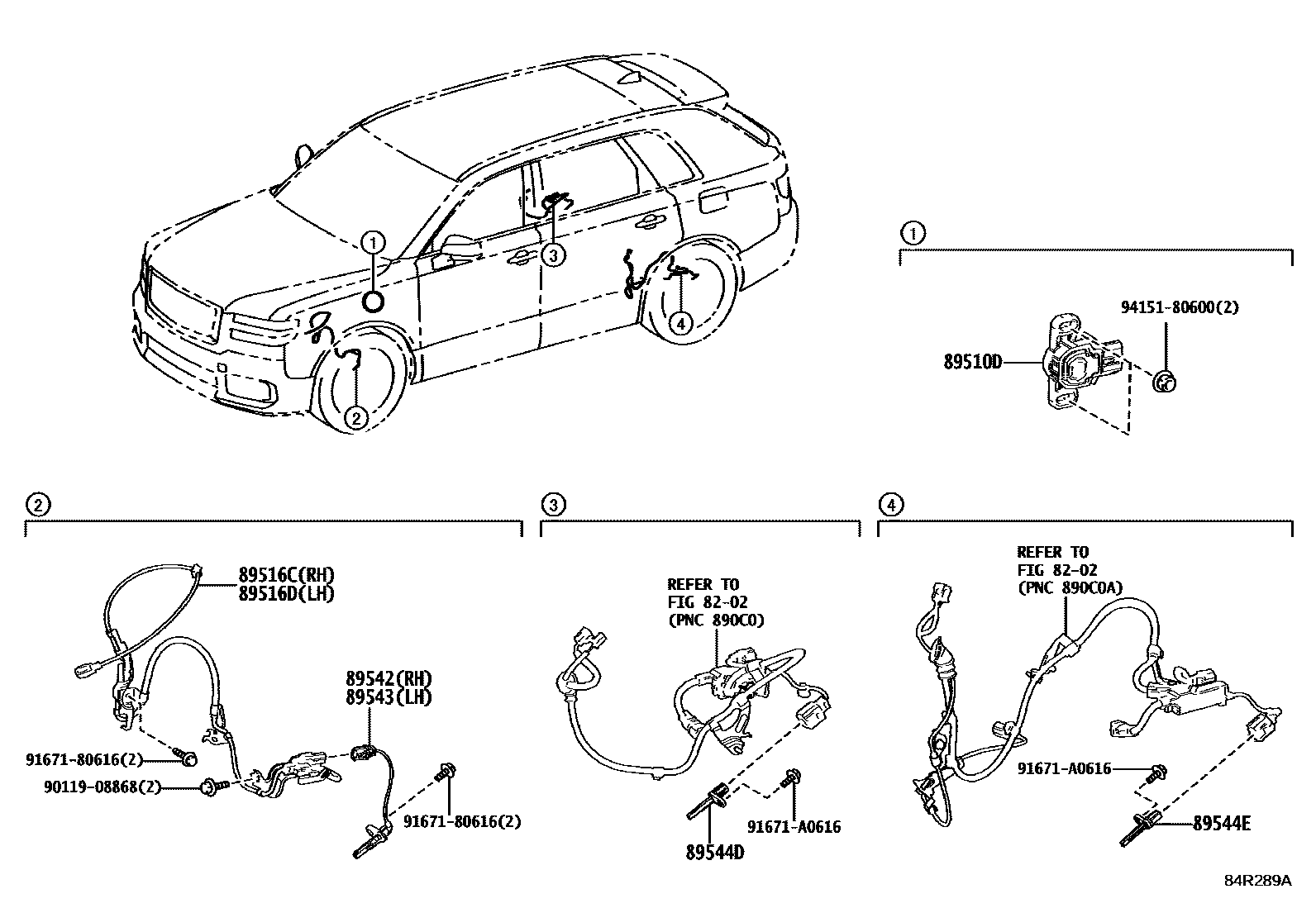

Toyota CENTURY — ABS & VSC

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iGRG75¥7,900202310

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-40010iGRG75¥4,640202310

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-40020iGRG75¥4,640202310

89542SENSOR, SPEED, FRONT RH

main89542-78041iGRG75¥8,100202310

89543SENSOR, SPEED, FRONT LH

main89543-78041iGRG75¥8,100202310

89544DSENSOR, SKID CONTROL, REAR RH

main89544-48051iGRG75¥1,850202310

89544ESENSOR, SKID CONTROL, REAR LH

main89544-48051iGRG75¥1,850202310

9011908868

main90119-08868¥70

9167180616

main91671-80616¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
