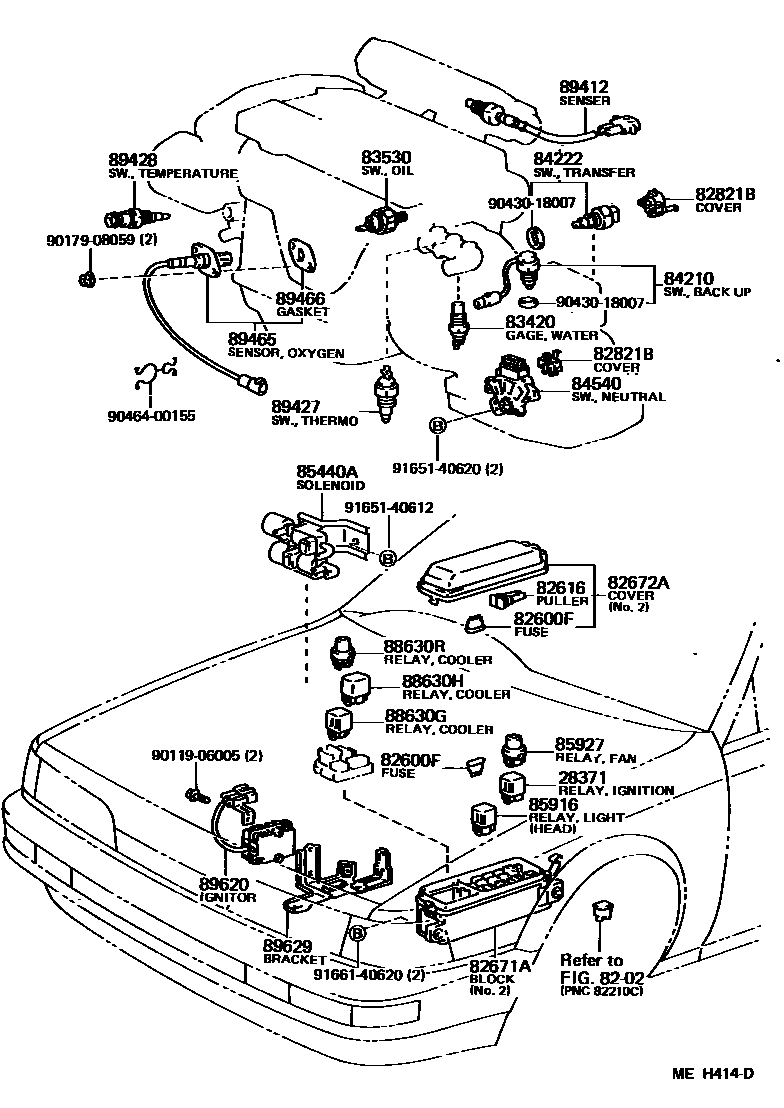

Toyota CAMRY — SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
10A
10A,10A
15A
15A,15A
20A,YELLOW
20A,YELLOW,20A
7.5A
7.5A,7.5A
82671ABLOCK, JUNCTION
NO.1
NO.1
NO.1
NO.1
NO.2
NO.2
82672ACOVER, JUNCTION BLOCK
NO.1
NO.1
NO.2
NO.2
NO.2
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84222SWITCH, TRANSFER INDICATOR, NO.1
84540SWITCH ASSY, NEUTRAL START
85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85916RELAY, LIGHT CONTROL
TAIL LAMP,DENSO
TAIL LAMP,DENSO
HEADLAMP
HEADLAMP
85927RELAY, COOLING FAN
88630GRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89412SENSOR, E.G.R GAS TEMPERATURE
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
89465SENSOR, OXYGEN
FR
CALIFORNIA SPEC,RR
89466GASKET, OXYGEN SENSOR
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
9011906005
9017908059
9043018007
9046400155
9165140612
9165140620
9166140620
32 parts on this diagram · 6 diagrams in section
