Toyota CAMRY — OIL FILTER

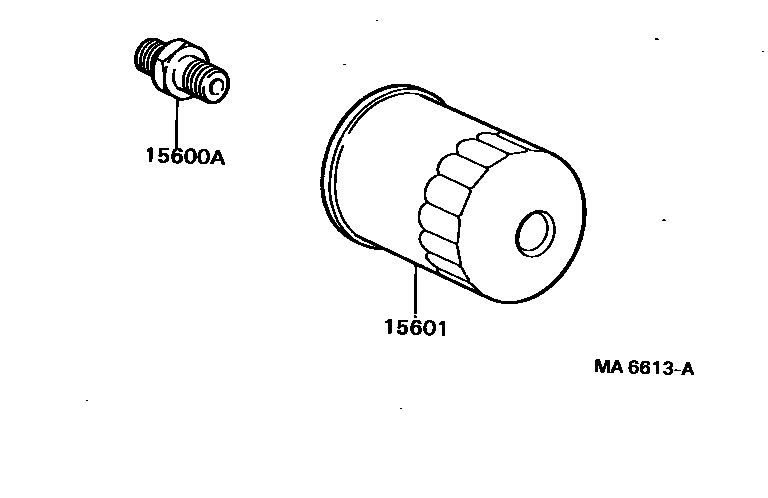

Parts diagram

15600AUNION(FOR OIL FILTER)

main90404-19002i¥380198608-198710

main90404-19002i¥380198710-198808

main90404-19011i¥320198802-198808

15601FILTER SUB-ASSY, OIL

main15601-13011i¥1,050198608-198710

sub90915-03001¥1,050

main90915-03001i¥1,050198710-198808

sub90915-10001¥1,050

main90915-03002i¥1,470198802-198808

sub90915-20001¥1,470

2 parts on this diagram · 2 diagrams in section
